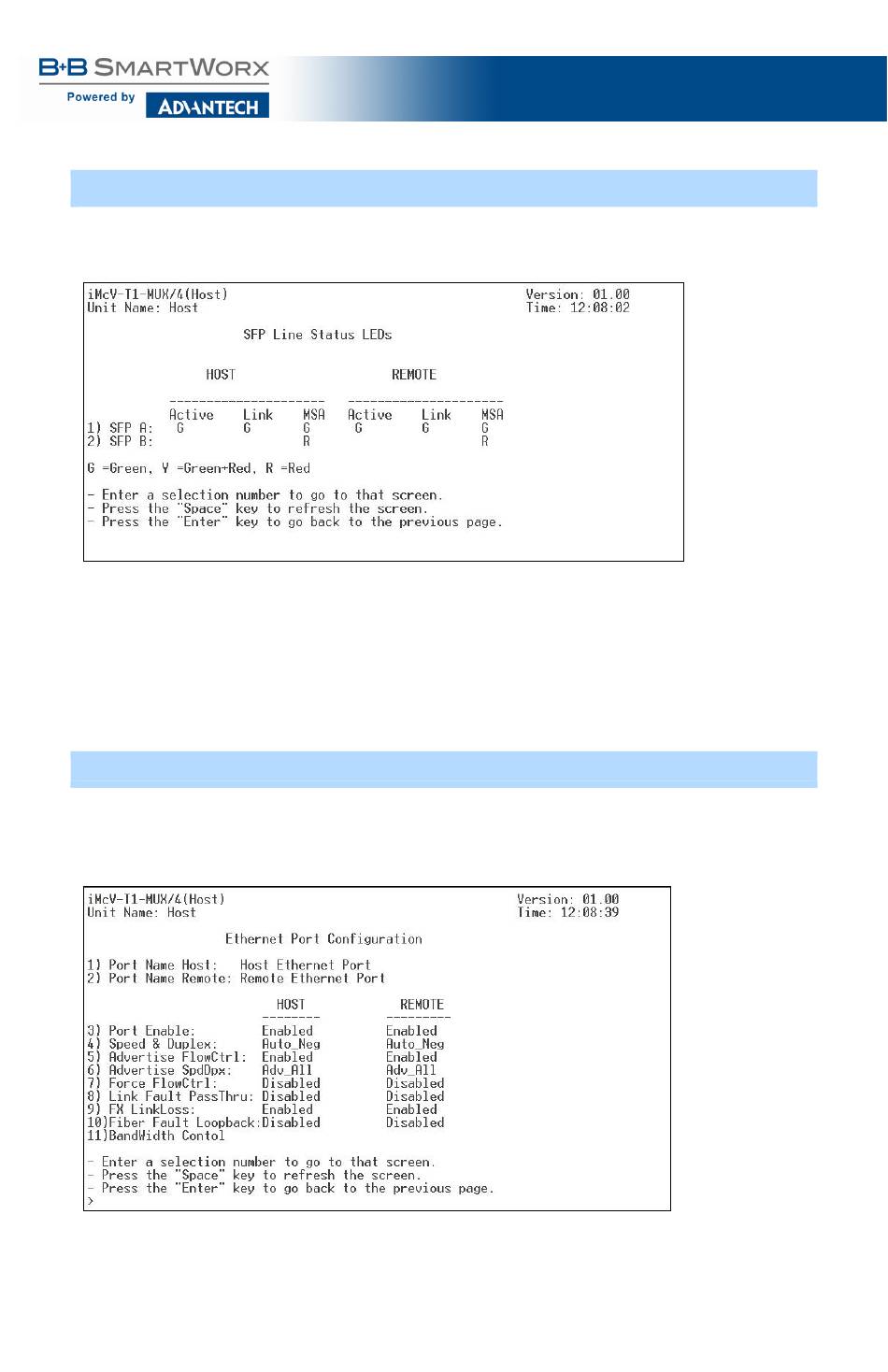

SFP LINE STATUS SCREEN
The SFP Line Status screen displays the status of the Host and Remote SFP
links.
Detailed SFP information may be viewed by entering "1" for SFP A,, or "2" for
SFP B. Displayed data includes the manufacturer name, code, part number
and revision number. Note: these values may not be modified.
For SFP modules that support DDMI values for temperature, voltage, diode
current and optical receive/transmit, levels can be obtained through SNMP
Management Module.
ETHERNET PORT CONFIGURATION SCREEN
The screen displays the current values for items 1 through 11 for both the
Host and Remote site. Enter the number of the menu item to change its
configuration, and then enter the new value(s) when prompted.
IE-iMcV-T1-Mux/4+Ethernet
21
