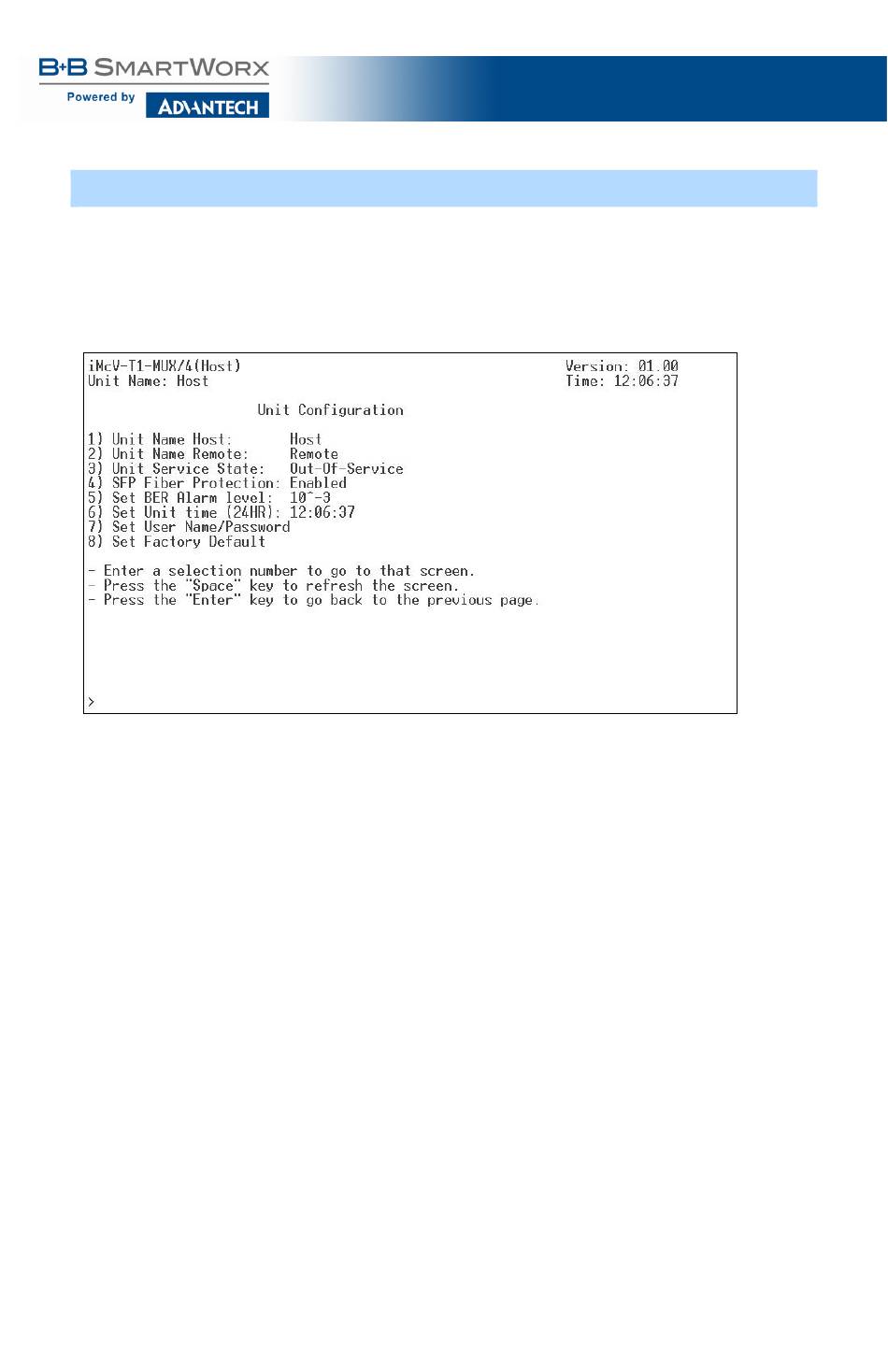

UNIT CONFIGURATION SCREEN

The unit configuration screen displays the names of the Host and Remote

units as well as the service state, whether fiber protection is enabled and the

SFP BER alarm level. In addition, the unit time can be set from this screen

and the username and password can be set/reset.

The screen displays the current status for items 1 through 8. For security

reasons, the current username and password are not displayed.

For items 1 through 8, enter the number of the menu item to be changed, and

then enter the new value when prompted. The unit and port names can be

assigned by the end-user and are used in SNMP associated TRAP alarm

messages.
