Installation

• Remove the packaging of the machine and assemble the trolley – Fig. A.
• Position the machine on the trolley, lifting it at the four lower corners.
• Remove the accessories of the machine, put under the smooth (1) – Fig. B.
• Fix the two brackets (3), insert the lexan smoothes (4) in the proper guides; the lean the rollers (2) in the
brackets – Fig. C.
• Verify that the characteristics of the electric power available are compatible with that of the machine, as
given on the identification plate on the back of the same.
• Connect the machine to a power point of the correct power, which is grounded and has a differential switch.
STARTING OFF
• Turn the lever (5) 90° to the right and acting on the handle (6) lift the piston (7) to set the cylinder (8) free
and to extract it – Fig. D.
• Remove the distributor (9) and the rollers (2) – Fig. E.
• Clean with care all the removed accessories.
CAUTION: the machine will run only if the safety microswitch is serviceable and perfectly positioned.
Operation
PRODUCTION OF SHEETS
The sheet that must be rolled up on the rollers may be prepared either with a sheeter or with a press couplet

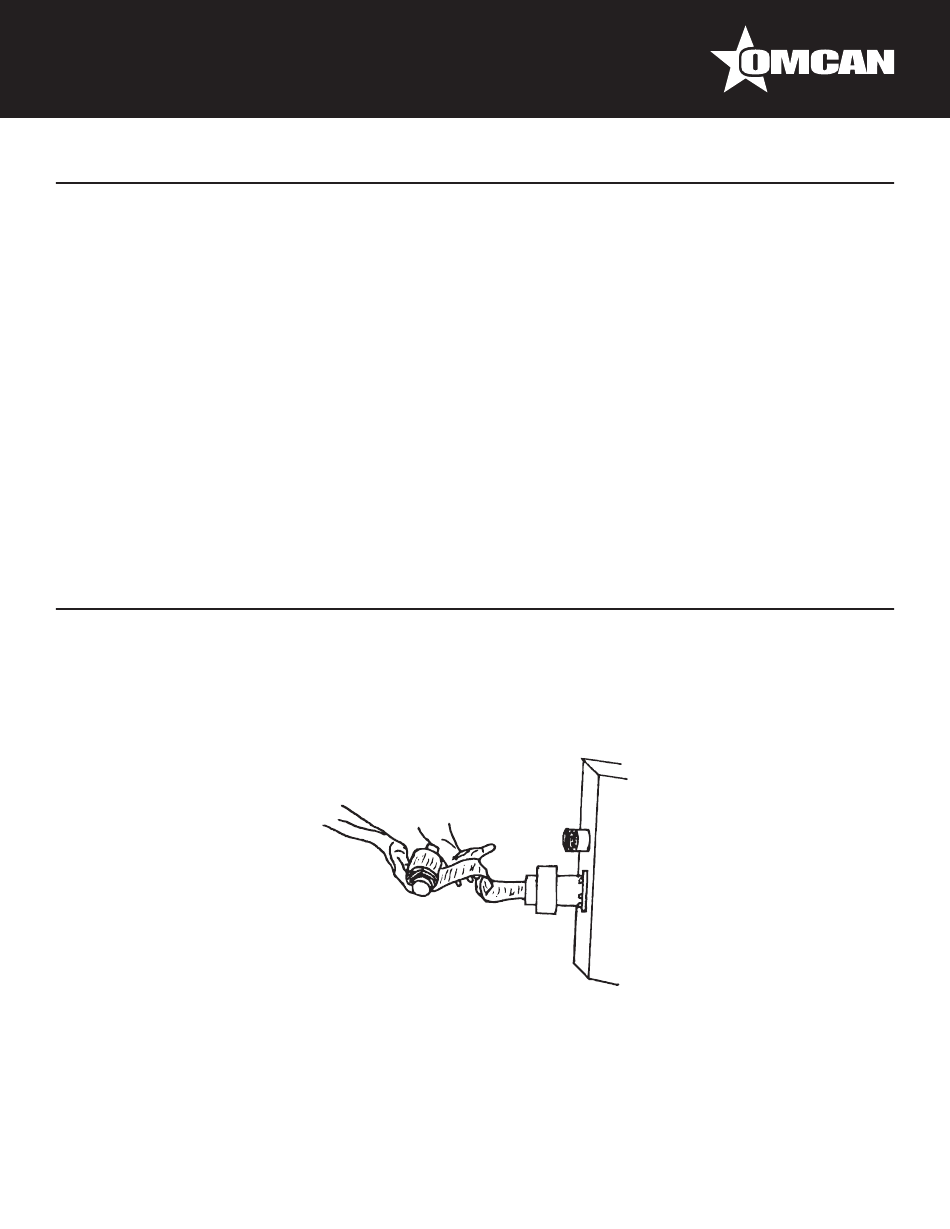

with the proper die. The sheet must be about 3 mm thick and 100 mm wide. In the below picture, you can see
the manual system to roll up the sheet on the rollers made with a press.
