Summary of Contents for Omcan PE-BR-0500

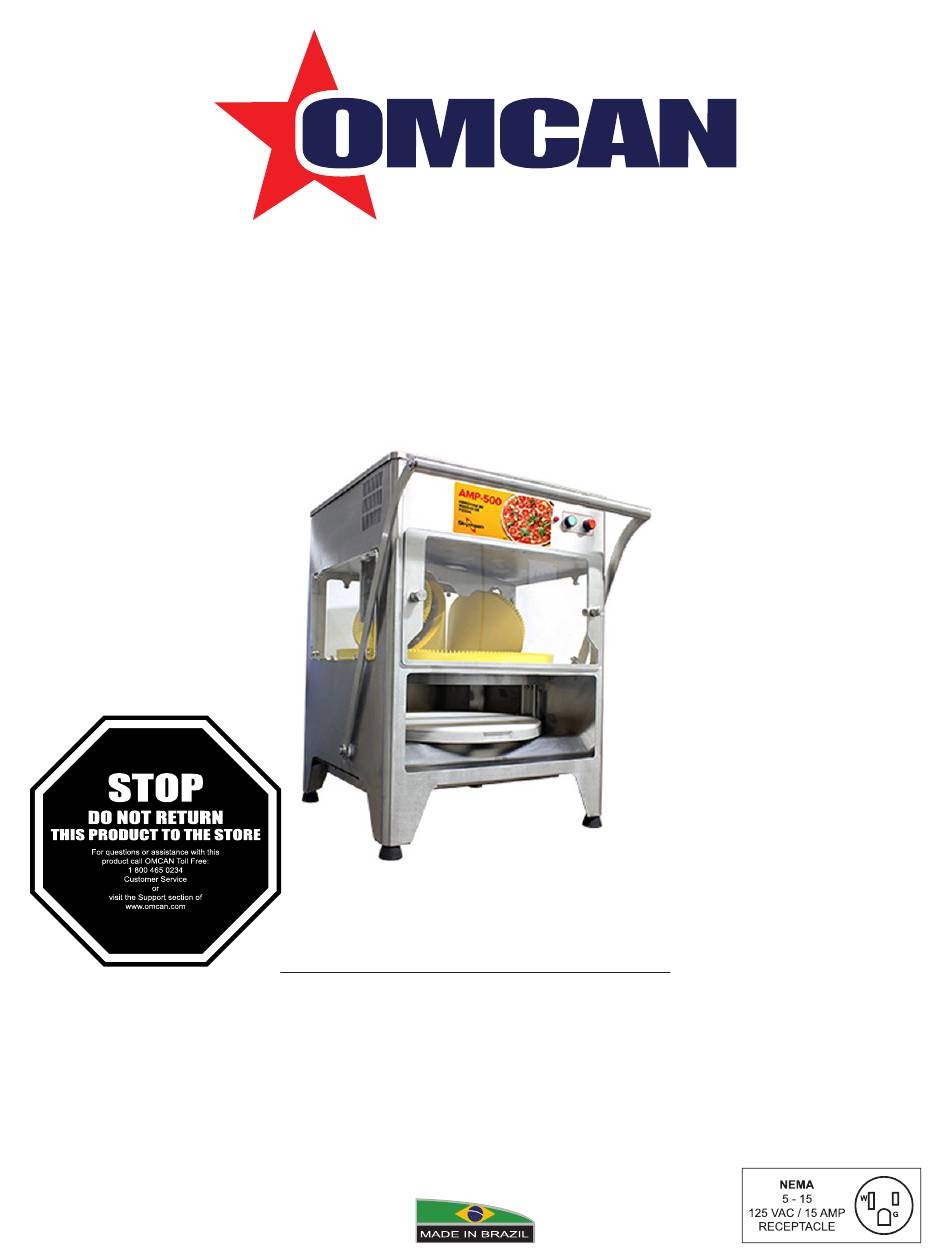

- Page 1 Pizza Dough Opener Model PE-BR-0500 Item 45763 Instruction Manual Revised - 11/07/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PE-BR-0500 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 8 Technical Specifications -------------------------------------------------------------------------- 8 Installation --------------------------------------------------------------------------------------- 8 - 9 Operation --------------------------------------------------------------------------------------- 9 - 10 Maintenance --------------------------------------------------------------------------------- 10 - 12 Troubleshooting... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Safety and Warranty • To prevent from the risk of an electric shock and damage to the equipment, never use it with wet clothing and feet on a wet or humid surface. Never dip it in water or any other liquid. Do not spray water directly upon the equipment.
- Page 6 IMPORTANT: Carefully read ALL INSTRUCTIONS of this manual before turning the machine ON. Be sure to be familiar with the instructions and that you have well understood all information contained in this manual. If you have any questions contact Omcan. DANGER An electric cable or electric wire with damaged jacket or bad insulation could cause electrical shocks as well as electrical leak.
- Page 7 Safety and Warranty pulleys and nor between the chain and the gears. PRECAUTIONS Check if motors and sliding or turning parts of the machine produce abnormal noises. Check the tension of the belts and chains and replace the set when belt or chain show signs of being worn out. When checking tensions of belts or chain DO NOT introduce your fingers between belts and pulleys, nor between the chains and gears.
-
Page 8: Technical Specifications
Safety and Warranty 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use. -
Page 9: Installation
Installation ELECTRICAL INSTALLATION Please verify the voltage informed on the label attached to the cord when you unpack it. The feeding cord has 3 pins, the central pin is for grounding. It is mandatory that all 3 pins are correctly connected before turning the equipment on. -
Page 10: Operation
Operation IMPORTANT: The dough thickness and diameter is a result of the dough ball size and the pressure you put on the handle during operation. Maintenance CLEANING AND SANITIZING IMPORTANT: Unplug the machine from socket before start cleaning. EQUIPMENT MUST BE TOTALLY CLEANED: •... -
Page 11: Maintenance
Maintenance CAUTIONS WITH STAINLESS STEEL The Stainless Steel may present rust signs, which are ALWAYS CAUSED BY EXTERNAL AGENTS, especially when the cleaning or sanitization is not constant and appropriate. The Stainless Steel resistance towards corrosion is mainly due to the presence of chrome, which in contact with oxygen allows the formation of a very thin protective coat. -
Page 12: Troubleshooting
Check if machine is plugged in and if there is power in the power sup- ply source. Problem with the electric circuits Call Omcan. Smoke smell or smoke. Problem in the electric circuit. Call Omcan. The machine switches ON but Problem with the electric motor. -
Page 13: Parts Breakdown
Parts Breakdown Model PE-BR-0500 45763... - Page 14 Parts Breakdown Model PE-BR-0500 45763...
- Page 15 Safety Iinstructions Label for AMP500 25434.7 67059 Roller for AMP500 56649.7 67023 Finishing Lining 550mm for AMP500 08978.8 27720 Omcan Logo (Machines) for AMP500 27154.3 67060 Reductor Support for AMP500 56903.8 Cord 3x1mm2C/PGRE 2PC1PR for 65887 09102.2 38344 PFS M4x8 DIN 933 INOX for AMP500 28253.7...
-
Page 16: Parts Breakdown
Parts Breakdown Model PE-BR-0500 45763 Item No. Description Position Item No. Description Position Item No. Description Position Complete Frontal Protection 500 for 67077 Screw 6,3x40 DIN 571 ZB for AMP500 58923.3 67094 60666.9 67111 Complete Frontal Protection for AMP500 63016.0... -
Page 17: Electrical Schematics
Electrical Schematics Model PE-BR-0500 45763... -
Page 18: Notes
Notes... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
