Related Manuals for Omcan PT-CN-1524-S-HC
Summary of Contents for Omcan PT-CN-1524-S-HC

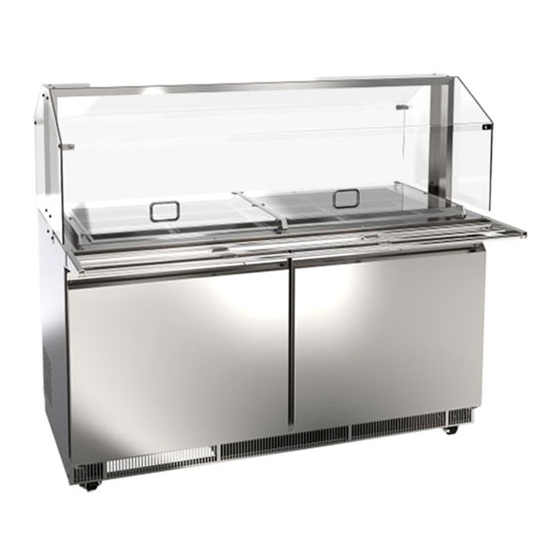

- Page 1 Refrigerated Prep Tables Models PT-CN-1524-S-HC, 1778-S-HC Items 50089, 50090 Instruction Manual Revised - 08/18/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model PT-CN-1524-S-HC / Model PT-CN-1778-S-HC Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Installation --------------------------------------------------------------------------------------- 8 - 9 Operation --------------------------------------------------------------------------------------- 9 - 10... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR... -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 Safety and Warranty PRECAUTIONS MUST BE FOLLOWED. CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED. CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
- Page 7 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 8: Technical Specifications
Technical Specifications Model PT-CN-1524-S-HC PT-CN-1778-S-HC Electrical 110V / 60Hz / 1 Power 540W 534W Current 5.4A 5.5A Refrigerant R290 Max Ambient Temp 24°C / 75°F Rating Temperature Range -0.5 to 0.5°C / 31 to 33°F Isolation Material Cyclopentane Cooling System... -
Page 9: Installation
Installation CABINET LOCATION GUIDELINES INSTALL THE UNIT ON STRONG AND LEVELED SURFACES • Unit may be noisy and/or malfunction if surface is uneven. INSTALL THE UNIT IN AN INDOOR, WELL-VENTILATED AREA • For best performance, please maintain clearance of 4” on the back of the unit. Brackets should be attached on the back of the unit. -
Page 10: Operation
Operation minimum temperature your unit will run at. Your unit will not run constantly at this setting. To change it, follow these instructions: DIGITAL CONTROL UNITS • Hold “SET” for 1 sec. The display will flash the current minimum temperature. •... -
Page 11: Maintenance
Maintenance REGULAR MAINTENANCE WARNING: DISCONNECT POWER CORD BEFORE CLEANING ANY PARTS OF THE UNIT. CLEANING THE CONDENSER COIL • For efficient operation, it is important that the condenser surface be kept free of dust, dirt, and lint. • We recommend cleaning the condenser coil and fins at least once per month. •... - Page 12 Troubleshooting Condensing Units Run For Long Excessive amount of warm product Allow adequate time for product to Periods of Time. placed in cabinet. cool down. Prolonged door opening or door Ensure doors are closed when not ajar. in use. Avoid opening doors for long periods of time.
-
Page 13: Parts Breakdown
Parts Breakdown Model PT-CN-1524-S-HC 50089... - Page 14 Parts Breakdown Model PT-CN-1524-S-HC 50089 Item No. Description Position Item No. Description Position Item No. Description Position AI943 Cabinet for 50089 AI951 Lid for 50089 AB320 Thermostat Installation Board for 50089 AA360 Bottom Left Hinge for 50089 AI952 Pan for 50089...
- Page 15 Parts Breakdown Model PT-CN-1778-S-HC 50090...
- Page 16 Parts Breakdown Model PT-CN-1778-S-HC 50090 Item No. Description Position Item No. Description Position Item No. Description Position AI978 Cabinet for 50090 AI985 Lid for 50090 AB320 Thermostat Installation Board for 50090 AA360 Bottom Left Hinge for 50090 AI952 Pan for 50090 AA214 Thermostat Water Proof Cover for 50090 AI979...
-
Page 17: Electrical Schematics
Electrical Schematics Model PT-CN-1524-S-HC 50089... - Page 18 Electrical Schematics Model PT-CN-1778-S-HC 50090...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
