Attaching the Cable Guides

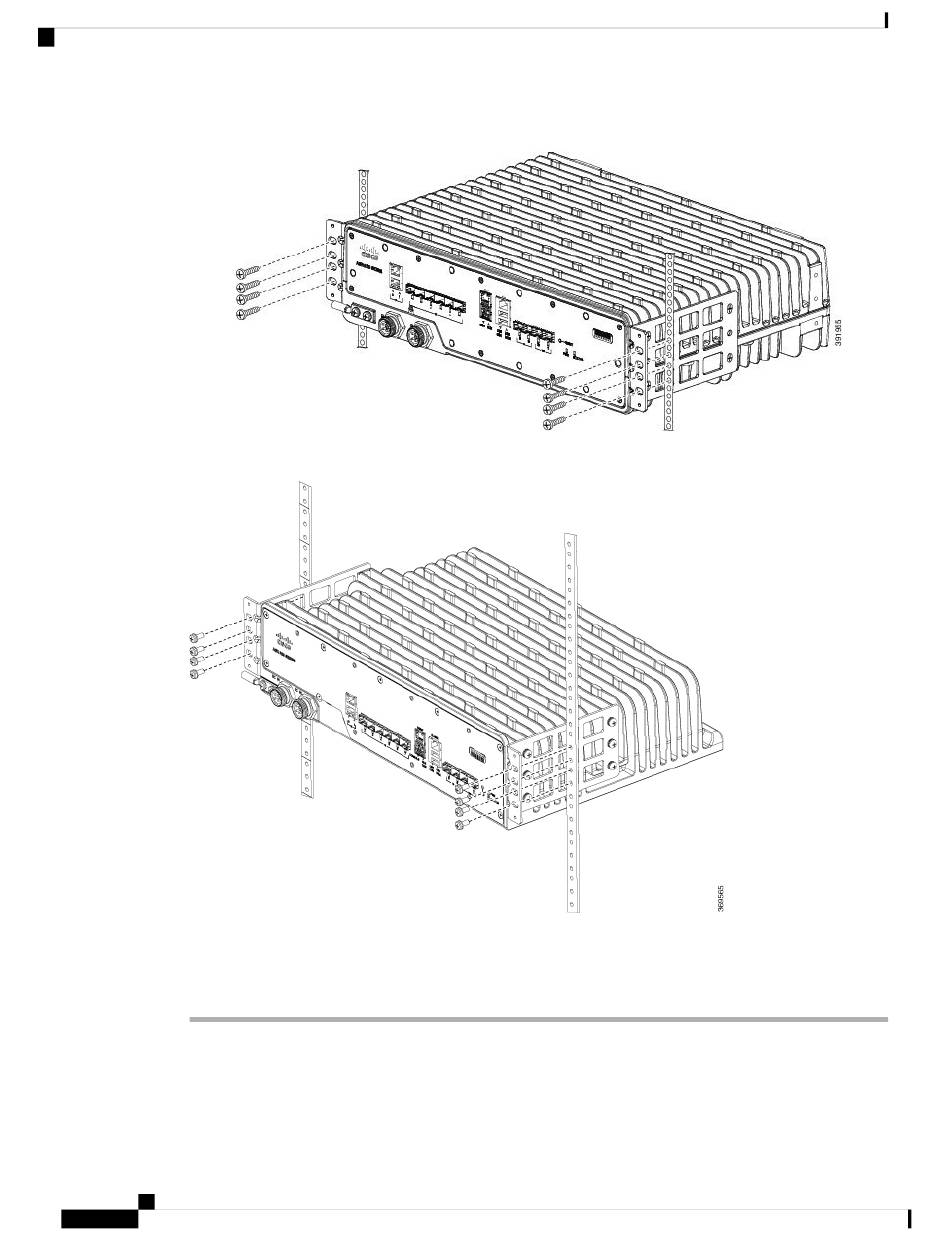

Figure 11: Installing the Chassis in a 19-inch EIA Rack
Figure 12: Installing the Chassis in a 19-inch EIA Rack - Remodeled
Step 3
Install the eight 12-24 x 3/4-inch or 10-32 x 3/4-inch zinc-plated steel screws through the holes in the bracket
and into the threaded holes in the equipment rack posts.
Step 4
Use a tape measure and level to verify that the chassis is installed straight and level.
Attaching the Cable Guides
The router supports the following cable guides:
