SFP+ Ports

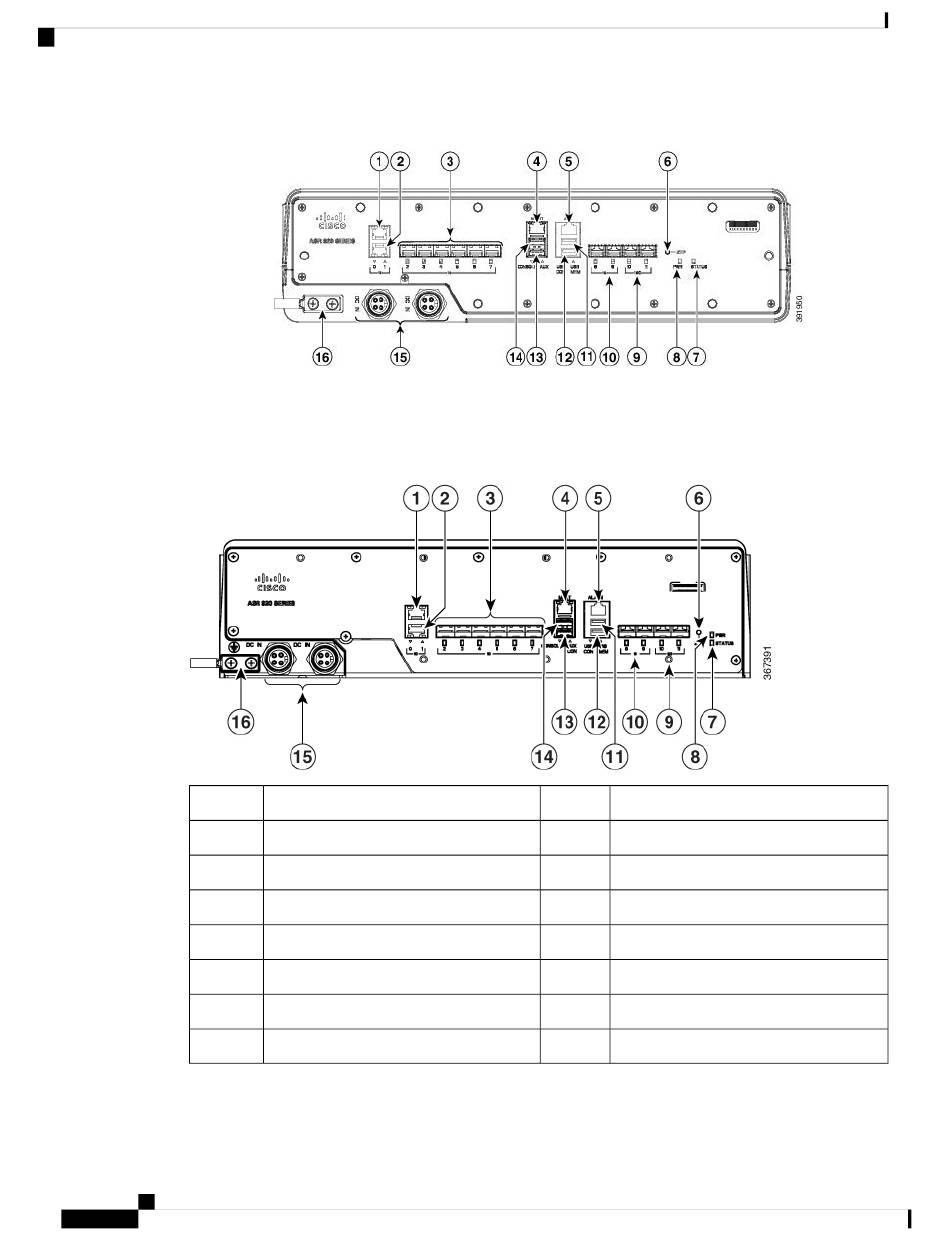

Figure 3: Front Panel of Cisco ASR 920-10SZ-PD Router
Effective July 2018, the Cisco ASR 920-10SZ-PD front panel and case are remodeled. All installation
procedures, however, remain the same. The following figure shows the remodeled Cisco ASR 920-10SZ-PD
and the Cisco ASR-920-8S4Z-PD router.
Figure 4: Front Panel of Cisco ASR 920-10SZ-PD Router - Remodeled
1
2
3
4
5
6
7
8
Cisco ASR 920-10SZ-PD and Cisco ASR-920-8S4Z-PD Aggregation Services Router Hardware Installation Guide
4
1 GE Copper Interface
1 GE Copper Interface
6x 1GE SFP ports
Management port
Alarm input connector port
Zero Touch Provisioning (ZTP) button
System Status LED
Board power LED
Cisco ASR 920-10SZ-PD and Cisco ASR-920-8S4Z-PD Routers Overview
9 2x1G/10G (Dual Rate) SFP/SFP+ ports
10 2x1GE fiber ports
11 USB Memory port
12 USB Console port
13 Console port (TIA/EIA-232F)
14 Auxiliary console port
15 2xDC power supply input connector
16 Grounding lug
