Installing the Cisco ASR 920-10SZ-PD and Cisco ASR-920-8S4Z-PD Routers

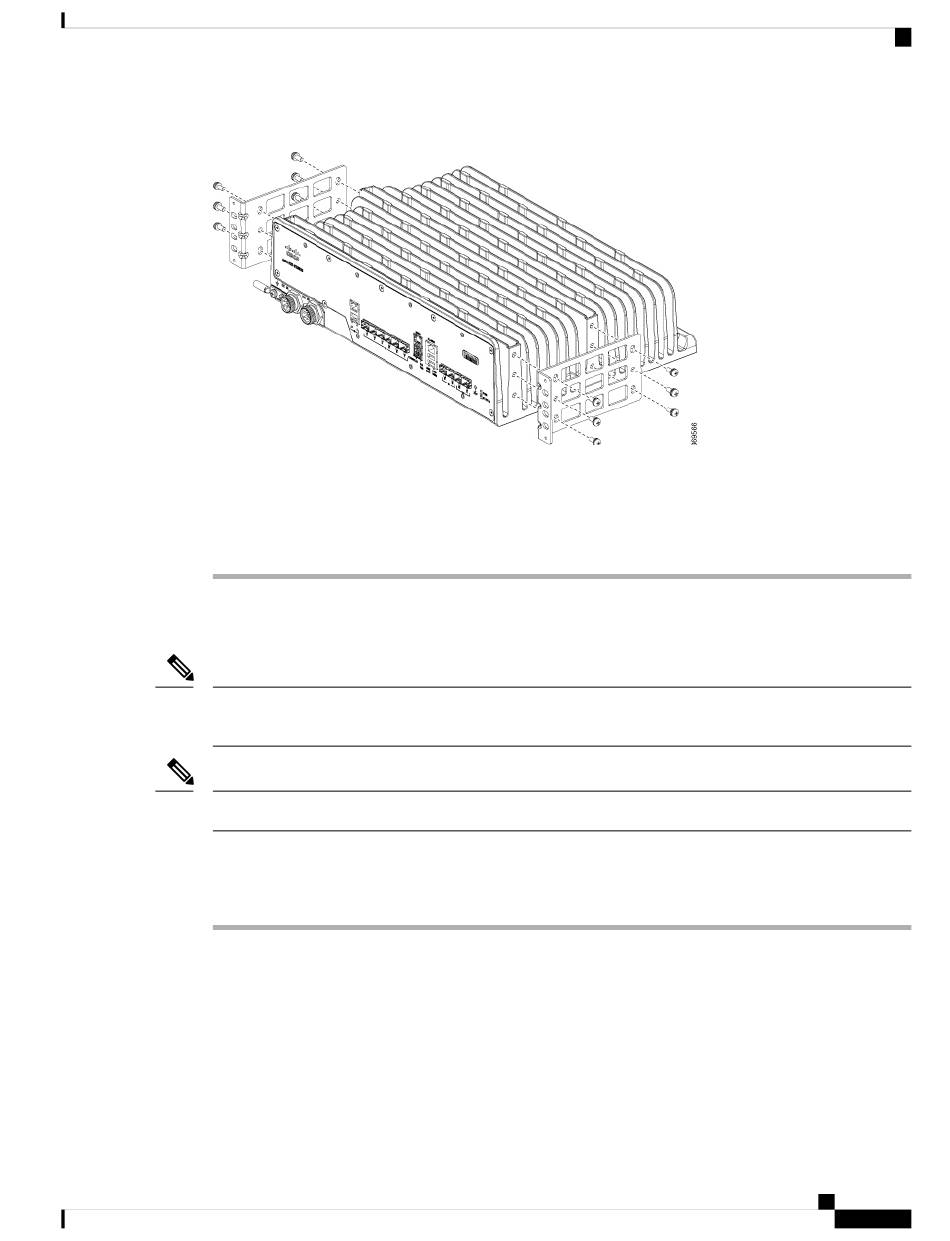

Figure 10: Attaching Mounting Brackets for a 19-inch EIA Rack - Remodeled
Step 2 Position one of the brackets against the chassis side, and align the screw holes.
Step 3 Secure the bracket to the chassis with the M5 screws removed when performing Step 1. The recommended
maximum torque is 10 in.-lb.
Step 4 Repeat Step 2 and Step 3 for the other bracket.

Installing the Router Chassis in the Rack

Note Ensure adequate clearance and air flow when mounting the router in a rack. For more information, see the
Clearance Guidelines section.
Note Install the cable guides before installing the router in a 19-inch EIA rack. See Attaching the Cable Guides.
To install the router chassis in the equipment rack, perform these steps:
Procedure
Step 1 Insert the rear of the chassis between the mounting posts.
Step 2
Align the mounting holes in the bracket (and optional cable guide) with the mounting holes in the equipment
rack.
The following figure shows how to install the router in a 19-inch EIA rack.
Cisco ASR 920-10SZ-PD and Cisco ASR-920-8S4Z-PD Aggregation Services Router Hardware Installation Guide
Installing the Router Chassis in the Rack
