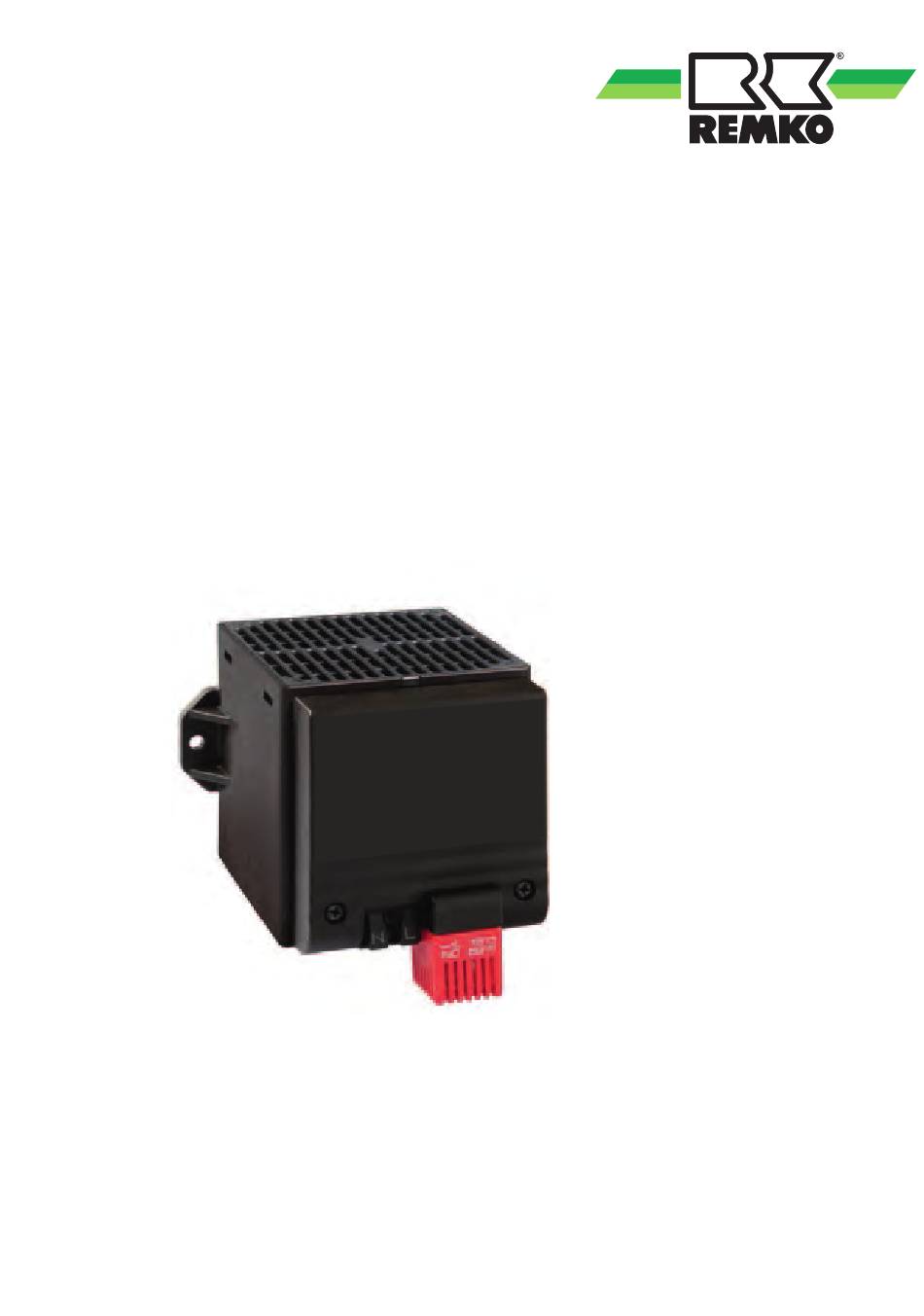

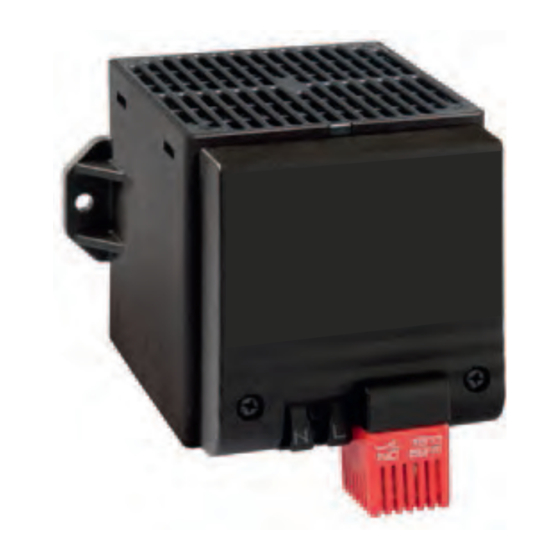

REMKO heater for anti-freeze protection
Read the instructions prior to performing any task!
0168-2017-08 Edition 1, en_GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SQW400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for REMKO SQW400

  • Page 1 Operating manual REMKO heater for anti-freeze protection Read the instructions prior to performing any task! 0168-2017-08 Edition 1, en_GB...
  • Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- prints! Translation of the original operating manual...
  • Page 3: Table Of Contents

    Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Identification of notes........................4 1.3 Personnel qualifications........................4 1.4 Dangers of failure to observe the safety notes................4 1.5 Safety-conscious working....................... 4 1.6 Safety instructions for the operator....................5 1.7 Safety notes for installation, maintenance and inspection..............
  • Page 4: Safety And Usage Instructions

    REMKO heater for anti-freeze protection Safety and usage instructions CAUTION! This combination of symbol and signal word 1.1 General safety notes warns of a potentially hazardous situation, which if not avoided may cause injury or mate- Carefully read the operating manual before com- rial and environmental damage.
  • Page 5: Safety Instructions For The Operator

    The setup, connection and operation of the plete and return the "certificate of warranty" to units and its components must be undertaken REMKO GmbH & Co. KG at the time when the in accordance with the usage and operating units are purchased and commissioned.
  • Page 6: Environmental Protection And Recycling

    REMKO heater for anti-freeze protection WARNING! Plastic films and bags etc. are dangerous toys for children! Why: - Leave packaging material are not around. - Packaging material may not be accessible to children! 1.12 Environmental protection and recycling Disposing of packaging All products are packed for transport in environ- mentally friendly materials.
  • Page 7: Technical Data

    Technical data 2.1 Unit data and features Series Heater for anti-freeze protection Operating voltage V / Hz AC 230V / 50/60Hz Heating capacity Max. switch-on current 15.0 Recom. Pre-fuse T (slow-blow) 16.0 °C / °F +5 °C / +41 °F Switch-off temperature °C / °F +5 °C / +41 °F...
  • Page 8: Unit Dimensions

    REMKO heater for anti-freeze protection 2.2 Unit dimensions Fig. 1: Dimensions A: Front view C: Plan view B: Side view D: Rear view We reserve the right to modify the dimensions and design as part of the ongoing technical development...
  • Page 9: Heating Capacity Characteristic Curve

    2.3 Heating capacity characteristic curve B [°C] Fig. 2: Heating capacity A: Heating capacity B: Temperature...
  • Page 10: Unit Description

    REMKO heater for anti-freeze protection Unit description Electrical wiring The heater for anti-freeze protection is used to Connection example control the temperature of the interior space of the hydraulic module. This ensures that in the event of a fault, the last step in the freezing of the medium and thus defects due to frost can be prevented.
  • Page 11: Index
