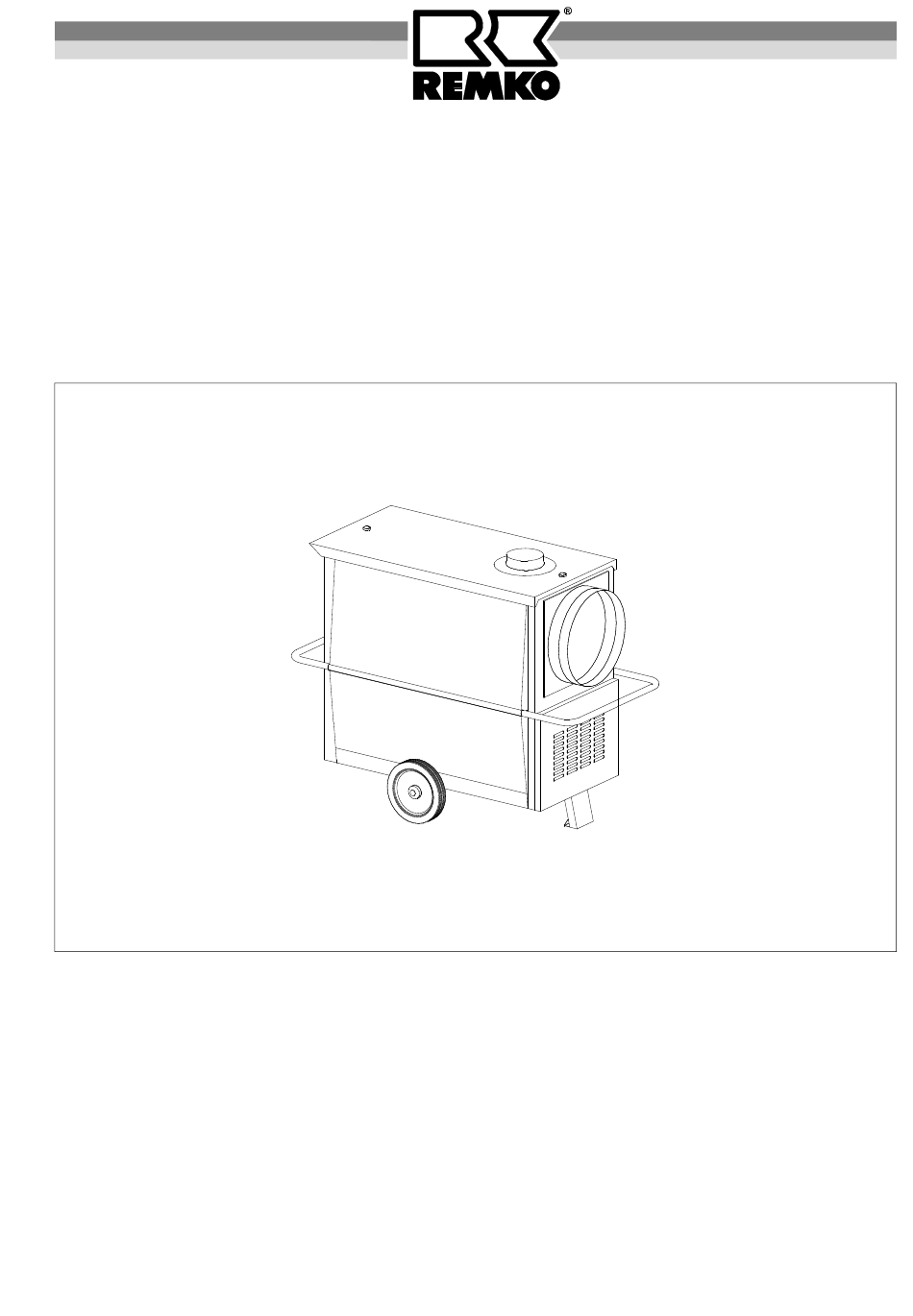

  • Page 1 REMKO CLK 20 Mobile Heaters Operation Technology Spare Parts REMKO – powerful like a bear. Edition GB – M08...
  • Page 3: Table Of Contents

    Our guarantee becomes null and void if the unit is used, set up, or maintained improperly or if modifications are made to the supplied unit without our prior consent. Subject to alterations! Mobile Heaters REMKO CLK 20 Contents Contents Page...
  • Page 4: Safety Notices

    Safety Notices Description of Unit Make sure to observe relevant local building and fire The units are mobile, directly combusted hot air heaters protection codes and abide by the regulations of the (HAH) with heat exchangers and a chimney connection employers' liability insurance associations when the for commercial use.
  • Page 5: Regulations For Hot Air Heaters

    Monitoring unit operation (3) The equipment may be operated only in rooms with a sufficient amount of air for the combustion and the ex- All functions of the unit are fully automatic and moni- haust fumes are conducted outside via chimney flues. tored for safety by the safety devices and the automatic burner relay (part of the forced-air oil burner).
  • Page 6: Installation Regulations

    ◊ The equipment may be used for room heating only If it is necessary to replace the STB, only the original with a room thermostat (accessory). REMKO spare part should be used. ◊ The supply of the fresh air required for proper com- bustion must be guaranteed.
  • Page 7: Chimney Duct

    Chimney Duct Before Commissioning When the units are operated outside or in open spaces, Before commissioning, the equipment should be you do not need a chimney. We recommend using a one- checked for noticeable defects of the operating and metre-long chimney pipe with a rain cover at the top to safety devices, as well as for proper mounting and cor- (see Example 2) to prevent the penetration of rainwater rect electrical connection.
  • Page 8: Commissioning

    ◊ Use only hot air tubes (accessories) approved by 3. Open all shut-off fittings in the oil supply. Remko. In the process, pay attention to the air direc- When operating the unit for the first time, air in the oil...
  • Page 9: Shutdown

    Shutdown ◊ Regularly check safety devices to ensure that they 1. Switch the operating switch to the "0" position (off). are working properly. 2. Shut off the fuel supply. ◊ Always keep the sensors of the safety devices free of dust and dirt. Important information about the equipment's cool- ◊...
  • Page 10: Trouble Shooting

    6. Check whether the safety temperature limiter (STB) has activated. cleaner through the opening of the burner. You must remove the protective cover next to the A special boiler cleaning set for the REMKO indus- trial vacuum cleaner is available as an accessory. control panel.
  • Page 11: Customer Service And Guarantee

    7. Before resetting the STB, you must determine the tomer or its recipient has returned the completed reason it was activated and take appropriate meas- "Warranty Document" included in delivery to REMKO ures. GmbH & Co. KG at the time of the sale and commis- The following are possible reasons: sioning of the equipment.
  • Page 12: Technical Data

    Technical Data Model CLK 20 Max. nominal heat load Nominal heat output Nominal air volume flow m³/h 1.860 Pressure (max. total) EL heating oil or diesel according to DIN 51603 or Fuel diesel fuel Max. fuel consumption 2.20 Oil nozzle (Danfoss) 0.5/60°S...
  • Page 13: Wiring Diagram

    Wiring Diagram Brown braun orange Orange Black schwarz Blue blau HW 04.03 C = Capacitor = Operating switch H1 = Control lamp (green) = Reset button (burner) H2 = External control lamp (red) STB = Safety temperature limiter KL = Terminal strip = Temperature control thermostat M = Fan motor TW = Temperature monitor...
  • Page 14: Exploded View

    Exploded View STB sensor TW sensor TR sensor Ansicht View of control panel Bedienungstableau 70 71 66 67 68 69 We reserve the right to make changes in dimensions and design in the interest of technical advances!
  • Page 15: Spare Parts List

    Spare Parts List Description Ref. No. Cover plate 1104890 Insulation, top 1104891 Insulation, right 1104892 Side cover, right top 1104893 Side cover, right bottom 1104894 Base plate 1104895 Insulation, bottom 1104896 Side cover, left top 1104897 Side cover, left bottom 1104898 Insulation, left 1104899...
  • Page 16: Commissioning Of Forced-Air Oil Burner

    Commissioning of the Forced-Air Oil Burner The forced-air oil burner may be commissioned Adjusting the air flap only by expert personnel! Adjust the air flap using the adjusting screw (7) in such a way that Distance A between the air flap (8) and the stop Preparation (9) amounts to approx.
  • Page 17 Secondary air setting (nozzle stock) Measuring the combustion gases 1. Set the nozzle stock (2) to the approx. 1.5 marking us- Every stationary combustion plant must be checked by ing the adjusting screw (1). measuring the exhaust emission values according to the first Bundesimmissionsschutzverordnung (1.BImSchV) (German Air Pollution Act).
  • Page 18: Maintenance Log

    Maintenance Log Model : ........ Model No. : ........Burner : ........ Burner No. : ........9 10 11 12 13 14 15 16 17 18 19 20 Clean unit – surface Clean unit – interior Clean fan blade Clean combustion chamber Clean heat exchanger Replace waste gas suppressors Replace seals - revision cover...
  • Page 19: Ec Declaration Of Conformity

    This declaration becomes null and void if the unit is used, set up, or maintained improperly or if modifica- tions are made to the supplied unit without our prior consent. Name of manufacturer: : REMKO GmbH & Co. KG Air Conditioning and Heating Technology Im Seelenkamp 12...
  • Page 20 REMKO GmbH & Co. KG Air Conditioning and Heating Technology Im Seelenkamp 12 • 32791 Lage, Germany P.O.Box 1827 • 32777 Lage, Germany Phone +49-5232-606-0 Fax +49-5232-606-260...
