Copley Controls Xenus PLUS Compact CANopen Series Manual page 26

Xenus

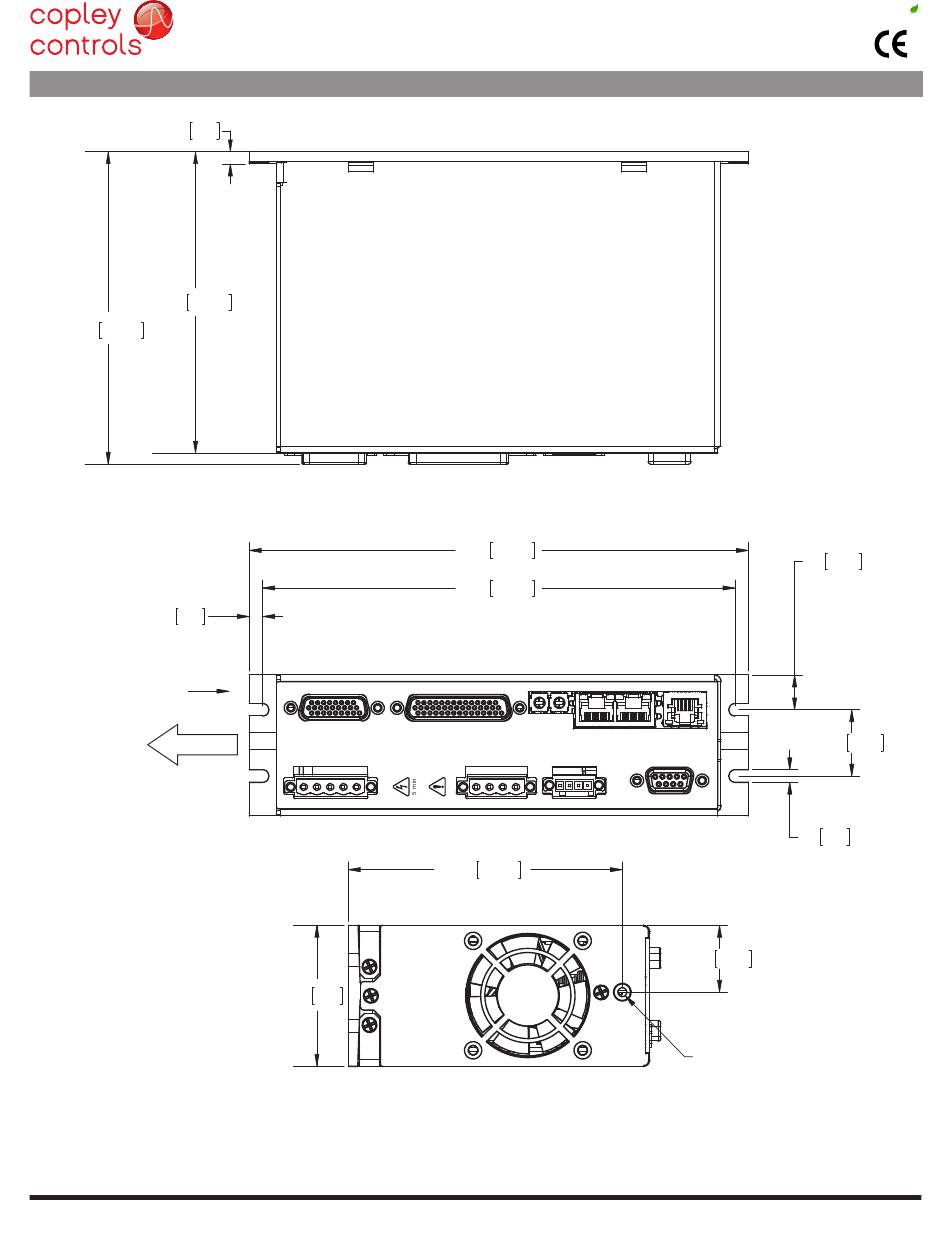

dIMensIons [In/MM]
.19 4.8
4.55 115.6
4.72 119.8
.20 5.2
End View
Fan Air-Flow
End View
notes:
1) recommended screws for mounting slots: #8-32 or m4 external tooth SemS
2) Cable shield grounding socket: #8-32 external tooth SemS
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
P/N 16-01436 Rev 01
PLUS Compact
7.54 191.4
7.13 181.1
4.14 105.1
2.13 54.1
XPC
CANopen
1.01 25.6
See Note 2
RoHS
.53 13.3
1.00 25.4
.19 4.8
