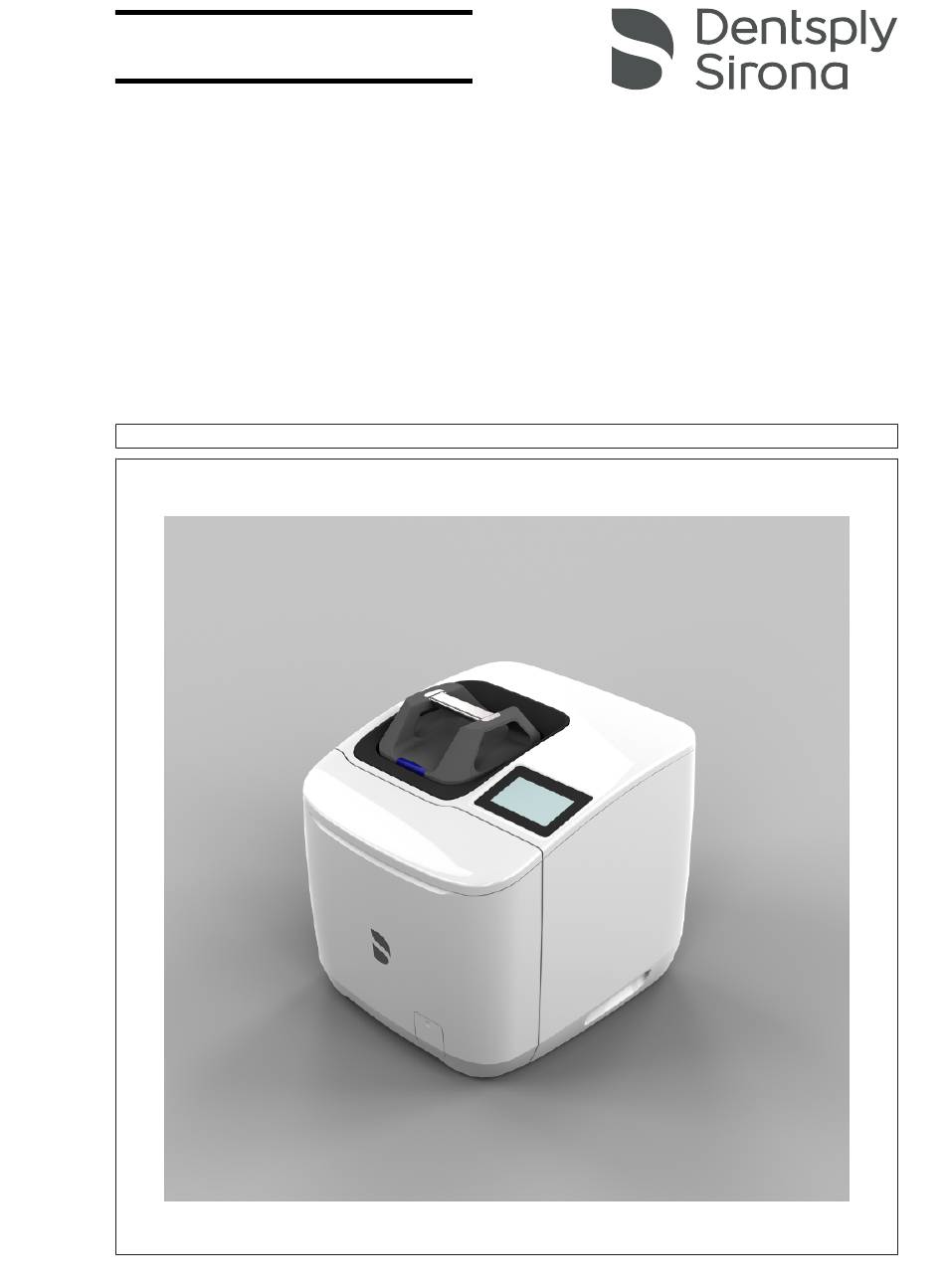

04.2019
New as of:
DAC Universal
Touch
Operating Instructions
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAC Universal Touch and is the answer not in the manual?

Questions and answers

Related Manuals for Dentsply Sirona DAC Universal Touch

Summary of Contents for Dentsply Sirona DAC Universal Touch

  • Page 1 04.2019 New as of: DAC Universal Touch Operating Instructions English...
  • Page 2 Dear Customer, Dentsply Sirona Operating Instructions DAC Universal Dear Customer, Thank you for purchasing a DAC Universal. The DAC Universal cleans, lubricates and disinfects 6 instruments automatically. DAC Universal saves you time-consuming manual reprocessing and reliably protects you, your team and your patients from cross- contamination.

  • Page 3: Table Of Contents

    Dentsply Sirona Table of Contents Operating Instructions DAC Universal Table of Contents General data ......................Contact information..................General notes ....................Electronic "User E-Guide" ................Structure of the document................1.4.1 Identification of the danger levels ..........1.4.2 Formats and symbols used............
  • Page 4 Table of Contents Dentsply Sirona Operating Instructions DAC Universal Programs ..................... Technical data....................Operation ........................ Operation of the touch panel................ 4.1.1 Operating structure / menu guidance..........4.1.1.1 Virtual function keys ............. 4.1.1.2 Structure of the start screen ......... 4.1.2 Symbols ..................
  • Page 5 Dentsply Sirona Table of Contents Operating Instructions DAC Universal 5.1.4 Replace the drain filter / O-rings on the drain filter ......5.1.5 Insert Check & Clean lid ..............5.1.6 Check the safety ring ..............5.1.7 Check the Check & Clean lid ............

  • Page 6: General Data

    If you reach an impasse despite having thoroughly studied the operating instructions, please contact your dental depot. Electronic "User E-Guide" A USB stick "DAC Universal Touch" is included with the DAC Universal that contains all operating instructions and important technical information.

  • Page 7: Structure Of The Document

    Dentsply Sirona 1 General data Operating Instructions DAC Universal 1.4 Structure of the document Structure of the document 1.4.1 Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in these operating instructions.

  • Page 8: Definitions

    1 General data Dentsply Sirona 1.5 Definitions Operating Instructions DAC Universal Definitions This chapter shows examples for the use of various terms. Operation/step Drain the chamber, manually closing the DAC Universal Internal cleaning, disinfection Process Check & Clean process Program...

  • Page 9: Warranty And Liability

    Dentsply Sirona 1 General data Operating Instructions DAC Universal 1.6 Warranty and liability Warranty and liability The manufacturer guarantees that the product delivered to you (DAC Universal) was subjected to a thorough quality test before it left the factory. A warranty period of 12 months is given for DAC Universal starting on the day it is delivered.

  • Page 10: Intended Use

    1 General data Dentsply Sirona 1.7 Intended use Operating Instructions DAC Universal Intended use Device with Blue lid The unit is intended to clean, lubricate and thermally disinfect dental handpieces. Dental handpieces are defined as rotating instruments split up into the categories straight handpieces, contra angles and turbines.

  • Page 11: Scope Of Delivery

    - NitraClean cleaning tablets - Syringe - Cotton wool rolls - Screwdriver for drain filter - Drain filter incl. O-rings ● USB stick "DAC Universal Touch" - Operating instructions - Operating instructions for adapters - Installation instructions - Installation and handover protocol The adapters for the Blue lid can be freely selected and must be purchased separately.

  • Page 12: Safety Instructions

    2 Safety instructions Dentsply Sirona Operating Instructions DAC Universal Safety instructions WARNING This product may be operated only by trained personnel. Please read these instructions for use carefully before operating the DAC Universal. Save these instructions for further reference. Follow all warning and safety information.

  • Page 13: Electrostatic Discharge

    Dentsply Sirona 2 Safety instructions Operating Instructions DAC Universal 2.1 Electrostatic discharge Electrostatic discharge WARNING Risk of contamination! Electrostatic discharge can affect the cleaning outcome. Protective measures ESD stands for ElectroStatic Discharge. Electrostatic discharge from people can damage electronic components when the components are touched.
  • Page 14 2 Safety instructions Dentsply Sirona 2.1 Electrostatic discharge Operating Instructions DAC Universal The transient currents resulting from these discharges have a magnitude of over 10 amps. They are not hazardous for humans because they last for only several nanoseconds. Note: nanosecond = 1/1,000,000,000 second = 1 billionth of a second Voltage differentials exceeding 30,000 volts per centimeter may lead to a charge transfer (electrostatic discharge, lightning, spark-over).

  • Page 15: Caution Symbols On The Device

    Dentsply Sirona 2 Safety instructions Operating Instructions DAC Universal 2.2 Caution symbols on the device Caution symbols on the device Meaning: Warning of danger This symbol is found on the back of the DAC Universal next to: ● the RS232 interface and the LAN interface: External computer hardware that is connected to this serial interface must be labeled "The connected device must comply with the UL 1950 and IEC/EN...

  • Page 16: Instruction Of Practice Personnel

    2 Safety instructions Dentsply Sirona 2.5 Instruction of practice personnel Operating Instructions DAC Universal CAUTION Risk of burns! The drain hose, filter housing, drain filter and drain tank are very hot during the reprocessing cycle. Switch the DAC Universal off and let it cool down (about 15 minutes) before emptying and cleaning the drain tank or cleaning or replacing the drain filter.
  • Page 17 Only ISO 7494-2 dry compressed air may be used. WARNING Risk of contamination! The sterile filter enclosed must be installed properly. Only sterile filters approved by Dentsply Sirona may be used. DANGER Electrical shock! Only the power plugs supplied or original spare parts may be used.

  • Page 18: Maintenance

    2 Safety instructions Dentsply Sirona 2.7 Maintenance Operating Instructions DAC Universal Maintenance CAUTION Risk of contamination! Please observe the regulations applicable in your country when handling the drain tank and drain filter. The manufacturer recommends that you wear your personal protective gear when handling the drain tank and drain filter.

  • Page 19: Product Description

    Dentsply Sirona 3 Product description Operating Instructions DAC Universal 3.1 Functions Product description Functions WARNING Risk of contamination! Only the loads listed may be reprocessed in the DAC Universal. The DAC Universal cleans, lubricates and disinfects up to 6 turbines and straight and contra-angle handpieces automatically in approx.

  • Page 20: Blue Lid Standard Program

    3 Product description Dentsply Sirona 3.1 Functions Operating Instructions DAC Universal 3.1.1 Blue lid standard program The turbines, straight and contra-angle handpieces are reprocessed as follows using the adapters on the Blue lid: 1. Preliminary cleaning 2. Leak test 3. Internal cleaning: The internal spray and drive channels are cleaned with water.

  • Page 21: Controls And Functional Elements Of The Dac Universal

    Dentsply Sirona 3 Product description Operating Instructions DAC Universal 3.2 Controls and functional elements of the DAC UNIVERSAL Controls and functional elements of the DAC UNIVERSAL 3.2.1 Front of the device Front flap Oil bottle Drain filter and filter housing...

  • Page 22: Back Of Unit

    3 Product description Dentsply Sirona 3.2 Controls and functional elements of the DAC UNIVERSAL Operating Instructions DAC Universal 3.2.2 Back of unit Main switch LAN interface Power supply connection Standard interface RS232 Water connection Compressed air connection Drain connection 6681006 D3708...

  • Page 23: Lid

    Dentsply Sirona 3 Product description Operating Instructions DAC Universal 3.2 Controls and functional elements of the DAC UNIVERSAL 3.2.3 The following lids can be used for reprocessing in the DAC Universal: ● Blue lid for reprocessing turbines, straight and contra-angle handpieces.

  • Page 24: Display And Touch Panel

    3 Product description Dentsply Sirona 3.2 Controls and functional elements of the DAC UNIVERSAL Operating Instructions DAC Universal 3.2.4 Display and touch panel See chapter "Operation of the touch panel  [→ 30]" for more information about the DAC Universal display and menu.

  • Page 25: Water Tank

    Dentsply Sirona 3 Product description Operating Instructions DAC Universal 3.2 Controls and functional elements of the DAC UNIVERSAL 3.2.7 Water tank If no permanent water connection is selected, the integrated water tank must be filled regularly with water manually, as all functions (e.g.

  • Page 26: Nitramoil #2 Lubrication Concentrate

    3 Product description Dentsply Sirona 3.2 Controls and functional elements of the DAC UNIVERSAL Operating Instructions DAC Universal 3.2.8 NitramOil #2 lubrication concentrate The NitramOil #2 lubrication concentrate is used to lubricate the drive channels and the rotor of the turbines, straight and contra-angle handpieces, and is not screwed into the device upon delivery.

  • Page 27: Error Led

    Dentsply Sirona 3 Product description Operating Instructions DAC Universal 3.3 Programs 3.2.9 Error LED The DAC Universal is equipped with an LED. This flashes in the event of an error. If the error is relevant for the process, an alarm also sounds.

  • Page 28: Technical Data

    3 Product description Dentsply Sirona 3.4 Technical data Operating Instructions DAC Universal Technical data Manufacturer: Sirona Dental Systems GmbH Model: DAC Universal Dimensions (H/W/D): Opened: 59 cm / 40 cm / 42 cm Closed with Blue lid: 40 cm / 40 cm / 42 cm...
  • Page 29 Dentsply Sirona 3 Product description Operating Instructions DAC Universal 3.4 Technical data This product complies with Medical Device Directive 93/42/EEC, including all amendments. 0123 The DAC Universal complies with the requirements of the RoHS Directive 2011/65/EU. Symbols on the DAC Universal packaging/external carton This product complies with Medical Device Directive 93/42/EEC, including all amendments.

  • Page 30: Operation

    4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Operation Operation of the touch panel 4.1.1 Operating structure / menu guidance 4.1.1.1 Virtual function keys The touch screen shows virtual function keys depending on the selected menu.

  • Page 31: Structure Of The Start Screen

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel 4.1.1.2 Structure of the start screen 04:00 PM From the start screen, you can ● Start a cycle (in the middle) using the " Start " function key ●...

  • Page 32: Symbols

    4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.2 Symbols 4.1.2.1 Navigation symbols This chapter describes the symbols used to navigate in the DAC Universal. Return to the start screen Show submenu Cancel a process...
  • Page 33 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel Check & Clean navigation Navigate to the next step Navigate to the previous step Navigate to the next Check & Clean chapter Navigate back to the previous Check &...

  • Page 34: Menu Symbols

    4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.2.2 Menu symbols This chapter describes the symbols that appear as menu symbols on the DAC Universal. They are presented and explained in the same order as the menu.
  • Page 35 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel Settings: Time, pm Edit Settings: Date Settings: Date, day / month / year D.M.Y Settings: Display brightness Settings: Increase display brightness Settings: Reduce display brightness Printer...
  • Page 36 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Settings: Service technician Settings: Oil quantity Settings: Oil expel Settings: Automatic supply of dem- ineralized water Settings: Automatic supply of dem- ineralized water, off Settings: Automatic supply of dem-...
  • Page 37 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel History History History: Programs History: Service History: Error messages History: Check & Clean List, 50 cycles List, 200 cycles Information Information 6681006 D3708 D3708.201.01.01.02    04.2019...
  • Page 38 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Check & Clean Check & Clean (maintenance) List, 50 cycles List, 200 cycles 6681006 D3708 D3708.201.01.01.02    04.2019...

  • Page 39: Process Symbols

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel 4.1.2.3 Process symbols This chapter describes the symbols that describe the processes in the DAC Universal. Start process Process: Open chamber Blue lid process Green lid process...
  • Page 40 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Preheat (at the start of the day) Temperature in the chamber is in- creasing Temperature stable Temperature in the chamber is drop- ping The lid opens slightly at the end of the...
  • Page 41 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel Lid is open Slide the lid in the holder Drain the chamber - manual The safety ring must be pressed - within the scope of the Check & Clean 6681006 D3708 D3708.201.01.01.02    04.2019...
  • Page 42 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Process status symbols for the Blue lid Reprocessing of dental handpieces on the Blue lid Internal cleaning of dental handpieces on the Blue lid Lubrication of dental handpieces on...
  • Page 43 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel Process status symbols for the Green lid Reprocessing of Green lid instru- ments on the Green lid Internal cleaning of Green lid instru- ments on the Green lid...

  • Page 44: Notice Symbols For Cleaning And Maintenance

    4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.2.4 Notice symbols for cleaning and maintenance This chapter describes the symbols that only appear when the DAC Universal needs cleaning or maintenance. Check & Clean maintenance workflow after 50 cycles Check &...
  • Page 45 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel User pop-ups Cancel cycle Insufficient compressed air Water tank not inserted Water quality inadequate The error message appears as of a value of > 9.0 µS/cm. The process stops because it can no longer be guaranteed that the process is safe.
  • Page 46 Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal The safety ring is triggered Service, contact a dealer authorized by Dentsply Sirona Disconnect from the network Connect service software Service, read operating instructions Service, contact a dealer authorized...
  • Page 47 4.1.2.5.2 Error symbols This chapter describes the symbols that appear on the DAC Universal as error messages. Service, contact a dealer authorized by Dentsply Sirona Front flap is not closed Insufficient or no compressed air sup- No water 6681006 D3708...
  • Page 48 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Water tank not inserted Water quality inadequate 4.1.2.5.3 Warning symbols This chapter describes the symbols that appear on the DAC Universal as warning messages. Warning, call service...

  • Page 49: Menu Options

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel 4.1.3 Menu options This chapter describes which menu options the DAC Universal shows. The DAC Universal menu is divided into 5 menus (from left to right) as...

  • Page 50: Manual Control

    4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.3.1 Manual control The settings menu is divided into 3 sub-menus (from left to right) as follows: 04:00 PM ● Manual: Open ● Manual: Close ● Manual: Drain the chamber 4.1.3.1.1...

  • Page 51: Settings

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel About 60 seconds after starting this operation the lid will reopen. The chamber should then be empty. If not, the operation can be repeated. 4.1.3.2 Settings...
  • Page 52 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.3.2.1 Date and time 04:00 PM Upon touching the function key " Date and time ", you can set the time and date. Setting the time 1.
  • Page 53 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel 5. Select the desired display by pressing the function keys " am / pm “". 6. Confirm the time by pressing the " Confirm " function key.
  • Page 54 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.3.2.2 Display brightness 04:00 PM By pressing the function key " Display brightness " you can change the brightness of the display. The brightness is adjustable in 10% steps, from 30 – 100%.
  • Page 55 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel 4.1.3.2.3 Printer 04:00 PM The printer menu is divided into 2 sub-menus (from left to right) as follows: ● Reprint ● Printer language settings Reprint Printout logs can be prepared for the last 40 reprocessing cycles by pressing the "...
  • Page 56 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal The list contains the following information for each of the 40 reprocessing cycles: ● Cycle number ● Cycle type (color for each lid / Check & Clean symbol) ●...
  • Page 57 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel 4.1.3.2.5 Technical settings 04:00 PM The "Technical settings" menu is divided into 5 sub-menus (from left to right): ● Settings: Oil quantity ● Settings: Blow out excess oil ●...
  • Page 58 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Settings: Oil quantity 04:00 PM By pressing the function key " Settings: Oil quantity " you can set the oil quantity. There are 3 levels which can be selected by pressing the respective function key.
  • Page 59 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel Settings: Automatic supply of demineralized water 04:00 PM By touching the function key " Settings: Automatic supply of demineralized water ", you can switch the function " Automatic supply of demineralized water "...
  • Page 60 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal Manual IP address assignment To set the IP address manually, the DHCP function must be set to " OFF" . The following values are set as default settings for the IP address on the device: ●...

  • Page 61: History

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel If you press the " ON " function key, a pop-up message appears that asks you to establish the connection. Data can now be exchanged between the service software and the DAC Universal.
  • Page 62 4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.3.3.1 History: Program 04:00 PM 0.5 min 134°C 9999 0.5 min 134°C 3064 Pressing the " History: Program " function key displays the number of reprocessing cycles already performed per type of lid.
  • Page 63 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.1 Operation of the touch panel 4.1.3.3.3 History: Error messages 04:00 PM 7777 10.07.2015 08.05.2015 10.11.2014 29.07.2014 9999 03.02.2014 Pressing the " History: Error messages " function key displays the last 99 error messages.

  • Page 64: Information

    4 Operation Dentsply Sirona 4.1 Operation of the touch panel Operating Instructions DAC Universal 4.1.3.4 Information 04:00 PM 00.01.02-DEV.0D381A 00.01.02-DEV.0D3C5C 000001 000032 You can view information on your DAC Universal by pressing the "Information" function key. The following information is listed from top to bottom: ●...

  • Page 65: Reprocessing With The Dac Universal

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL Reprocessing with the DAC UNIVERSAL 4.2.1 Switching on, off and heating up the device Switching on the device Once the DAC Universal has been switched on at the main switch on the rear of the device, the device heats up until it is ready for use.

  • Page 66: Filling The Water Tank

    4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal 4.2.2 Filling the water tank NOTE Remove the water tank from the DAC Universal before filling it up. This prevents water from spilling into the inside of the DAC Universal housing.
  • Page 67 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL ü Wear your personal protective gear. 1. Unscrew the lid of the drain tank. 2. Remove the condensation tube. 3. Empty the drain tank. Dispose of the waste water according to the national guidelines and the applicable regulations for waste disposal.
  • Page 68 4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal 8. Fill the clean drain tank with water up to the lowest mark on the label. 9. Add isopropyl (alcohol ≥ 70 %) up to the second mark on the label.

  • Page 69: Pre- And Postprocessing Of The Various Instruments

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL 4.2.4 Pre- and postprocessing of the various instruments IMPORTANT Please follow the regulations and guidelines applicable in your country in your practice. WARNING Risk of contamination! Please follow the instrument manufacturer's instructions when handling the instruments.

  • Page 70: Reprocessing With The Blue Lid

    4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal 4.2.5 Reprocessing with the Blue lid The Blue lid is used for the reprocessing of straight and contra-angle handpieces and turbines. Tip: If there are many instruments to be reprocessed or to ensure the instruments will be available again quickly, we recommend using a second Blue lid.
  • Page 71 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL Ä There are instruments on the Blue lid; the DAC Universal is still open and ready for a reprocessing cycle. Reprocessing 1. Press the " Start " function key to start the cycle.
  • Page 72 4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal CAUTION Risk of burns! The metal part of the lid is very hot. Always touch only the plastic part of the lid. 1. Remove the Blue lid from the holder on the DAC Universal at the end of the cycle to allow the instruments to cool down faster.

  • Page 73: Reprocessing With The Green Lid

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL 4.2.6 Reprocessing with the Green lid The Green lid is used to clean and thermally disinfect the Green lid instruments. Tip: If there are many instruments to be reprocessed or to ensure the instruments will be available again quickly, we recommend using a second Green lid.
  • Page 74 4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal CAUTION Risk of heat! When you take items out of the chamber, remember that the chamber and these items can be very hot. Ä There are instruments on the Green lid; the DAC Universal is still open and ready for a cycle.
  • Page 75 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL Check ü The Green lid is completely open. CAUTION Risk of burns! Even when the Green lid is partly or completely open, the instruments are still hot. Allow the extremely hot instruments to cool down after the process.

  • Page 76: Process Documentation

    4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal 4.2.7 Process documentation NOTE The data interfaces may only be connected to devices with fused circuits. The DAC Universal can be connected to transmit process checks as follows: ●...
  • Page 77 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL 4.2.7.1.1 Connecting the printer / setting the printer protocol language To connect the printer to the DAC Universal proceed as follows: ü The DAC Universal is switched on.
  • Page 78 4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal 4.2.7.1.2 Output information of the printer The process data are sent to the printer immediately during the process. All the data of the previous cycle are saved internally in the DAC Universal.
  • Page 79 Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL The rest of the phases and the result “OK” or “FAIL” are printed. The phases are: ● Disinfection ● Error code If "FAIL" is displayed for a phase, then the reprocessing cycle was unsuccessful and must be repeated.
  • Page 80 4 Operation Dentsply Sirona 4.2 Reprocessing with the DAC UNIVERSAL Operating Instructions DAC Universal Output information of the Green lid: The following information is output via the printer: ● Date (YYYY-MM-DD) ● Time (24h) (HH:MM:SS) ● Serial number of the DAC Universal ●...

  • Page 81: Lan Interface

    Dentsply Sirona 4 Operation Operating Instructions DAC Universal 4.2 Reprocessing with the DAC UNIVERSAL 4.2.7.2 LAN interface Documentation software can be connected to the LAN interface for batch documentation, a router may have to be interconnected. Please contact your authorized dealer to procure documentation software.

  • Page 82: Cleaning, Maintenance And Validation

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal Cleaning, maintenance and validation Check & Clean process Frequency: Weekly or every 50 cycles (whichever comes first). After every 50 cycles, the DAC Universal will display the message 04:00 PM shown at the left.
  • Page 83 Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process Enter / confirm Start the Check & Clean function (e.g. check water flow) Stop You can interrupt or cancel the Check & Clean process by pressing the "...
  • Page 84 5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal Overview of tasks to be carried out Frequency Task Weekly or Every 4 Every 3rd Every 2 every 50 weeks or month years or ev-...

  • Page 85: Start Check & Clean

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 5.1.1 Start Check & Clean ü The DAC Universal is switched on and cooled down. ➢ Start the Check & Clean process. The Check & Clean process can be started by either pressing ●...

  • Page 86: Clean The Drain Filter

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 5.1.3 Clean the drain filter Frequency: Weekly or every 50 cycles (whichever comes first). IMPORTANT At approx. 10 cycles per day, the drain filter must be changed every 4 weeks, see "Replace the drain filter / O-rings on the drain filter ...
  • Page 87 Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 8. Clean the inside and outside of the drain filter thoroughly under 04:00 PM running water. 9. Go a step further in this Check & Clean option by pressing the "...

  • Page 88: Replace The Drain Filter / O-Rings On The Drain Filter

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 5.1.4 Replace the drain filter / O-rings on the drain filter Frequency: Every 4 weeks or every 200 cycles (whichever comes first). IMPORTANT The drain filter should be cleaned weekly or after every 50 cycles, see "Clean the drain filter ...
  • Page 89 Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 8. Dispose of the drain filter with the practice waste. Observe the 04:00 PM relevant regulations in your country. 9. Go a step further in this Check & Clean option by pressing the "...

  • Page 90: Insert Check & Clean Lid

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 5.1.5 Insert Check & Clean lid Frequency: Weekly or every 50 cycles (whichever comes first). ü The DAC Universal is switched on and is in the Check & Clean process menu.

  • Page 91: Check The Check & Clean Lid

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 5.1.7 Check the Check & Clean lid Frequency: Weekly or every 50 cycles (whichever comes first). The Check & Clean lid is detected automatically by the DAC Universal software.

  • Page 92: Check The Water Supply Via The Check & Clean Lid

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 5.1.9 Check the water supply via the Check & Clean lid Frequency: Weekly or every 50 cycles (whichever comes first). In order to make sure that the DAC Universal is able to bring water to the chamber and internal channels of the Blue and Green lids correctly, this operation needs to be tested.

  • Page 93: Open Chamber / Remove Check & Clean Lid

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process Ä The DAC Universal pumps water for 10 seconds. 04:00 PM Ä Water comes through the 6 holes in the chamber. 3. Repeat the process if no water appears.
  • Page 94 5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal ü The Check & Clean cap is available. 1. Go to the next Check & Clean option by pressing the " Next Check &...

  • Page 95: Disassemble And Clean The Water Tank

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 11. Inject the water with the syringe through the left hole into the 04:00 PM channel of the Green lid (as shown in the image) Ä...

  • Page 96: Clean The Drain Tank

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 5. Disassemble the water tank by removing the handle, the lid and the 04:00 PM float including the float guide. 6. Go a step further in this Check & Clean option by pressing the "...
  • Page 97 Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 1. Go to the next Check & Clean option by pressing the " Next Check & Clean step " function key. 2. Or go a step further in this Check & Clean option by pressing the "...
  • Page 98 5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 9. Fill the drain tank with tap water. 10. Go a step further in this Check & Clean option by pressing the " Navigate to next step " function key.

  • Page 99: Check The Assembly Of The Adapters

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 18. Replace the condensation tube. 19. Go a step further in this Check & Clean option by pressing the " Navigate to next step " function key.

  • Page 100: Check O-Rings On The Adapters

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 4. Check the attachment of the adapters to the lid by pulling each adapter slightly. 5. If an adapter is loose, tighten the screws with the 1.5 mm Allen key included with the unit.

  • Page 101: Clean The Housing Of The Unit / The Lid And The Chamber

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 5. Repeat for all available adapters. WARNING Risk of contamination! If the O-rings are not placed on the correct notches on the adapter, the instruments and the O-rings can be damaged. Correct cleaning and sterilization / disinfection is not ensured.

  • Page 102: Check The O-Ring On The Water Tank

    5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal Click on the menu item "General documents" and then open the "Care, cleaning and disinfection agents" document. If you do not have any access to the Internet, you should contact your dental dealer to order the list.

  • Page 103: Preparations After The Check & Clean Process

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.1 Check & Clean process 2. Assemble the water tank by inserting the handle, the lid and the 04:00 PM float including the float guide. 3. If you do not have an automatic water connection for your DAC 04:00 PM Universal, fill demineralized/distilled water (water conductivity <...
  • Page 104 5 Cleaning, maintenance and validation Dentsply Sirona 5.1 Check & Clean process Operating Instructions DAC Universal 2. Place a NitraClean tablet in the empty chamber. 04:00 PM 3. Go a step further in this Check & Clean option by pressing the "...

  • Page 105: Biennial Service

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.2 Biennial Service NitraClean cleaning tablets NitraClean cleaning tablets are used for cleaning the empty chamber and internal cleaning of the hoses. The empty chamber and the hoses must be cleaned when needed, or at least in the course of Check &...

  • Page 106: Install A New Lid

    5 Cleaning, maintenance and validation Dentsply Sirona 5.3 Install a new lid Operating Instructions DAC Universal Install a new lid If the lid is closed, the DAC Universal begins to recognize the lid. The display shows the lid type and the serial number.
  • Page 107 Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.5 Adding/replacing the lubrication concentrate 2. Press the black top of the oil bottle to release the transport lock. 3. Insert the oil bottle thread down into the thread of the oil dispenser (next to the water tank).

  • Page 108: Drain The Chamber

    5 Cleaning, maintenance and validation Dentsply Sirona 5.6 Drain the chamber Operating Instructions DAC Universal Drain the chamber If there is too much water left in the chamber, you can manually drain the chamber via the menu: ü The DAC Universal is switched on and ready for operation.

  • Page 109: Uninstallation And Transport

    Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.8 Uninstallation and transport Uninstallation and transport Uninstallation If the DAC Universal needs to be transported, please follow the guidelines below. ü The red transport plug for the chamber is available.
  • Page 110 5 Cleaning, maintenance and validation Dentsply Sirona 5.8 Uninstallation and transport Operating Instructions DAC Universal ü The 3 black caps for the connections are available. 1. Remove the lid (if the lid is shipped with the DAC Universal then it must be packed separately).
  • Page 111 Dentsply Sirona 5 Cleaning, maintenance and validation Operating Instructions DAC Universal 5.8 Uninstallation and transport 15. Place the 3 black caps on the connections. 16. The DAC Universal must be shipped in the original packaging including foam etc. Transport CAUTION Risk of burns! The bottom plate of the DAC Universal can be hot.

  • Page 112: Errors / Display Messages

    6 Errors / Display messages Dentsply Sirona 6.1 Warning messages Operating Instructions DAC Universal Errors / Display messages There are 4 kinds of messages: ● Warning messages ● Process error messages as pop-up messages ● Error messages as pop-up messages ●...

  • Page 113: Error Messages As Pop-Up Messages

    Dentsply Sirona 6 Errors / Display messages Operating Instructions DAC Universal 6.3 Error messages as pop-up messages The symbol appears that the cycle has been discontinued, an alarm signals and the LED flashes. If a process error message appears during the reprocessing cycle, the lid opens and moves up.

  • Page 114: User Messages

    6 Errors / Display messages Dentsply Sirona 6.4 User messages Operating Instructions DAC Universal User messages User messages They cover the cycle start key in order to prevent the cycle from being started if the DAC Universal cannot/must not be started.
  • Page 115 Dentsply Sirona 6 Errors / Display messages Operating Instructions DAC Universal 6.4 User messages ● No water ● Poor water quality ● Front flap on the water tank is still open 6681006 D3708 D3708.201.01.01.02    04.2019...

  • Page 116: Display Messages And What They Mean

    6 Errors / Display messages Dentsply Sirona 6.5 Display messages and what they mean Operating Instructions DAC Universal Display messages and what they mean The display messages are assigned a code number. The code number 04:00 PM 1002 is visible in the upper left-hand corner, next to the error symbol. An example of this is shown on the left.
  • Page 117 Dentsply Sirona 6 Errors / Display messages Operating Instructions DAC Universal 6.5 Display messages and what they mean Code Description Troubleshooting 1407 The water quality is above the limit Check the water quality. value. Check the water in the water tank.
  • Page 118 6 Errors / Display messages Dentsply Sirona 6.5 Display messages and what they mean Operating Instructions DAC Universal Code Description Troubleshooting 2006 The water quality is above the limit Check the water quality. value. Check the water in the water tank.
  • Page 119 Dentsply Sirona 6 Errors / Display messages Operating Instructions DAC Universal 6.5 Display messages and what they mean Code Description Troubleshooting 5003 Error in the drain area Check the drain filter. Check the drain connection and drain hose. If the error occurs repeatedly, please contact your authorized dealer.

  • Page 120: Errors Without A Message

    6 Errors / Display messages Dentsply Sirona 6.6 Errors without a message Operating Instructions DAC Universal Errors without a message Description Corrective action There is water in the chamber after end Drain the chamber and start a cycle. of cycle.

  • Page 121: Accessories, Consumables, Spare Parts, And Tools

    Dentsply Sirona 7 Accessories, consumables, spare parts, and tools Operating Instructions DAC Universal Accessories, consumables, spare parts, and tools The accessories, spare parts and consumables for the DAC Universal are available from your local authorized dealer. For further information about the adapters and the corresponding O- rings, please see the separate operating instructions for adapters.

  • Page 122: Disposal

    8 Disposal Dentsply Sirona Operating Instructions DAC Universal Disposal WARNING Risk of contamination! The DAC Universal must be decontaminated before disposal. On the basis of the Directive 2012/19/EU and the country-specific disposal regulations on waste electrical and electronic equipment, we would like to stress that such equipment must be disposed of accordingly within the European Union (EU).
  • Page 124 We reserve the right to make any alterations which may be required due to technical improvements. © Sirona Dental Systems GmbH Sprache: englisch Printed in Germany D3708.201.01.01.02      04.2019 Ä.-Nr.:  000 000 Sirona Dental Systems GmbH 6681006 D3708 Fabrikstr. 31 Order No    64625 Bensheim Germany www.dentsplysirona.com...
