FarmTek HydroCycle 9" Pro Vertical Microgreen System 10' Manual page 33

ATTENTION: The vertical tubes include
holes of two different diameters. Install
the larger hole to the outside to allow the
flat head bolt to sit flush with the tube
surface when installed.
112770
Finishing Cap
80" Corner Tube
FD15VMGL08000S4
112772
48" Cross Brace
5/16" x 3" Flat
FD15CMGL04800S1
Head Bolt
Use this flat head bolt for all
vertical corner tube connections.
Revision date: 09.25.18 115277

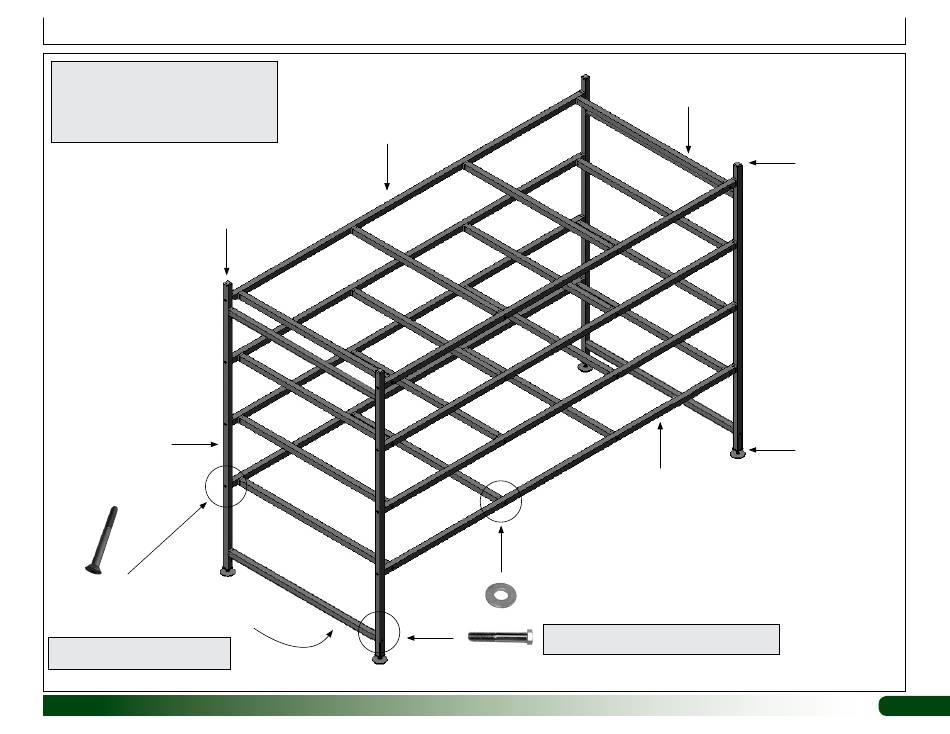

Full Frame Diagram
115" Side Tube
FD15LMGL11500S2
FAME51B
FAG338B
48" Cross Brace
FD15CMGL04800S1
115" Side Tube
FD15LMGL11500S2
Use this hex bolt and washer combination
for all cross brace connections.
112770
Finishing Cap
113030S01
Adjustable Foot
33
