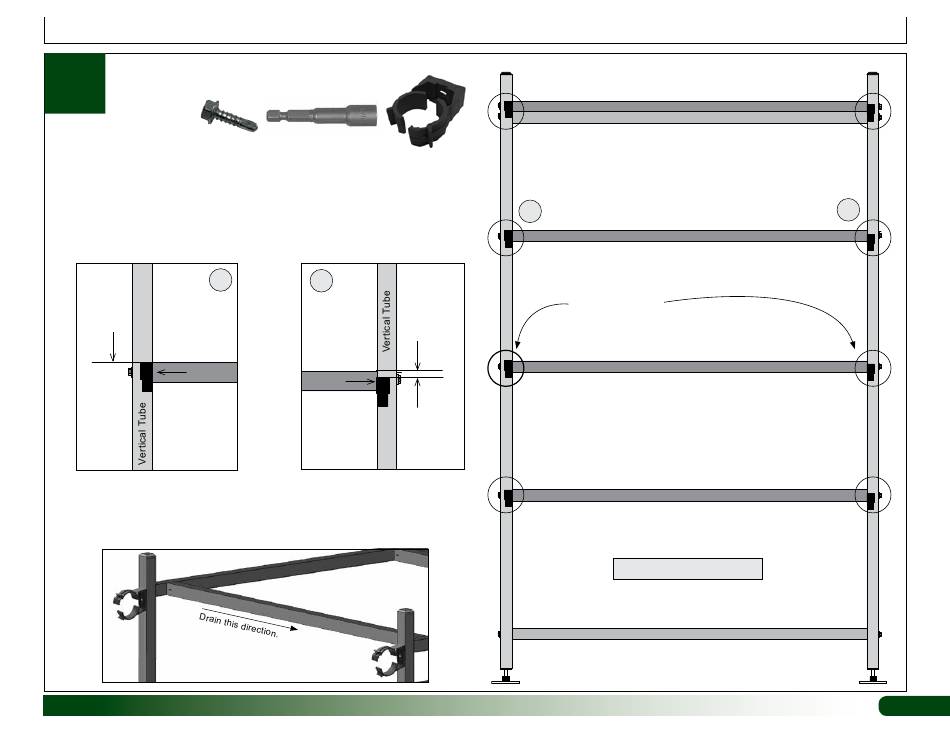

INSTALL 2" DRAIN MANIFOLD HANGERS
112838
Complete these steps.
Tek Screw
1. Determine which direction you want the drain manifold to slope toward
and attach the high end pipe hanger first. See A.
NOTE: Attach 112539 hanger flush with the top edge of the channel
support tube and flush with the inside edge vertical frame tube. Secure
hangers to the frame using 112838 Tek screws and the 100442 driver.
A
Install
hanger
flush to top
of support
tube.
Support Tube
Install hanger
flush to inside
of vertical
tube.
High End of Drain Manifold
2. Move to the low end and attach hangers 1/4" down from the top edge of
the support tube and flush to the inside of the vertical frame tube. See B.
3. Repeat for all remaining 2" drain hangers.
High
End
Frame brace is not shown.
Revision date: 09.25.18 115277
Install 2" Pipe Hangers
100442
Nut Setter 112539 2" Hanger
B
1/4" to 3/8"
down from
top of tube.
Install hanger
flush to inside
of vertical
tube.
Low End of Drain Manifold
Low
End
Channel Support Tube
Horizontal Frame Brace
A
Channel Support Tube
Attach 112539
hangers here.
Channel Support Tube
Channel Support Tube
End View of Main Frame
Horizontal Frame Brace
B
