FarmTek HydroCycle 9" Pro Vertical Microgreen System 10' Manual page 14

Assemble and Attach 2" PVC Drain Manifold
4
ASSEMBLE AND ATTACH 2" PVC DRAIN MANIFOLD—continued

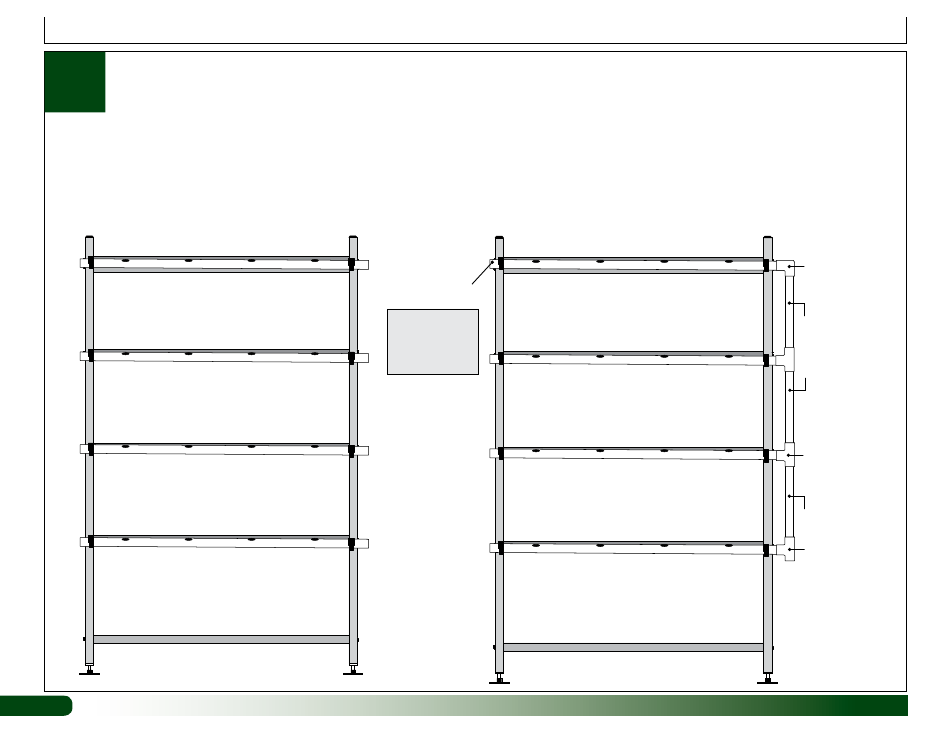

8. Attach all prepared pvc tubes to the frame. Align marks made in Step 2 with the installed hangers. See left diagram below.
9. Assemble the remainder of the main drain manifold as shown in the right diagram below. Dry fit all components before you permanently secure using
pvc primer and WF6990 pvc cement. Apply according to instructions on containers.
ATTENTION: Do not cement WF6717 slip caps to horizontal tubes. These caps are removed to periodically clean drain manifold as needed.
10. Continue with tank preparation.
14
14
High end
of drain
manifold.
WF6717
ATTENTION:
Do not cement
WF6717 fittings
to pvc pipes.
Low
End
WF1576
2" pvc pipe cut
to the required
length.
2" PVC
WF1386
2" PVC
WF1386
115277 Revision date: 09.25.18
