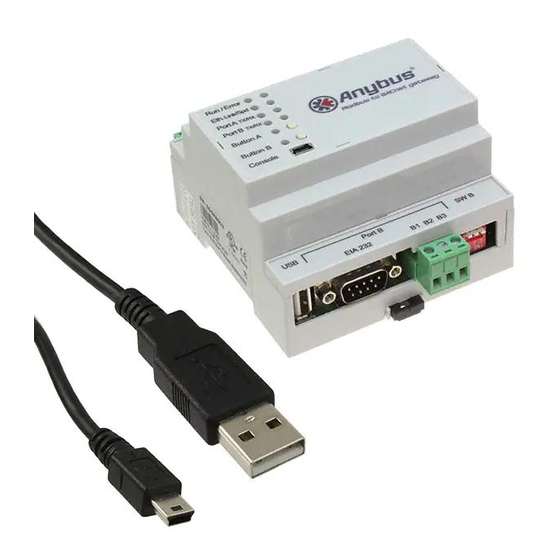

HMS Anybus AB9900 Series Installation Manual

HMS Anybus AB9900 Series Installation Manual

Modbus to bacnet gateway

Advertisement

Quick Links

Modbus to BACnet Gateway
INSTALLATION GUIDE
SCM-1202-044/SP2259 1.0 ENGLISH

Advertisement

loading
Need help?

Need help?

Do you have a question about the Anybus AB9900 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HMS Anybus AB9900 Series

  • Page 1 Modbus to BACnet Gateway INSTALLATION GUIDE SCM-1202-044/SP2259 1.0 ENGLISH...
  • Page 2: Important User Information

    AB of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial Networks AB, reserve the right to modify our products in line with our policy of continuous product development. The information in this document is subject to change without notice and should not be considered as a commitment by HMS Industrial Networks AB.
  • Page 3: Safety Instructions

    Installation 3 (8) Installation This document describes how to install the Modbus to BACnet Gateway. For additional documentation and technical support, please visit the Anybus sup- port website www.anybus.com/support. Safety Instructions This product contains parts that can be damaged by electrostatic discharge (ESD).
  • Page 4: Din Rail Mount

    Installation 4 (8) DIN Rail Mount Mounting Hook the unit onto the upper lip of the rail. Press the unit gently towards the rail until it snaps into place. Removing Pull the tab at the bottom of the unit gently downwards. Pull the bottom end free and lift the unit from the rail.
  • Page 5 Installation 5 (8) LED Indicators, Switches and Connectors A1 A2 A3 A4 Power Port A SW A Ethernet Run / Error Eth Link/Spd Port A TX/RX Port B TX/RX Button A Button B Console SW B Port B EIA 232 B1 B2 B3 Indication Meaning...
  • Page 6 Installation 6 (8) Technical Data, p. 7 regarding terminal wiring and power supply requirements. Observe the correct polarity of the connections. Power Connector (3-pole terminal block) Function Protective Earth Power Ground 24 VAC or +9 to +36 VDC Port A / Modbus RTU EIA-485 (2 x 2-pole terminal blocks) Function A1, A2 Signal Ground...
  • Page 7: Technical Data

    Technical Data 7 (8) Technical Data General Specifications Model name Anybus Modbus to BACnet Gateway Order code AB9900-nnnn (nnnn = number of datapoints) Dimensions (L x W x H) 90 x 88 x 56 mm Operating temperature 0 to +60 °C Storage temperature -40 to +85 °C Humidity range...
  • Page 8 © 2017 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se SCM-1202-044/SP2259 1.0.4090 / 2017-05-10 09:00...
