Master Communication Settings

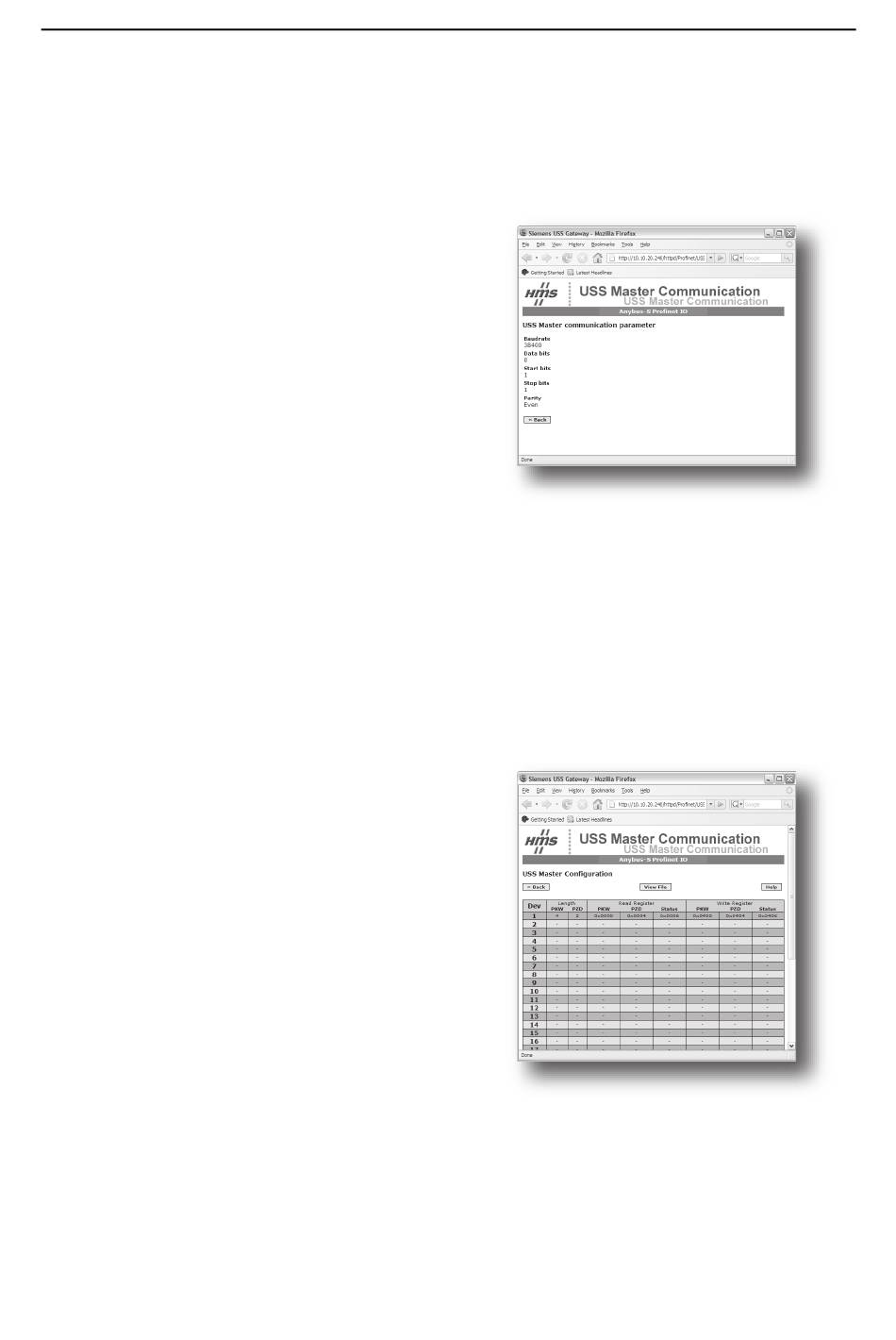

This page presents the communication settings for the USS interface.
• Baudrate
The following baudrates are supported:
- 9600bps
- 19200bps
- 38400bps
(Note that the baudrate is specified in the
PROFINET configuration tool, see 3-5
"Step 2: Specify the Baudrate for the USS
Network")
• Data bits
(fixed to 8)
• Start bits
(fixed to 1)
• Stop bits
(fixed to 1)
• Parity
(fixed to even)

Master Configuration

This page presents an overview of the communication with the slaves on the USS network.
The leftmost column contains the USS device
address, followed by the data sizes (specified in
words) for that device.
The remaining columns reflects how the data is
mapped internally in the gateway.
