SIMATIC Manager (Edit Ethernet Node)

Note: The following example uses the SIMATIC Manager. It is also possible to use the SIMATIC Pri-
mary Setup Tool, see 3-2 "SIMATIC Primary Setup Tool"
To specify the Station Name using the SIMATIC Manager, perform the following steps.
1. Open the SIMATIC Manager.

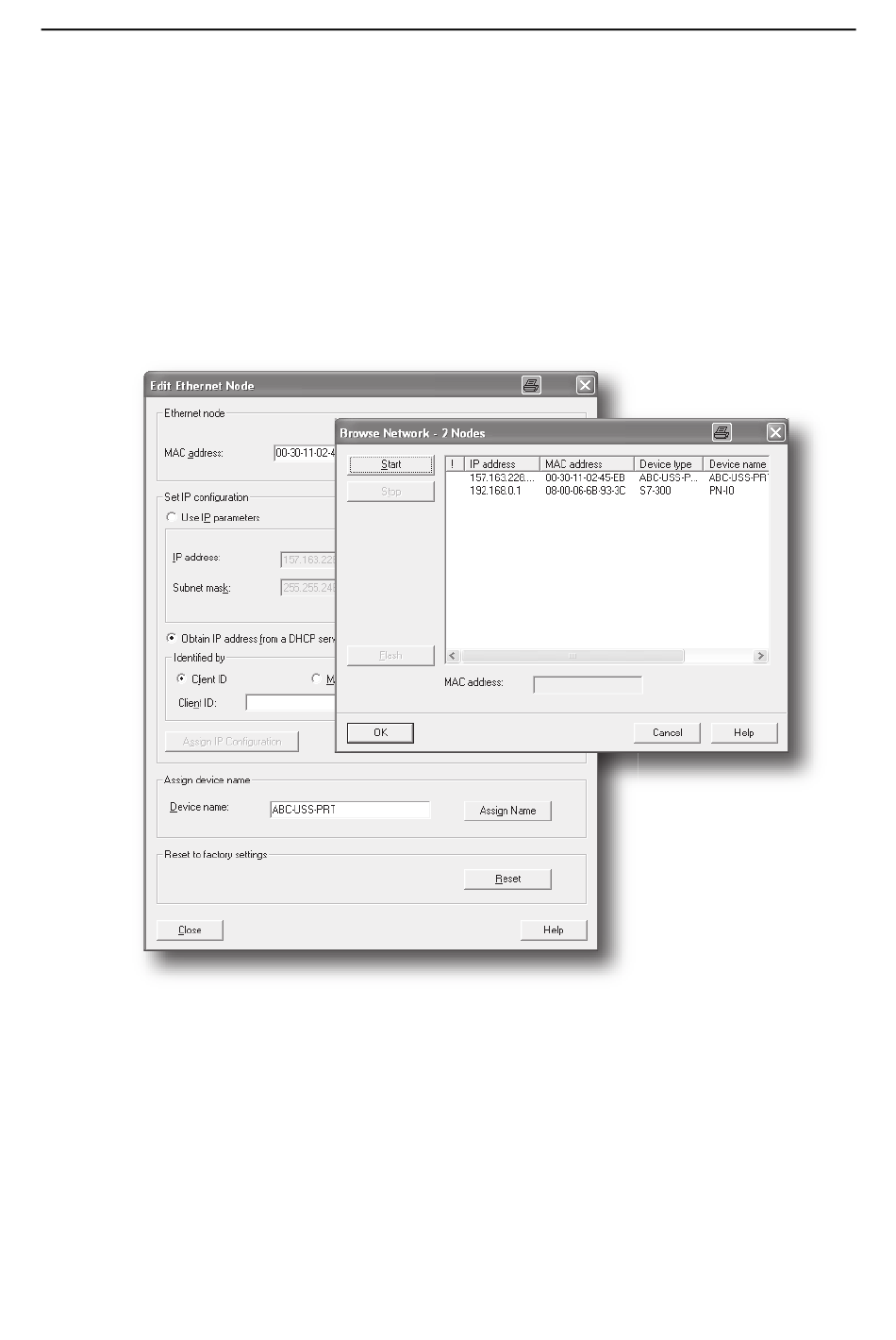

2. Select the 'Edit Ethernet Node...'-entry in the 'PLC'-menu
3. Select the gateway in the list of devices ('Browse Network') and click 'OK'
4. Specify the Station Name in the 'Assign device name'-field.
5. When done, click 'Close'.
See also...
• 3-2 "SIMATIC Primary Setup Tool"
