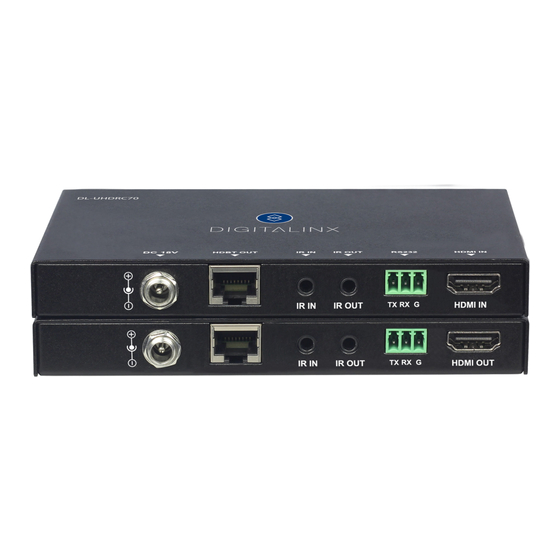

DigitaLinx DL-UHDRC70 Quick Install Manual

Hdbaset extender
Hide thumbs Also See for DL-UHDRC70:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Owner's Manual

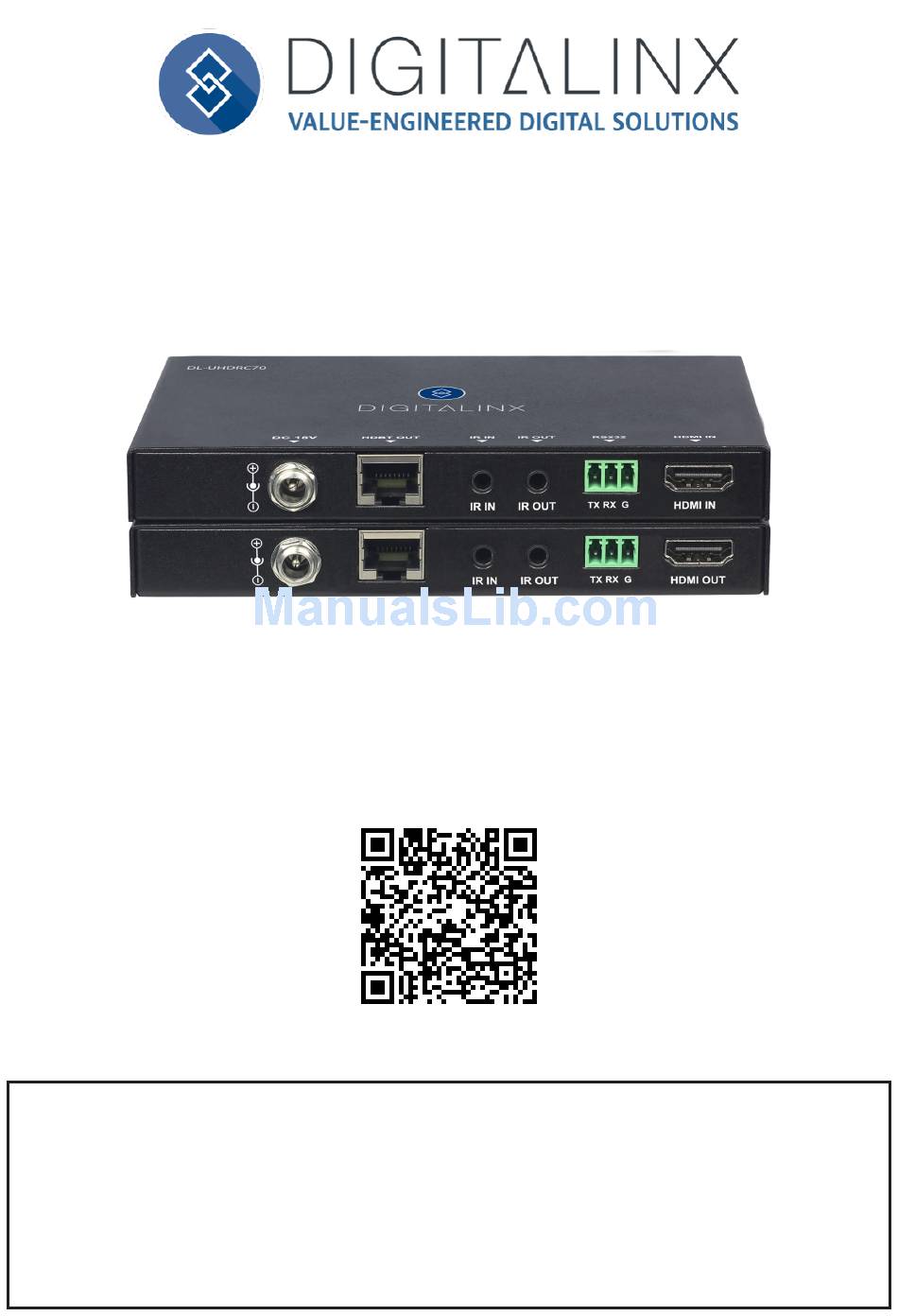

DL-UHDRC70 Quick Install Guide
For complete owners manual go to www.libav.com or use a QR code reader to ac-
Important notice:
•
Do not attempt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
•
To minimize the possibility of equipment damage from electrostatic discharge (ESD), all source and destination
equipment must be powered off during installation.
•
Do not connect the device to a telecommunication outlet wired to unrelated equipment. Doing so may
damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through (point-
to-point).
•
Allow proper ventilation to reduce the risk of thermal failure.
This guide is for quick installation only.
cess the manual via QR code below.
Scan QR Code with your Smart-phone or Tablet

Advertisement

loading

Related Manuals for DigitaLinx DL-UHDRC70

Summary of Contents for DigitaLinx DL-UHDRC70

  • Page 1 DL-UHDRC70 Quick Install Guide This guide is for quick installation only. For complete owners manual go to www.libav.com or use a QR code reader to ac- cess the manual via QR code below. Scan QR Code with your Smart-phone or Tablet Important notice: •...

  • Page 3: Product Overview

    HDMI chipsets. The DL-UHDRC70 is sold only as a set. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.

  • Page 4: Front/Rear Panel

    DL-UHDRC70 Quick Guide Front / Rear Panel DC18V - Locking DC 18V power connector HDBaseT In/Out - Connects transmitter and receiver together; supports PoC / bi-directional power IR IN/OUT (TRANSMITTER) - Connects IR receiver / emitter to control devices via IR IR IN/OUT (RECEIVER) - Connects IR receiver / emitter to control devices via IR RS232 - Serial control pass through port;...
  • Page 5 IR eye into IR IN to pass IR control 7. Apply power to DL-UHDRC70 by connecting the 18V power supply to either the transmitter or receiver. Powering one unit will power the other via PoC Note: On the front panel of the TX/RX check to make sure the Power, Status, HDCP &...

  • Page 6: Technical Specifications

    DL-UHDRC70 Quick Guide DL-UHDRC70 Quick Guide Technical Specifications VIDEO Video Input (Transmitter) (1) HDMI Video Output (Receiver) (1) HDMI Video I/O Connector (Transmitter / Receiver) (1) HDMI type A HDBaseT Connector (Transmitter / Receiver) (1) RJ45 HDBaseT Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B...
  • Page 8 Thank you for your purchase. If you have any product issues please contact technical support by phone at 800-530-8998 or by email at supportlibav@libav.com. DigitaLinx is a brand of: 11675 Ridgeline Drive Colorado Springs, Colorado 80921 USA Phone: 719-260-0061 Fax: 719-260-0075...
