Summary of Contents for e-Flame USA EF-BLT13-36

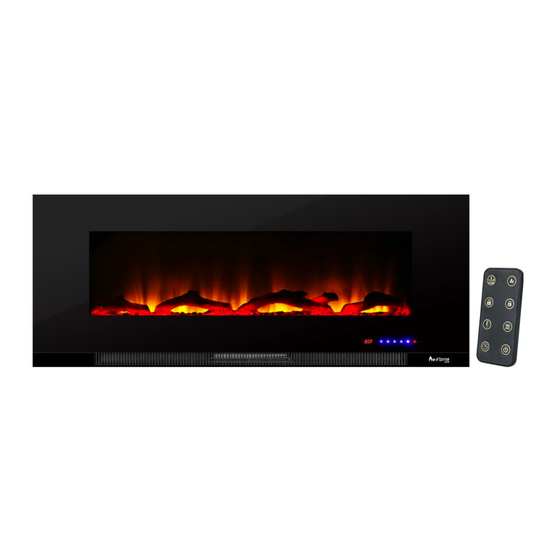

- Page 1 WALL MOUNT ELECTRIC FIREPLACE EF-BLT13-36 EF-BLT13-42 EF-BLT13-50 EF-BLT13-60 OWNERS MANUAL NO VENTILATION REQUIRED PRODUCES SAFE AND EFFICIENT HEAT PLEASE READ THIS ENTIRE MANUAL BEFORE USING UNIT 120-VOLT / 1300-WATT SAVE THIS MANUAL FOR FUTURE USE...
-
Page 2: Important Safety Instructions
CONSUMER SARETY INSTRUCTIONS Read this manual before installing and operating this appliance. Failure to follow these instructions may result in electrical shock, property damage, personal injury, and will void the warranty. Do not store or use gasoline, or any other flammable liquids and vapors, in the vicinity of this appliance. -
Page 3: Hardware Contents
13. This heater has hot and potentially sparking parts inside. Do not use the heater in any areas where gasoline, paint, or any other flammable materials are used or stored. 14. Avoid the use of an extension cord as it may overheat and cause a fire. 15. -
Page 4: Installation Overview
INSTALLATION OVERVIEW Site Selection - Your new electric fireplace may be wall mounted, installed into existing framing, or built into a wall. Review and consider all of the following conditions for installation: Electric fireplace dimensions Unit requires a minimum of two wall studs in order to ensure a secure installation. There are two possible installation methods: built-in and wall-mounted. - Page 5 • Remove the outer glass around the bracket and mounting screws (red arrows) (1) (2) (3) • Remove the outer glass from the fireplace (4) • Take out the foam • Install the outer glass to the fireplace as seem below by lifting the panel and lining up with the top bracket.
- Page 6 CRYSTAL PIECES INSTALLATION 1. Remove the outer glass around the bracket, and mounting screws (red arrows) (1) (2) (3) 2. Carefully remove the glass (4) 3. Remove the log set, and adjust the screws (red arrow) (5) (6) (7) 4. Arrange the crystals where you removed the log set (8) 5.
- Page 7 BUILT-IN INSTALLATION (FOR NEW CONSTRUCTIONS AND RENOVATED AREAS) 1. Select a location that is not exposed to any moisture and is located at least 3-feet away from any combustible materials such as curtains and drapes, furniture, bedding, papers, etc. 2. Place the appliance in your selected location to see how it will look after installation.
-
Page 8: Control Panel Functions
The power cord must not be pinched or placed against any sharp edges. Do not blow or place insulation against the electric fireplace. This electric fireplace is tested and listed for use only with the approved optional accessories. Use of optional accessories not specifically tested for this electric fireplace could void the warranty and/or result in a serious safety hazard. -
Page 9: Heat Settings
CHARCOAL COLOR FIRE – Touch the button to turn the charcoal color fire effect on. There are 10 options for charcoal color change. They are as follows: • C1 – orange • C2 – orange and green • C3 – green •... -
Page 10: Temperature Limiting Control
TEMPERATURE LIMITING CONTROL This electric fireplace is equipped with a temperature limiting control device. Should he fireplace reach an unsafe temperature, the unit will automatically turn off. To reset, turn off and plug the unit, wait 5 minutes, and plug it back in again to continue use. SYMPTOM POSSIBLE CAUSES SOLUTION... - Page 11 CLEANING Turn the heater to the OFF position, and unplug from the outlet. Use a vacuum or duster to keep heater and vent area clean from dust and dirt. The exterior of the electric fireplace should be cleaned with a damp cloth or duster. Do not use any abrasive cleaners, liquid sprays, or any other clear that may scratch the surface.
-
Page 12: Limited Warranty
This product is not intended to be used as a primary heat source. e-Flame USA, it’s directors, officers, or agents, will not be liable to the purchaser or any third party, whether in...
