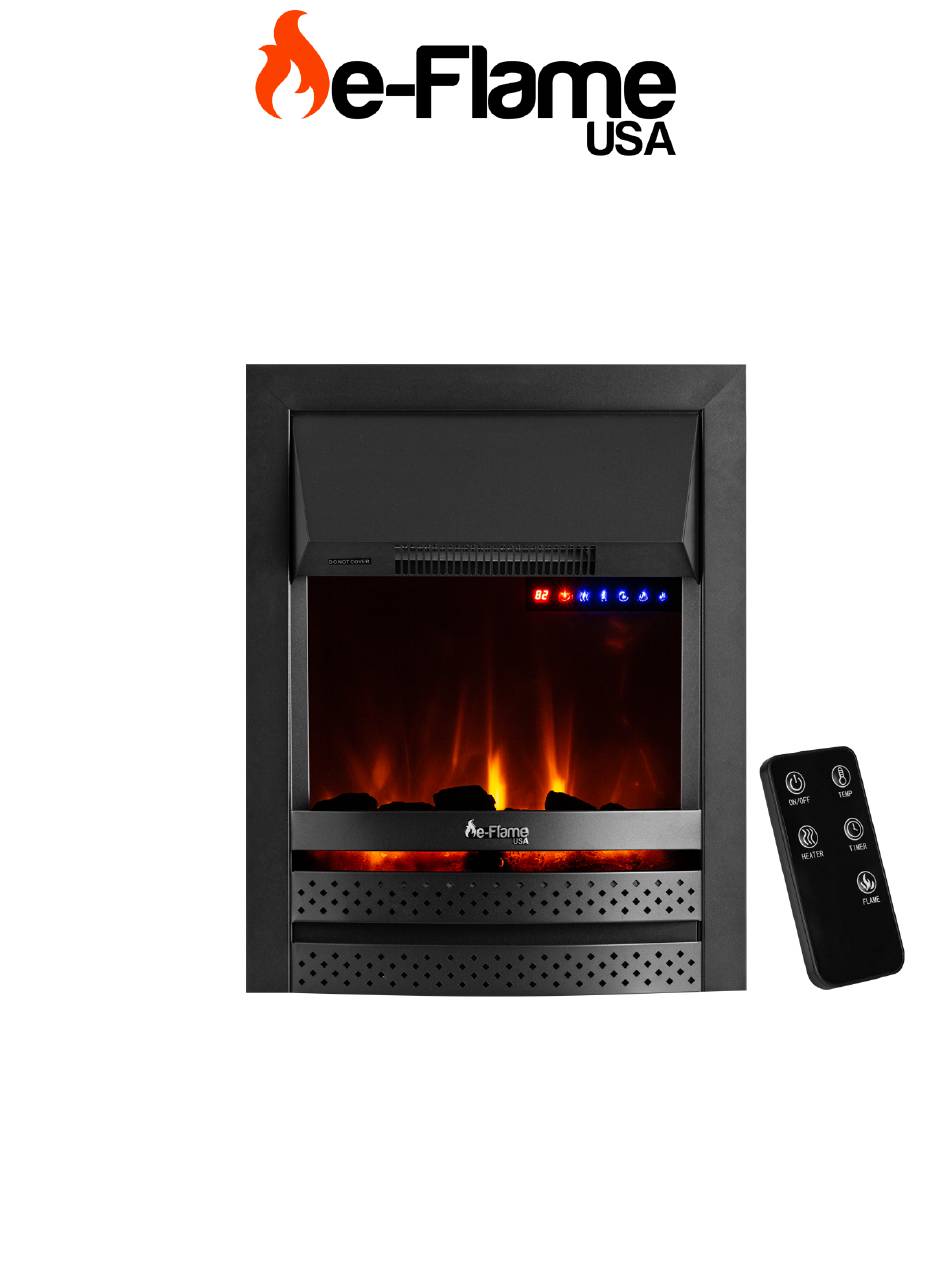

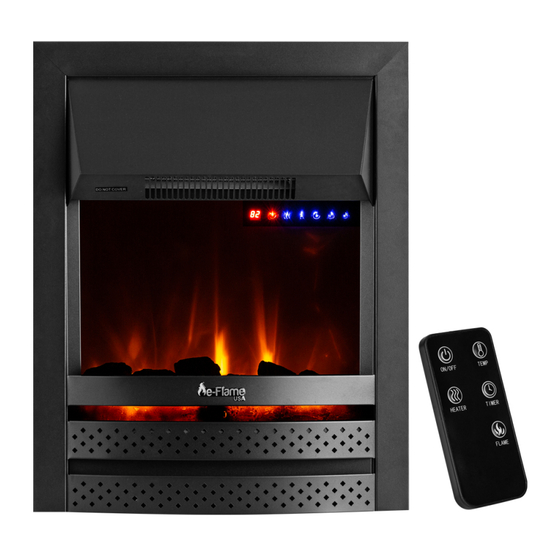

- Page 1 ABBOTSFORD ELECTRIC FIREPLACE INSERT Models: EF-TI16 OWNER’S MANUAL 120V AC; 60 Hz; Maximum power 1500 Watts All electric. No wood or charcoal. No gas. No venting required.
-
Page 2: Important Safety Information
Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury. Keep this owner’s manual for future reference. If you sell or give this CAUTION product away, make sure this manual accompanies this product. - Page 3 l Use only the electric insert with included mantel. NEVER use a mantel from another maker. l NEVER use this electric fireplace insert unless it is properly installed in the correct mantel. l AVOID INJURY FROM TIPPING! Anchor the TV, or other items, to the wall with the anti-tip kits supplied by the manufacturer.
-
Page 4: Tools Required For Installation
The power cord supplied with the heater has three prongs: two flat blades (live and neutral) and one round pin (ground). If a 3-slot receptacle is not available, an adapter MUST be used. The adapter MUST be properly grounded to the outlet box (see figure at right). - Page 5 Fig. 2 Fig. 1 CR2032 NEVER dispose of batteries in fire. Failure to observe this precaution may result in an explosion. Dispose of batteries at your local hazardous material processing center. ALWAYS replace the battery in the remote control with the same type of battery. Failure to do so may result in personal injury or property damage.
-
Page 6: Operation
OPERATION Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Make sure the ON/OFF switch, located on the control panel, is in the OFF position. Plug the power cord into a 120V AC, 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). - Page 7 MOBILE PHONE CONTROL FUNCTIONS Step1. Scan below QR code and download the “Smart Life” app on your mobile phone. Step2. Open the Smart Life app and Log in. If you have existing account, log in directly. Or you need to log in with your wechat / QQ account, or register follow below steps.
- Page 8 4. The verification code will be sent to your mobile phone or email box, check and enter the right code in 60 seconds, or it will need to be resent 5. Set the password. It should contain 6 to 20 characters, including letters and digits. Then you have registered successfully Step 3.
- Page 9 Heat Settings: 1. Click “Add Device Slide your finger to adjust the temperature from 60 F - 82 F. 2. Press the “level 1” button, the heater will start to operate, 750W (LOW HEAT) heater turns on and the fan starts to blow warm air. Press the “Level 2” Button 1,500W (HIGH HEAT) heater turns on and blows hot air.
- Page 10 Control Panel, Heat Enabling Switch, and Remote Control Control Panel Remote Control Control Panel and Remote Control Operation BUTTON OPERATION NOTES / INDICATONS Press the POWER button to turn the The power must be turned ON for the control fireplace on and off. panel and remote control to work.
-
Page 11: Care And Maintenance
The TIMER will turn the fireplace off The timer settings will appear in the digital after a certain amount of time. display. Press the TIMER button to select from the following settings: 00 (off), 1H, 2H, 3H, 4H, 5H, 6H, 7H, TIMER Once at 8H, press the button again to return to 00 (off). -
Page 12: Maintenance
Maintenance Risk of electric shock! DO NOT OPEN! No user-serviceable parts inside! ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. Electrical and Moving Parts: •... - Page 13 1. Make sure the battery is properly installed, and the plastic tab is removed. 2. Make sure the ON/OFF switch on the control panel is turned on. The remote control will not work unless the ON/OFF The remote control does not switch on the control panel is turned on.
- Page 14 USA, or its directors, or agents have been advised of the possibility of such losses, costs, or damages that exceed the purchase price of the product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to the purchaser.
