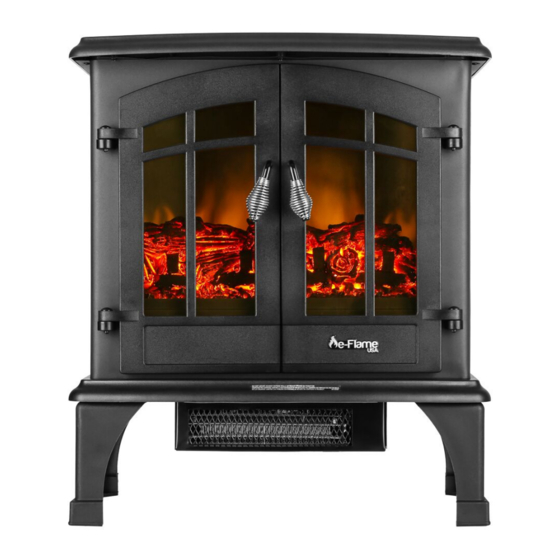

e-Flame USA EF-FS2210 Owner's Manual

Electric fireplace heater
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

PLEASE READ THIS ENTIRE MANUAL BEFORE USING UNIT
110/120-V AC, 60Hz / ADJUSTABLE 750-WATT TO 1500-WATT
ELECTRIC FIREPLACE HEATER
MODEL EF-FS2210
OWNERS MANUAL
NO VENTILATION REQUIRED
PRODUCES SAFE AND EFFICIENT HEAT
SAVE THIS MANUAL FOR FUTURE USE
1

Advertisement

Table of Contents
loading

Related Manuals for e-Flame USA EF-FS2210

Summary of Contents for e-Flame USA EF-FS2210

  • Page 1 ELECTRIC FIREPLACE HEATER MODEL EF-FS2210 OWNERS MANUAL NO VENTILATION REQUIRED PRODUCES SAFE AND EFFICIENT HEAT PLEASE READ THIS ENTIRE MANUAL BEFORE USING UNIT 110/120-V AC, 60Hz / ADJUSTABLE 750-WATT TO 1500-WATT SAVE THIS MANUAL FOR FUTURE USE...

  • Page 2: Important Safety Information

    CONSUMER SAFETY INSTRUCTIONS Read this manual before installing and operating this appliance. Failure to follow these instructions may result in electrical shock, property damage, personal injury, and will void the warranty. Do not store or use gasoline, or any other flammable liquids and vapors, in the vicinity of this appliance.
  • Page 3 13. This heater has hot and potentially sparking parts inside. Do not use the heater in any areas where gasoline, paint, or any other flammable materials are used or stored. 14. Place this heater near a wall outlet so an extension cord is not needed. If an extension cord is necessary, the gauge of the cord must be at least 14AWG, and the rating must be at least 1875-watts.
  • Page 4 PREPERATION • Remove all parts and hardware from the carton and place them on a clean, soft, and dry surface. • Make sure all parts are dry, and that the power cord and plug are not damaged. • Compare the contents with the parts list to make sure nothing is missing. •...
  • Page 5 OPERATION CONTROL PANEL The control panel is located inside the right door on the front panel. Make sure the POWER switch is OFF. Plug the power cord into a 110- Power 120 VOLT 15 AMP grounded outlet only. Press POWER and switch to ON. The POWER indicator light will glow. Flame Effect Flame effect will be visible through the front glass. With the POWER switch to ON, turn the knob to adjust the fame Flame Intensity intensity. The knob only works if the POWER is on. With the POWER switch to ON, press the LOW switch ON. The LOW Heat (Low) indicator light will glow, and warm air will blow out. With the POWER switch and LOW switch both ON, press the HIGH Heat (High) switch to ON. The HIGH indicator light will glow and hot air will blow out. With the heat ON, turn the knob to set the thermostat. When the temperature setting is reached the heater will turn OFF. Temperature Control The TEMPERATURE CONTROL knob will set the thermostat whether the heat setting is HIGH or LOW. Thermostat Override: Turn TEMPERATURE CONTROL knob all the way to the right and the heat will come on. When the heat function is used for the first time, a slight odor may NOTICE be present.

  • Page 6: Temperature Limiting Control

    TEMPERATURE LIMITING CONTROL This heater is equipped with Temperature Limiting Control. Should the heater reach an unsafe temperature (212 degrees F / 100 degrees C), the heater will automatically turn off. To reset: 1. Unplug the power cord from the outlet. 2.

  • Page 7: Maintenance

    MAINTENANCE Risk of electric shock! DO NOT OPEN the main panels! There are no serviceable parts inside (except for lightbulbs). Storage: Store heater in a clean and dry place when not in use. Electric and Moving Parts: The fan and motors are lubricated at the factory, and will not require lubrication for the life of the stove.

  • Page 8: Limited Warranty

    This product is not intended to be used as a primary heat source. e-Flame USA, it’s directors, officers, or agents, will not be liable to the purchaser or any third party, whether in...
