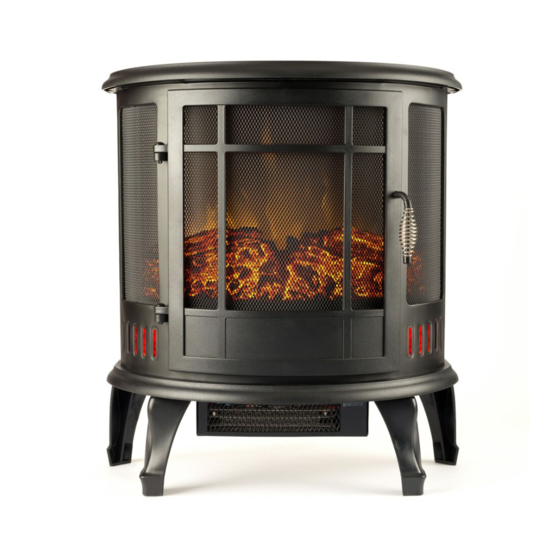

e-Flame USA EF-FS2213 Owner's Manual

Electric fireplace heater
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
PLEASE READ THIS ENTIRE MANUAL BEFORE USING UNIT
120-V AC / ADJUSTABLE 750-WATT TO 1500-WATT
ELECTRIC FIREPLACE HEATER
MODEL EF-FS2213
OWNER'S MANUAL
NO VENTILATION REQUIRED
PRODUCES SAFE AND EFFICIENT HEAT
SAVE THIS MANUAL FOR FUTURE USE
1

Advertisement

Table of Contents
loading

Related Manuals for e-Flame USA EF-FS2213

Summary of Contents for e-Flame USA EF-FS2213

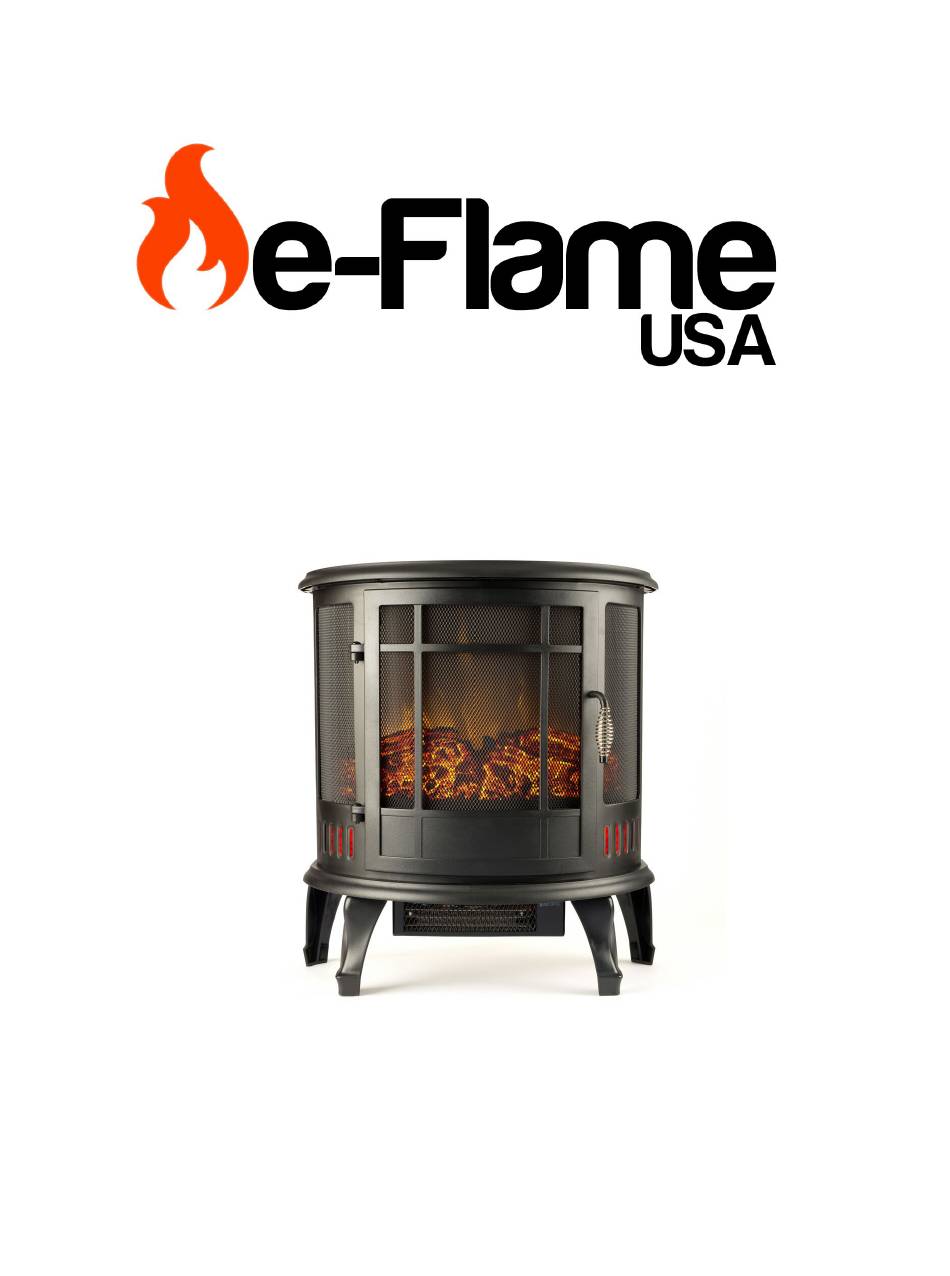

  • Page 1 ELECTRIC FIREPLACE HEATER MODEL EF-FS2213 OWNER’S MANUAL NO VENTILATION REQUIRED PRODUCES SAFE AND EFFICIENT HEAT PLEASE READ THIS ENTIRE MANUAL BEFORE USING UNIT 120-V AC / ADJUSTABLE 750-WATT TO 1500-WATT SAVE THIS MANUAL FOR FUTURE USE...

  • Page 2: Important Safety Instructions

    CONSUMER SARETY INSTRUCTIONS Read this manual before installing and operating this appliance. Failure to follow these instructions may result in electrical shock, property damage, personal injury, and will void the warranty. Do not store or use gasoline, or any other flammable liquids and vapors, in the vicinity of this appliance.
  • Page 3 13. This heater has hot and potentially sparking parts inside. Do not use the heater in any areas where gasoline, paint, or any other flammable materials are used or stored. 14. Place this heater near a wall outlet so an extension cord is not needed. If an extension cord is necessary, the gauge of the cord must be at least 14AWG, and the rating must be at least 1875-watts.
  • Page 4 ASSEMBLY ALWAYS make sure the unit is unplugged before beginning assembly. NEVER move or clean the heater, or change the bulbs, while it is plugged in. A Phillips screwdriver is needed for assembly (not included). 1. Carefully turn the stove upside down and lay it on a clean and soft surface. 2.

  • Page 5: Operation

    OPERATION Control panel: lower right hand corner of the unit. Open the door to access it. ON: Press the power ON switch. The power indicator light will glow, and the flame effect will turn on. OFF: Press the power OFF switch. All functions will turn off. ON/OFF FLAME ADJUSTMENT: This knob controls the brightness of the flame effect.

  • Page 6: Temperature Limiting Control

    TEMPERATURE LIMITING CONTROL This heater is equipped with Temperature Limiting Control. Should the heater reach an unsafe temperature (212 degrees F / 100 degrees C), the heater will automatically turn off. To reset: 1. Unplug the power cord from the outlet. 2.

  • Page 7: Maintenance

    MAINTENANCE Risk of electric shock! DO NOT OPEN the main panels! There are no serviceable parts inside (except for lightbulbs). Storage: Store heater in a clean and dry place when not in use. Electric and Moving Parts: The fan and motors are lubricated at the factory, and will not require lubrication for the life of the stove.

  • Page 8: Limited Warranty

    This product is not intended to be used as a primary heat source. e-Flame USA, it’s directors, officers, or agents, will not be liable to the purchaser or any third party, whether in...
