D.4 Selecting an SBus Module Location
D-6
SPARC
module
A

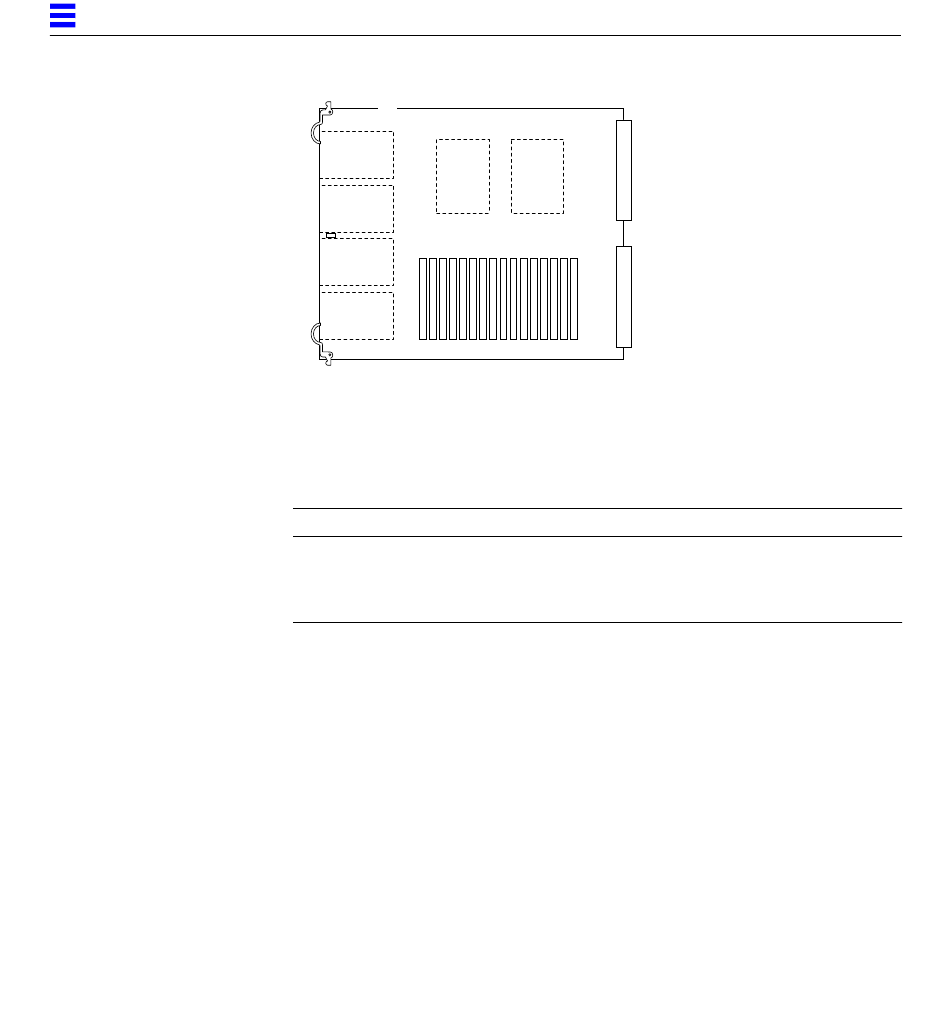

Figure D-2 SuperSPARC Module Locations
The example in Table D-1 shows how to distribute seven SuperSPARC modules
on five system boards. (Board slots 5–9 are empty in this example.

Table D-1 Example of Connector and Slot Priorities

Board Slot
Board present
SuperSPARC Module A
SuperSPARC Module B
Each system board has four SBus slots. Refer to Figure D-3.
The system master is the only system board that has a minimum configuration
requirement for SBus cards. Refer to Table D-2. Populate all other system board
SBus slots for load balance.
SPARCcenter 2000 System Board Manual—October 1994
SPARC
module
B
9 8 7 6 5
No No No No No
— — — — —
— — — — —
4 3 2 1 0
Yes Yes Yes Yes Yes
A A A A A
— — — B B
