2.5 SBus Cards

2.5.1 Removal
2-6
3. Rest the module lightly on the four standoffs and align the module
connector with the system board socket.
4. Hold the module by the edges near the connector and firmly but gently
press the module straight down until the connector is fully seated.
Do not press with a rocking motion; the plastic connector housing may
break.
5. Starting from the side opposite from the connector, press each corner of
the module until the corner is seated on the flange of each standoff.
6. Press down on the tip of each standoff to lock the module in place.

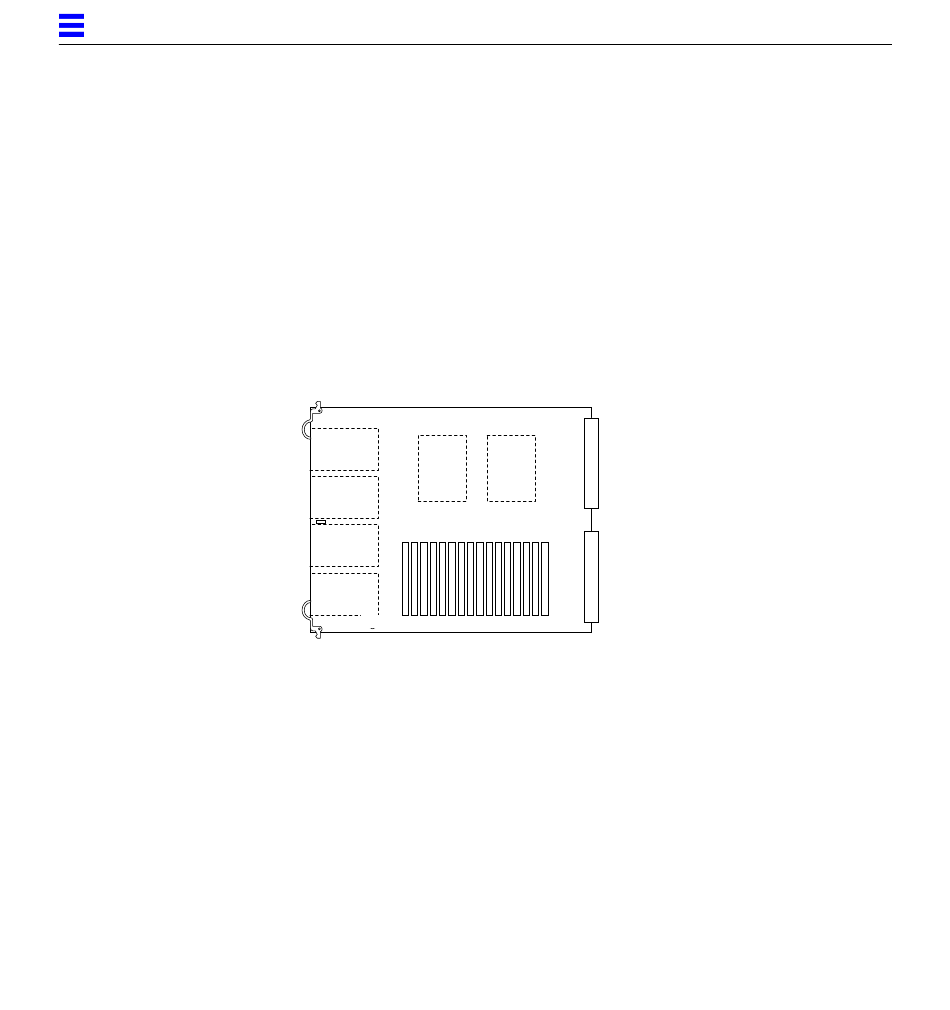

Figure 2-5 shows the SBus slots on a board.
SBus 0
SBus 1
SBus 2
SBus 3
Figure 2-5 SBus Slot Locations
For help in selecting a location for a new SBus card, see Section D.4, "Selecting
an SBus Module Location."
1. Remove the two screws that secure the SBus card to the back panel.
2. Unlock the SBus card by pulling up the tips of the two standoffs, as was
shown in Figure 2-3.
