Atmel QT600 Quick Start Manual page 5

Figure 3 – Atmel QTouch8 Sensor
Board Displayed on CPU Monitor
Connect Kit Modules
2 QTouch16 with ATmega324 and QMatrix 8x8 with ATXMEGA128A1
2.1 By using the table below and following the same procedures as in step number 1 above, you can program and run
both of these boards
Sensor Board / 1.2)
MCU Board To Program
QTouch8 /
6-conductor
ATtiny88
ribbon cable
into ISP pins
ATouch16 /
10-conductor
ATXMEGA128A1
ribbon cable
into JTAG pins
QMatrix 8x8 /
10-conductor
ATmega324
ribbon cable
into JTAG pins
Atmel QT600 Quick Start Guide

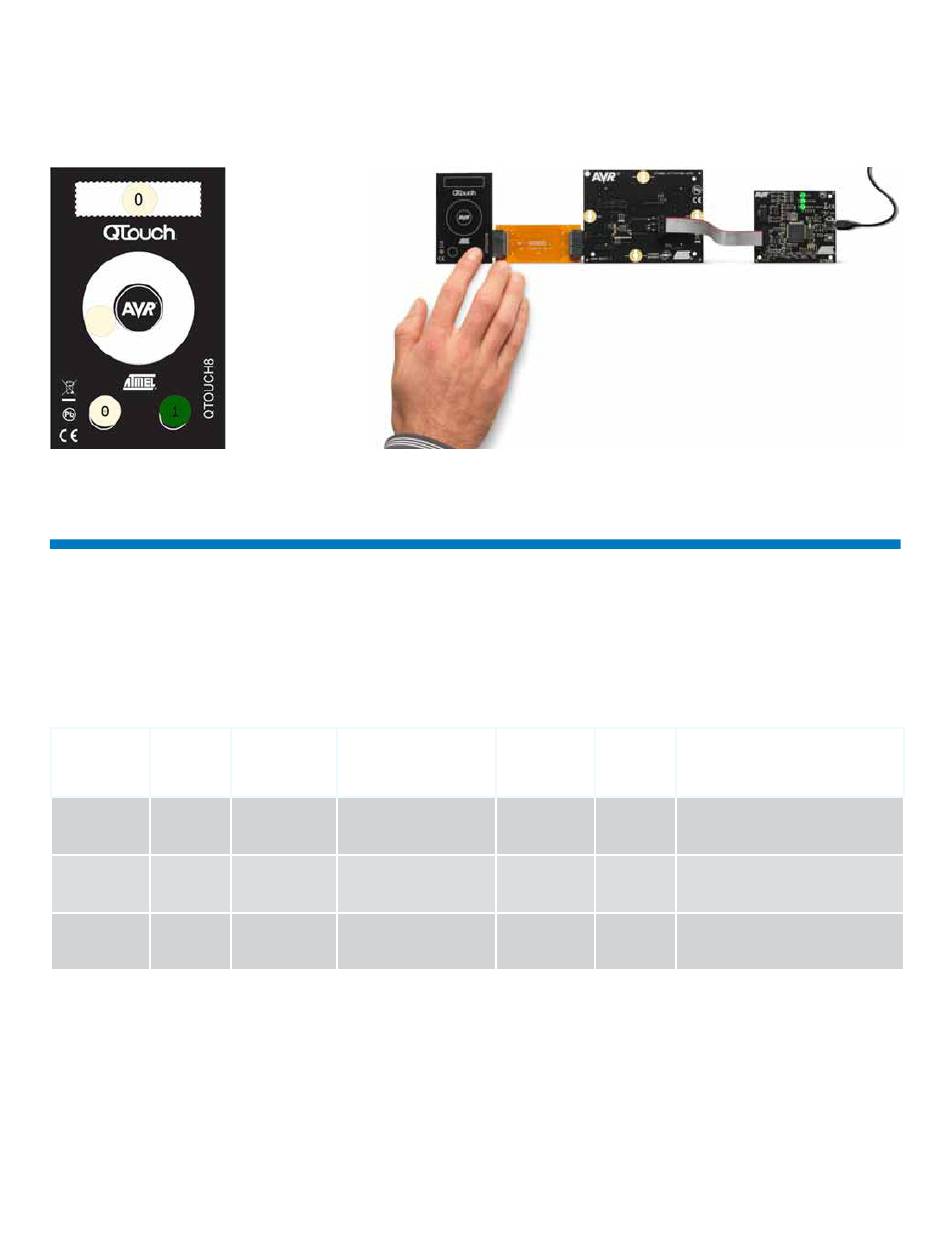

Figure 4 – Complete Set-up for the Atmel QTouch8 sensor board: The sensor board is
connected to the ATtiny88, which in turn is connected to the interface board
1.6.1) 1.61)
Main Lab - Device Main Tab - Programming Mode
and Signature Bytes and Target Settings
ISP Mode
ATtiny88 (Settings = ISP Frequency =
200kHz)
JTAG Mode (Settings = 'Target
ATxmega128A1 device is not part of a JTAG daisy
chain')
JTAG Mode (Settings = 'Target
ATmega324PA device is not part of a JTAG daisy
chain')
Atmel QT600 Quick Start Guide
1.7) 1.11)
HW Setting tab To Program
and Run
10-conductor
VTarget = Target
ribbon cable
Voltage: 3.3V
into TOUCH
(click Write)
DATA
10-conductor
VTarget = Target
ribbon cable
Voltage: 3.3V
into TOUCH
(click Write)
DATA
10-conductor
VTarget = Target
ribbon cable
Voltage: 3.3V
into TOUCH
(click Write)
DATA
Touch Solutions
1.8)
Program Tab --> Flash Hex Files
c:\Programs Files\Atmel_QTouch_Libaries_4.3\
Generic_QTouch_Libraries\AVR_Tiny_Mega_
XMega\
QTouch\example_projects\
QT600_ATtiny88_gnu.hex
QTouch\example_projects\
QT600_ATxmega128a1_qt16_gnu.hex
QMatrix\example_projects\
QT600_ATmega324_qm64_gnu.hex
4
