Large-Medium
TV Articulated Arm

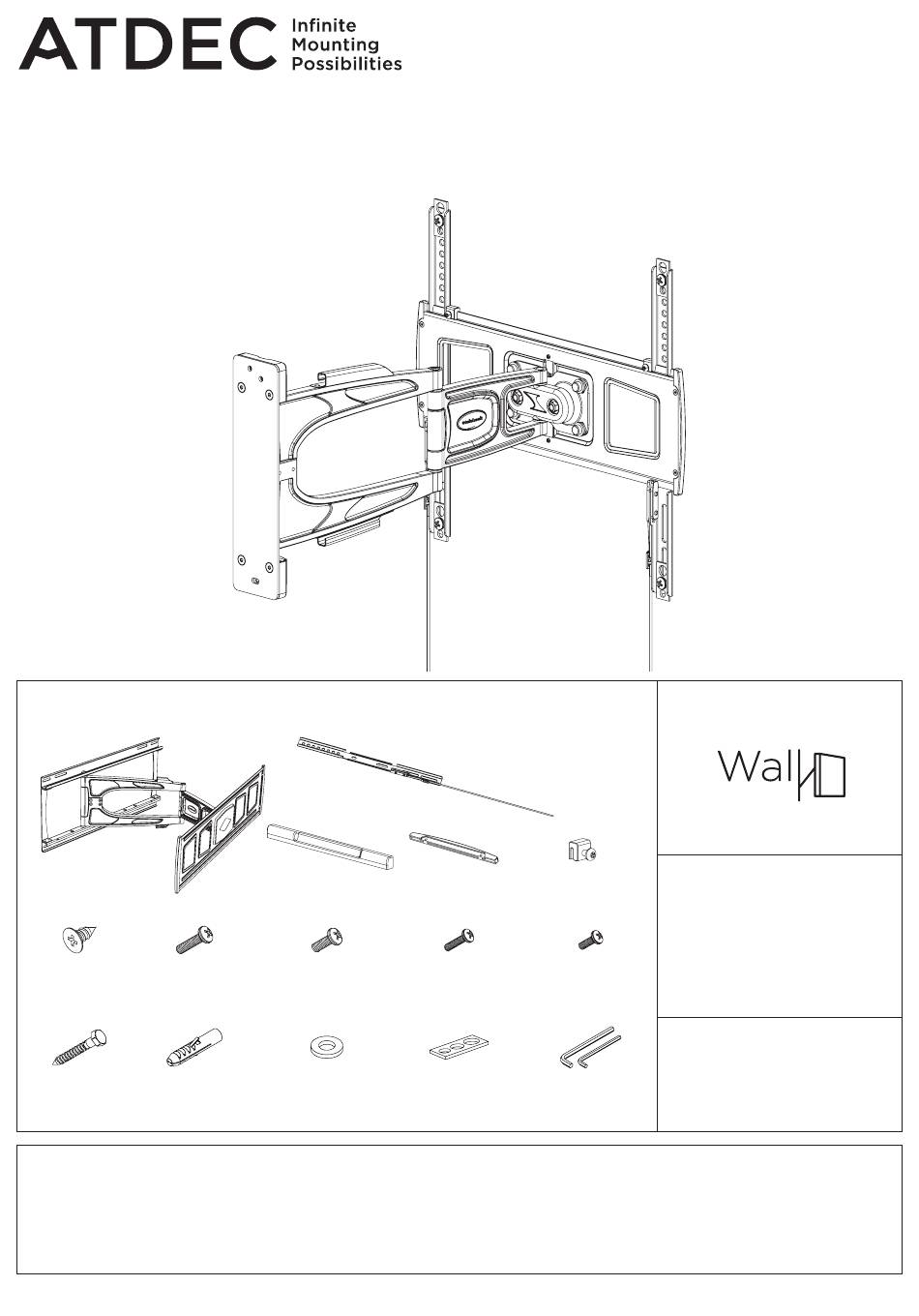

COMPONENT CHECKLIST
A
Arm/Wall
Mount (x1)
G
F
Display
End Cap
Mounting Screw
Screw (x4)
M8x25mm (x4)
K
L
Coach Screw
Nylon Anchor
(x4)
(x4)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product supports a maximum load of 35kg (77lbs).
! This product supports VESA mounting hole configurations 200mm wide x 100mm high to 700mm wide x 500mm high.
! The manufacturer accepts no responsibility for incorrect installation.
B
Mounting Bracket
(x2)
C
Top Cap (x2)
End Cap (x2)
H
Display
Display
Mounting Screw
Mounting Screw
M8x16mm (x4)
M6x25mm (x4)
M
Washer
Multiwasher
(x4)
D
E
Locking Block (x2)
I
J
Display
Mounting Screw
M6x16mm (x4)
N
O
5mm/4mm
(x4)
Allen Key (x1)
Installation Guide
TH-3060-UFL
REQUIRED TOOLS
• Power drill
• 5mm (0.2") drill bit
• 10mm (0.39") masonry
drill bit
• Phillips head screw driver
• 13mm (0.5") socket
wrench or shifter
WEIGHT RANGE
0 - 35
kg
(0 - 77
)
lb
TH-3060-UFL Page 1 of 4
Advertisement
Related Manuals for Atdec TH-3060-UFL
Summary of Contents for Atdec TH-3060-UFL
-
Page 1: Installation Guide
! This product supports a maximum load of 35kg (77lbs). ! This product supports VESA mounting hole configurations 200mm wide x 100mm high to 700mm wide x 500mm high. ! The manufacturer accepts no responsibility for incorrect installation. TH-3060-UFL Page 1 of 4... - Page 2 Note: Use a stud finder to accurately locate the centre Screws and Nylon Anchors supplied. of the stud. Ensure that all screws fix securely into stud. 3. Attach Top Caps to the installed Arm/Wall Mount Top Cap SLIDE SLIDE Top Cap TH-3060-UFL Page 2 of 4...
- Page 3 WallMount. Push down Display into catch. Release Spring Lock Ties to secure Display. Note: Ensure that Spring Lock is fully engaged. 6. Attach Locking Blocks to fully secure the Display Locking Blocks Back of Display TH-3060-UFL Page 3 of 4...
-
Page 4: Cable Management
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20190814 TH-3060-UFL Page 4 of 4 atdec.com | atdec.com.au...
