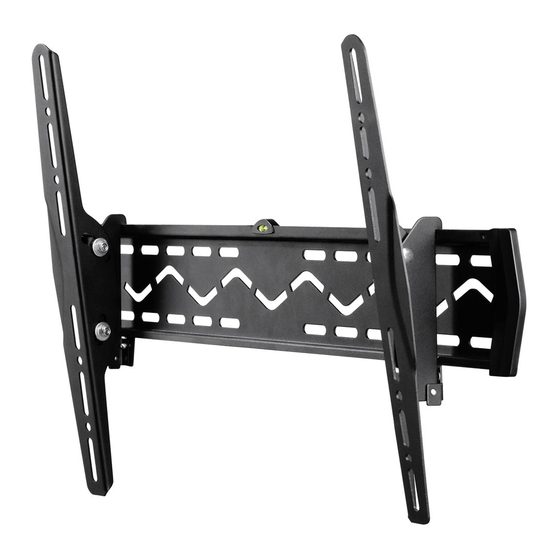

Atdec TELEHOOK TH-3060-UT Installation Instructions

TH-3060-UT

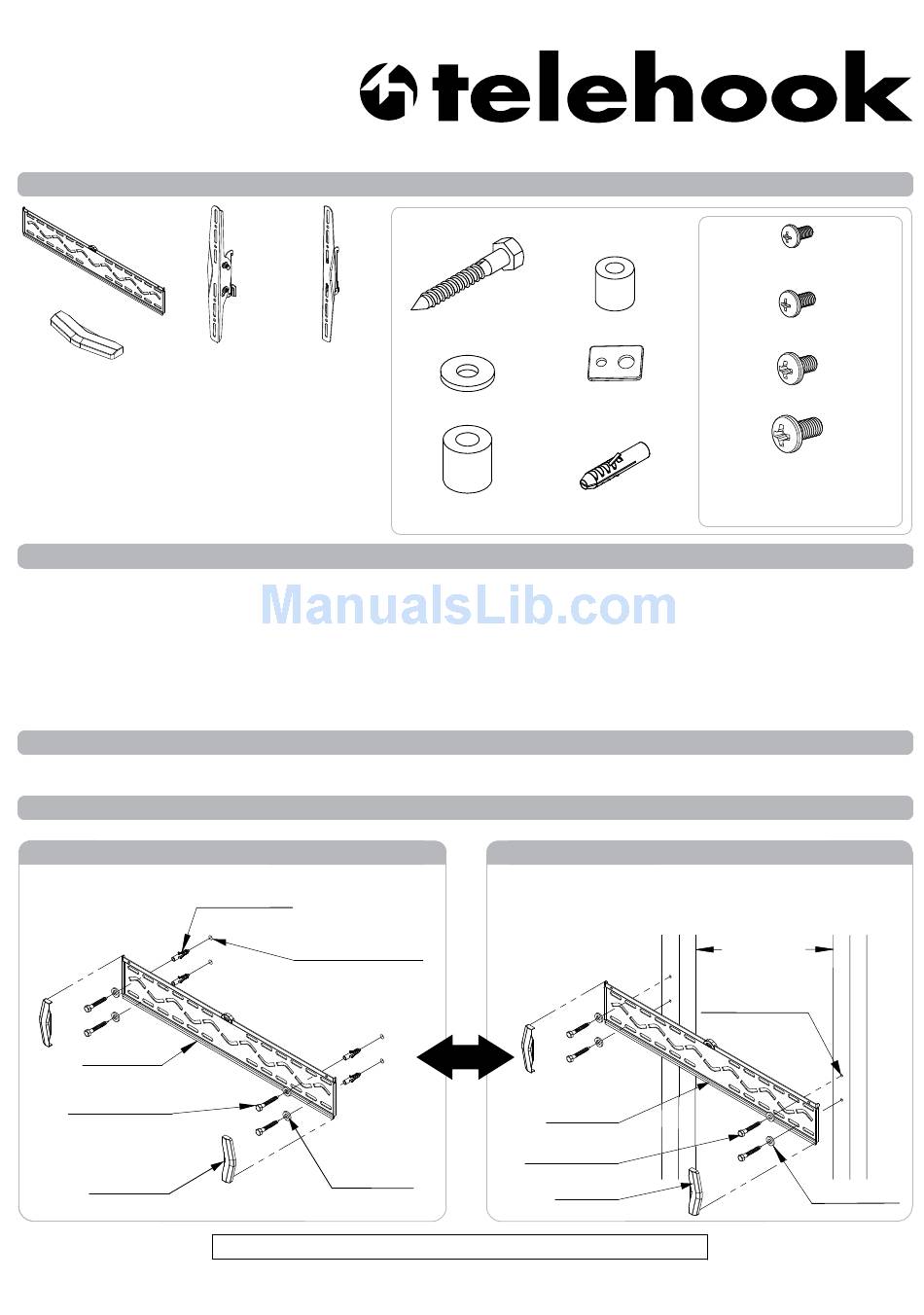

Component Checklist
Wall Plate
Left Mounting
End Cap (x2)
Tools Required:
• Power Drill
• 5mm ( ") drill bit
0.2
• Phillips Head screwdriver
• 10mm ( ") masonry drill bit
0.39
• 10mm ( ") Socket Wrench or Shifter
0.39
IMPORTANT INFORMATION
! IMPORTANT - Install Telehook 3060 Wall Mount as per Installation Instructions.
! This product supports a maximum load of 50kg (110lbs).
! This product only supports displays with mounting hole configurations from 100mm wide x 100mm
high up to 600mm wide x 400mm high.
! The manufacturer does not accept responsibility for incorrect installation.
! Before installing this Telehook product, please check the display ventilation requirements with your
LED/LCD manufacturer.
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Mounting the Wall Plate
Masonry Wall
Wall Plate
Coach Screw
End Cap
Right Mounting
Bracket Bracket
Nylon Anchor
10mm ( 0.39
depth: 55mm
M6 Washer
Tip: Use the built-in spirit level to ensure wall plate is horizontal

Installation Instructions

Hardware
Coach Screw (x4) M5/M6 Spacer (x4)
M6 Washer (x4) Multi-washer (x4)
M8 Spacer (x4) Nylon Anchor (x4)
Note: Use a stud finder to accurately locate the centre of
the stud. Ensure that all screws fix securely into the stud.
") hole
(2.2")
OR
Wall Plate
Coach Screw
End Cap
Flat screen wall mount | tilt
M4x16/25/30mm (x4 each)
M5x14mm (x4 each)
M6x14/30mm (x4 each)
M8x 20/30mm (x4 each)
Display Mounting
Timber Stud
Timber Stud
5mm (
0.2
depth: 55mm
Screws
") hole
(2.2")
M6 Washer
