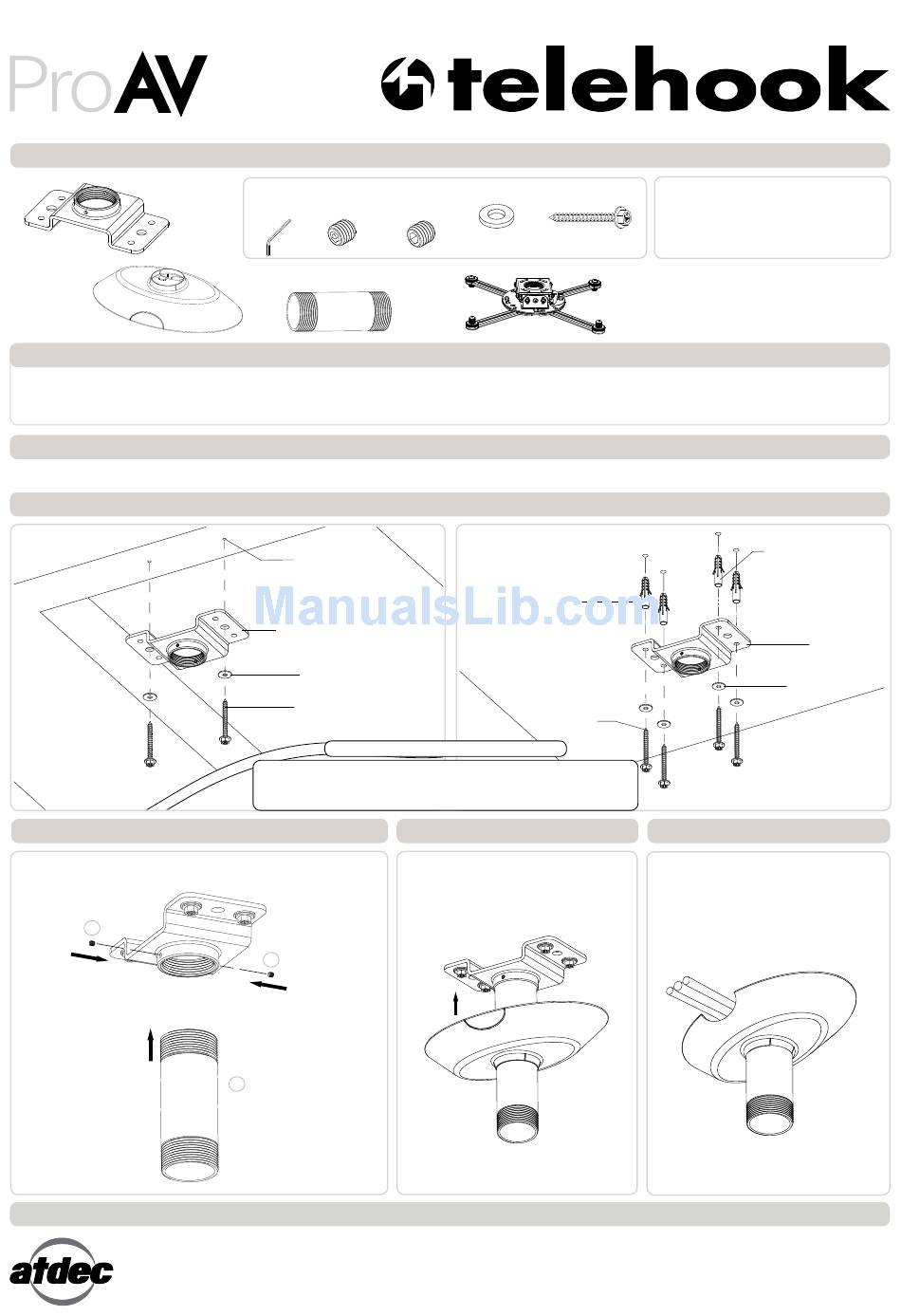

Atdec TH-PFK Installation Instructions

TH-PFK

Component Checklist

Mount
Cover

IMPORTANT INFORMATION:

! IMPORTANT - Install Telehook Ceiling Mount as per installation instruction.
! This product supports a maximum load of 25kg (55lbs.).
! The manufacturer accepts no responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the component checklist and hardware above.

Step 2. Ceiling Mount

Timber Stud

Step 3.

Secure pole by inserting
standard or security set
screws using supplied
Allen key
2
To complete installation please jump to Step 5 of the TH-PF installation manual
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 21.03.13 ©
Security Security Set Standard Set
Allen Key Screw (x2) Screw (x2)
3" Pole
Ø4.5mm x 65mm
deep Drilled Hole
Mount
M6 Washer
Coach Bolt
TIP: Use Mount as a drilling template.
IMPORTANT! Any structural elements must be capable of
supporting the combined weight of all the equipment and devices
being mounted. If in doubt, consult a structural engineer.
2
1
Screw in 3" Pole
Pro AV Projector Ceiling Mount with 3" Pole
HARDWARE
M6 Washer (x4)
Coach Bolt (x4)
Masonry
NYLON ANCHORS
NOT SUPPLIED
Coach Bolt

Step 4.

Clip on Cover

Installation Instructions

Tools Required:
• Power Drill
• 4.5mm(0.18") Drill Bit
• 10mm (3/8") Socket Wrench Shifter
• Phillips Head Screw Driver
TH-PF
Pro AV Projector Mount
Holes to Suit Anchors
Step 5.
Side panels can be
snapped off to provide
cable route
Mount
M6 Washer
