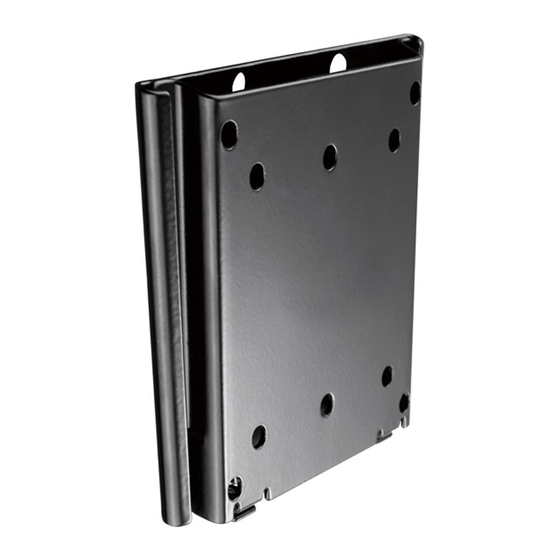

Atdec TH-1026-VF Installation Instructions

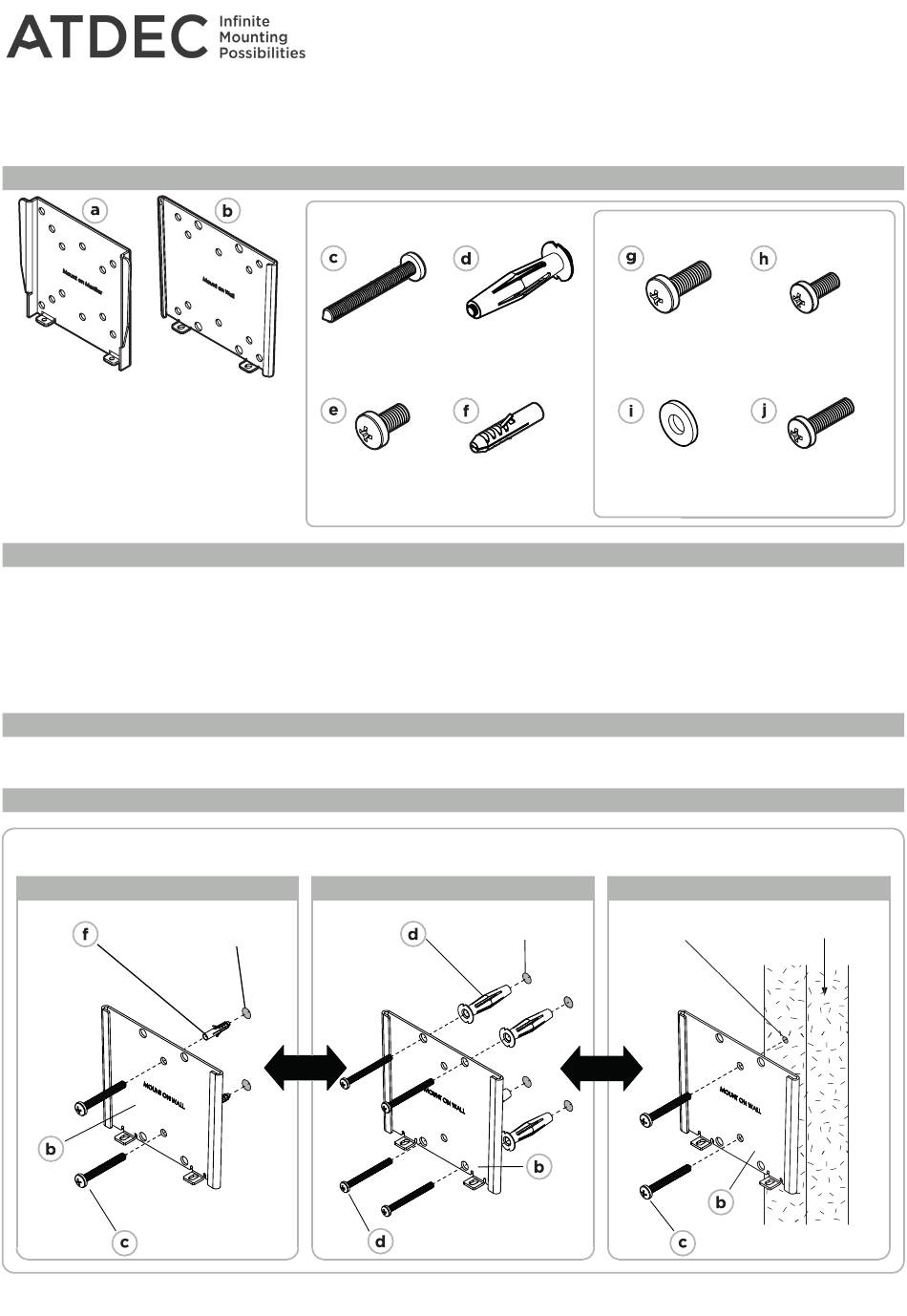

Component Checklist

Display Wall
Plate Plate

Tools Required:

• Power Drill
• Phillips Head screwdriver
• 8mm (5⁄16) masonry drill bit
• 10mm (⅜) drill bit
• 4mm (3⁄16) drill bit
• Spirit Level

IMPORTANT INFORMATION

! IMPORTANT - Install TH-1026-VF as per Installation Instructions.
! This product supports a maximum load of 30kg (66lbs). Maximum supported screen size is 27".
! This product only supports VESA compliant displays with 75mmx75mm (3"x3") and 100mmx100mm
(4"x4") mounting hole patterns. The product can be mounted on any device with these hole patterns,
but please check device manufacturer's specification to ensure safety.
! The manufacturer does not accept responsibility for incorrect installation.

Step 1. Check Components

Check you have received all parts against the Component Checklist and Hardware shown above.

Step 2. Mounting the Wall Plate

Tip: Use a spirit level to ensure wall plate is horizontal
Masonry Wall
Hardware
Self-Tapping
M5x10mm
8mm (5⁄16") Hole
OR

Installation Instructions

TH-1026-VF
Flat Screen Wall Mount | Fixed
Drywall Anchor
Screw
(x4)
(x2)
Plastic Anchor
(x2) (x2)
Drywall
10mm (⅜") Hole
Display Mounting Screws
M5x14mm
(x4)
5mm washer
(x4)
Timber Stud
4mm (3⁄16") Hole
OR
M4x10mm
(x4)
M4x16mm
(x4)
Timber Stud
