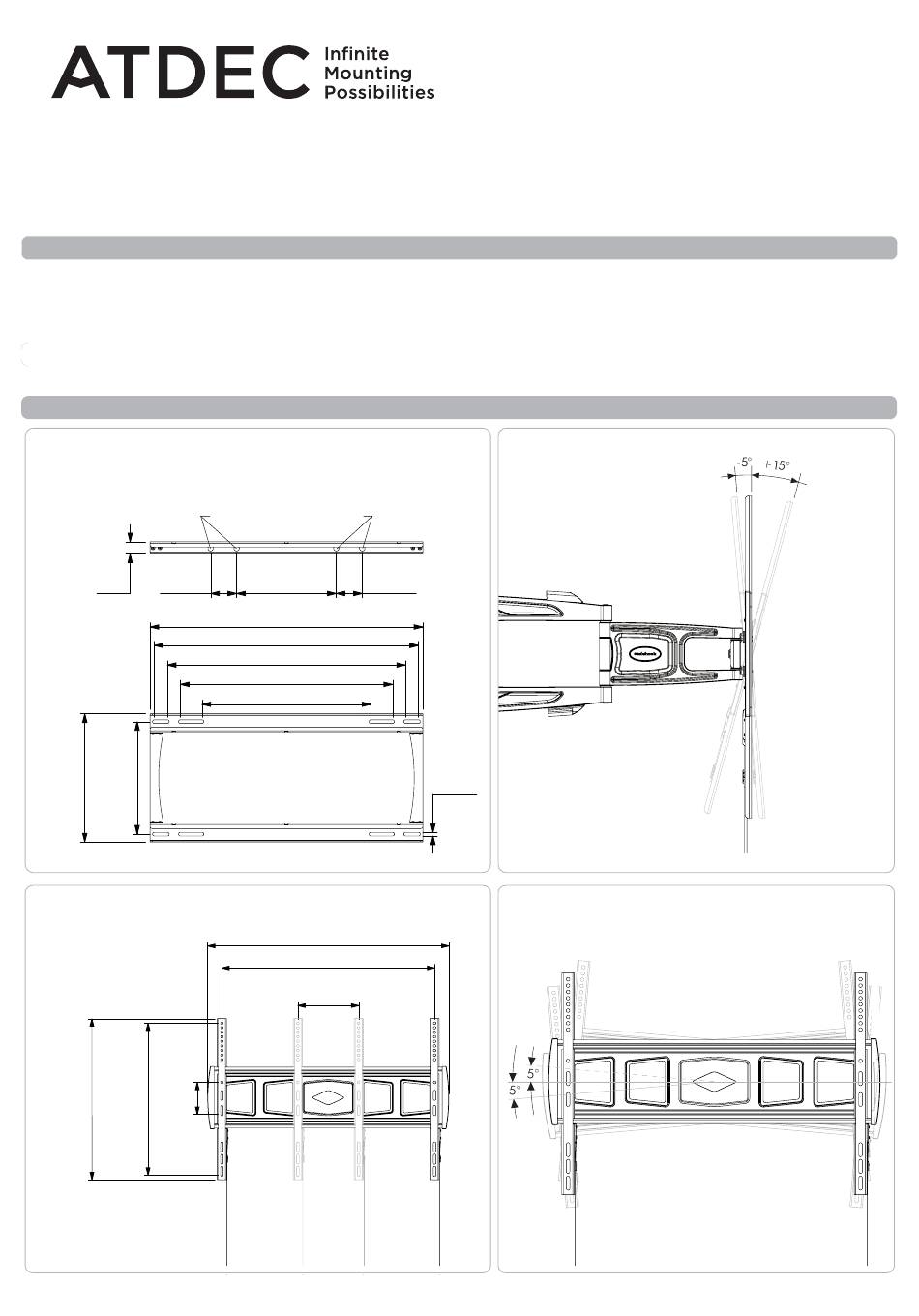

Large-Medium
TV Articulated Arm
General Features
Maximum Weight: 35kg (77lbs)
Screen Mounting Compatiblity: From minimum 200mm wide x 100mm high to maximum 700mm wide x 500mm high.
Fasteners: All fasteners included
Warranty: 10 years limited
Dimensions
WALL MOUNT
The Wall Bracket can be mounted to either:
Timber Stud Wall or Masonry Wall
Alternative Arm Fixing Points
28mm
60mm
(1.1")
(2.36")
296mm
260mm
(11.65")
(10.24")
SCREEN MOUNTING COMPATIBILITY
500mm
105mm
530mm
(19.7")
(4.13")
(20.87")
max.
min.
Color: Black
230mm
60mm
(9.05")
(2.36")
630mm (24.8")
610mm (24")
550mm (21.65")
490mm (19.29")
390mm (15.35")
794mm (31.25")
700mm (27.56") max.
200mm
(7.87")
min.
TILT ADJUSTMENT
8.50mm
(0.33")
RANGE OF HORIZONTAL MOVEMENT
Installation Guide
TH-3060-UFL
TH-3060-VFL
Page 1 of 2
