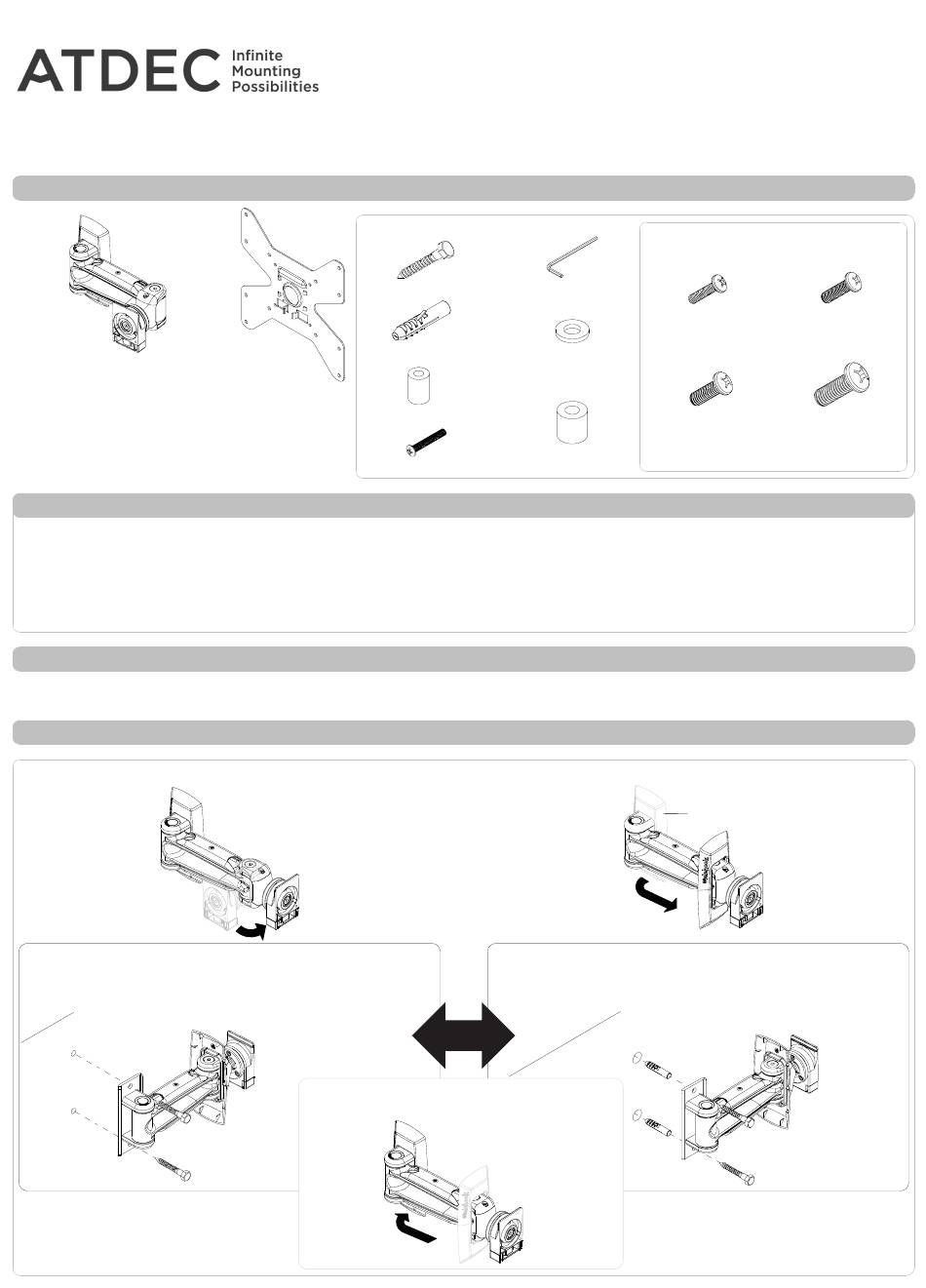

Atdec TH-1032-VFM Installation Instructions

Component Checklist
Arm Assembly
Tools Required:
• Power Drill
• 6mm (0.25") Drill Bit
• 10mm (0.4") Masonry Drill Bit
• Phillips-head Screwdriver
• 13mm (0.5") Socket Wrench or Shifter
IMPORTANT INFORMATION:
! IMPORTANT - Install 1032 Flat Screen Wall Mount as per Installation Instructions.
! This product supports a maximum load of 25kg (55lbs).
! This product supports VESA mounting hole configurations: VESA plate, 75x75mm, 100x100mm, 200x100mm,
and 200x200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check you have received all parts against the component checklist and Hardware above.
Step 2. Attaching Arm to the Wall
Remove the Arm from the packaging and open fully.
Timber Stud Wall
- Drill two 6mm (0.25") diameter holes, 50mm (2") deep.
- Secure the Mounting Plate to the wall using the Coach
Bolts supplied.
TH-1032-VFM Flat Screen Wall Mount / Full Motion
Hardware
Coach Bolt (x2)
Concrete Anchor (x2)
VESA Plate
M4/5 Spacer (x4)
Security Screw (x1)
Slide the Wall Plate Cover back along
the arm, and push flat against the wall.
Installation Instructions
3mm Allen Key
M4/M5 Washers
(x4 each)
M6/8 Spacer (x4)
Un-clip the Wall Plate Cover and slide down the arm.
Masonry Wall
- Drill two 10mm (0.4") diameter holes, 50mm (2") deep.
- Secure the Mounting Plate to the wall using the Coach
Bolts and Concrete Anchors supplied.
OR
Display Mounting Screws
M4x16/25mm M5x16/25mm
(x4 each)
(x4 each)
M6x16/30mm M8x16/30mm
(x4 each) (x4 each)
Wall Plate Cover
