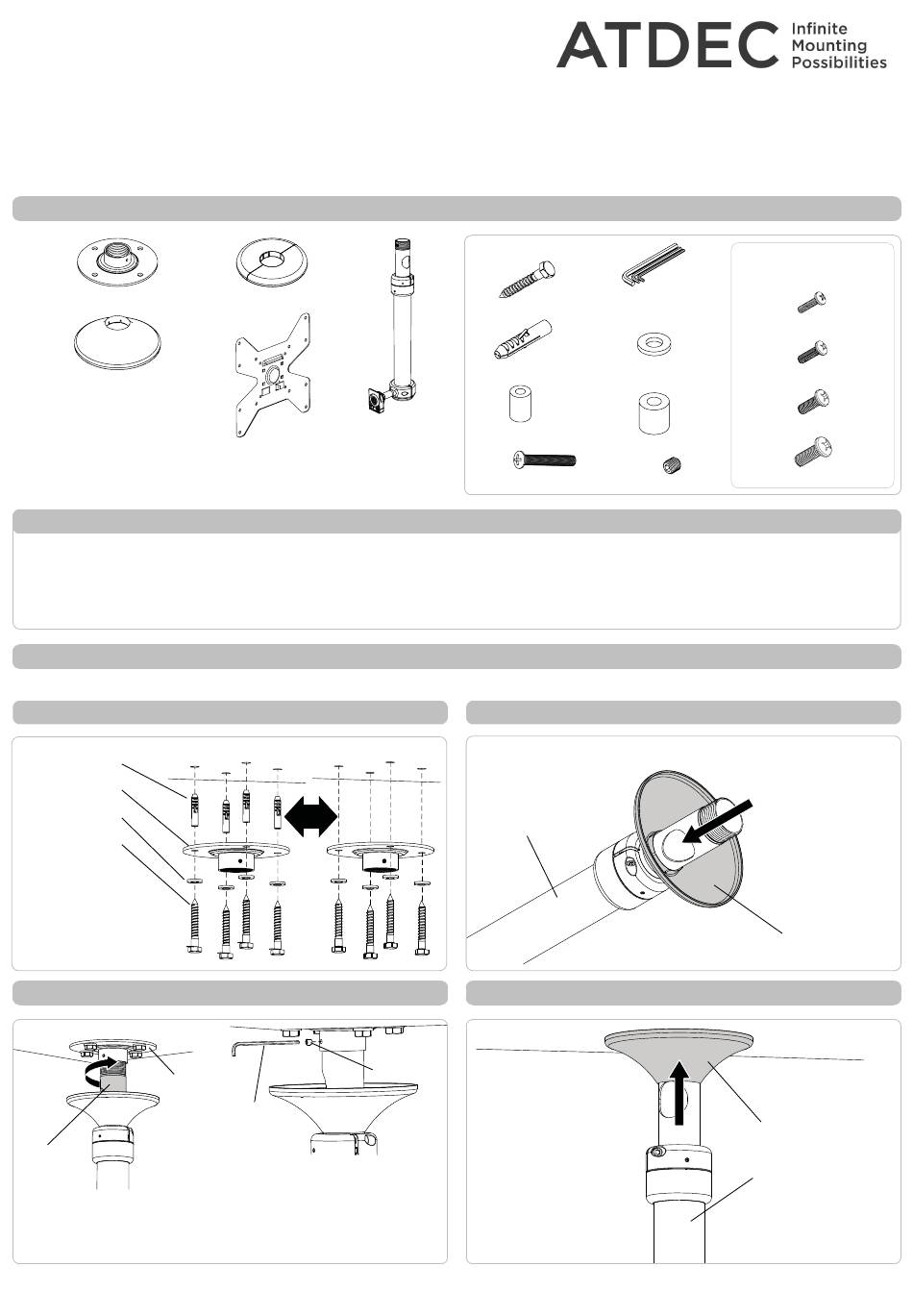

Atdec TH-1040-CTS Installation Instructions

TH-1040-CTS
TH-1040-CTL
TH-1040-CTSW
TH-1040-CTLW
Component Checklist
Mounting Plate
Mounting Plate Cover
Tools Required:
• Power drill
• 7mm drill bit
(¼")
• 12mm masonry drill bit
(½")
• Phillips head screw driver
• 17mm Socket Wrench or Shifter
11
( / ")
16

IMPORTANT INFORMATION:

! IMPORTANT - Install 1040 Ceiling Tilt Mount (Short/Long) as per Installation Instructions.
! This product supports a maximum load of 25kg (55lbs).
! This product supports VESA mounting hole configurations 75x75mm, 100x100mm, 200x100mm, 200x200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Install Mounting Plate
Masonry Ceiling
Nylon Anchor
Mounting Plate
M10 Washer
Coach Screw
Using the Mounting
Plate as a template, mark
out and drill 4x Ø7mm
holes, Ø12mm
(¼") (½")
for masonry ceilings,
70mm deep.
(2.75")
Step 4.
Attach Pole Assembly to Mounting Plate
TWIST
Mounting Plate
Pole
Assembly
A. Screw Pole Assembly
into Mounting Plate by
twisting top half of the
Pole Assembly only.
False Ceiling Cover
VESA Plate Pole Assembly
Timber Ceiling
OR
Set Screw
3mm
Allen Key
B. Insert Set Screw into the
Mounting Plate to lock the
Pole Assembly in position.

Installation Instructions

Ceiling Tilt Short Mount / Ceiling Tilt Long Mount
Hardware
Coach Screw (x4)
Nylon Anchor (x4)
M4/5 Spacer (x4)
(optional) Security Screw
Step 3. Install Mounting Plate Cover
Pole Assembly
Step 5. Position Mounting Plate Cover
Display Mounting
2.5/3/5mm
Allen Key
M4x16/25mm (x4 each)
M4/5/10 Washer
M5x16/25mm (x4 each)
(x4 each)
M6x16/30mm (x4 each)
M6/8 Spacer (x4)
M8x16/30mm (x4 each)
Set Screw
PUSH
Mounting Plate Cover
PUSH
Mounting Plate
Cover
Pole Assembly
Screws
