Atdec Focus VF-AT-NP Installation Instructions

Atdec Focus VF-AT-NP Installation Instructions

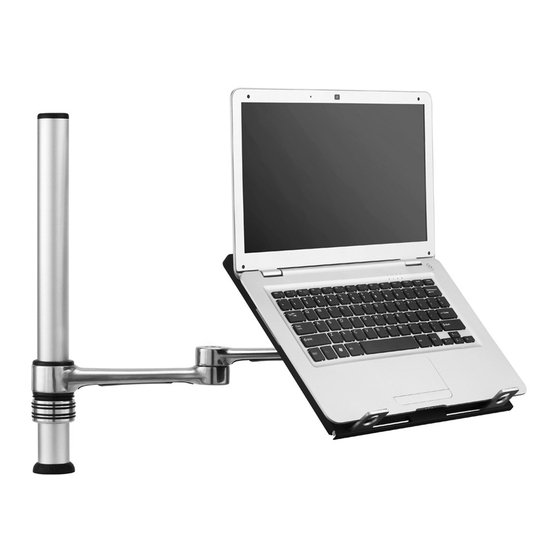

Notebook mount

Advertisement

Quick Links

Component Checklist
Notebook Tray and
Arm Assembly
Pole Assembly
IMPORTANT INFORMATION:
! IMPORTANT - Install Focus Notebook Mount as per installation instruction.
! This product supports a maximum load of 8kg (17.6lbs).
! The manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check what you have received against the component checklist and hardware above.
Step 2. Mount Pole Assembly
Option 1: Bolt Through
1.1 Drill a 9mm (0.35") hole in the work surface in
the desired position and assemble as shown below.
It is recommended that the Pole Assembly be
mounted towards the rear edge of the work surface.
Pole Assembly
Bolt Through Base
9mm (0.35") Hole
Steel Washer
M8 x 60mm Button
Head Screw
5mm Allen Key
Button Head Screw
Desk Clamp
Assembly
Hook & Loop
Fasteners (x4 sets)
Primary Arm
Cable Cover
Secondary Arm
Cable Cover
Pole Top Cap
Option 2: Mount using Desk Clamp
2.1 Remove both the Pressure
plate and M10 Desk Clamp
Screw.
Installation Instructions
VF-AT-NP
M8 x 60mm
M8 x 30mm
Screw
Steel Washer
Cable Stops
Cable Clips
(x2)
Bolt Through
Base
Pressure Plate
M10 Desk Clamp
Screw
5mm Allen Key
Note: Ensure that the Slot Tab in the Bolt
Slot
Through Base fits snugly into the Slot on the
Pole Assembly.
Slot Tab
The logo on the Bolt Through Base
must face the front of this assembly.
Focus | Notebook Mount
HARDWARE
5mm Allen Key
Display Mounting Screws
M4x10/12/16mm (x4)
Phillips Head Mounting Screws
Tools Required:
• Power Drill
• 9mm (0.35") Drill Bit
2.2 Fasten the Desk Clamp to the Bolt
Through Base & Pole Assembly using the
M8 x 30mm Screw and Tighten Firmly.
Pole Assembly
Bolt Through Base
M8 x 30mm Screw
5mm Allen Key

Advertisement

loading
Need help?

Need help?

Do you have a question about the Focus VF-AT-NP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atdec Focus VF-AT-NP

  • Page 1 Installation Instructions Focus | Notebook Mount VF-AT-NP Component Checklist HARDWARE M8 x 60mm M8 x 30mm Button Head Screw Screw 5mm Allen Key Desk Clamp Assembly Hook & Loop Steel Washer Display Mounting Screws Notebook Tray and Fasteners (x4 sets) Arm Assembly Primary Arm M4x10/12/16mm (x4)
  • Page 2 Step 2. Mount Pole Assembly (cont.) 2.3 The Desk Clamp bracket can be repositioned to suit different mounting If you need to reposition the desk clamp bracket or you have no surface thicknesses. The maximum mounting surface thicknesses supported access to the rear of your table continue to Step 2.4. are listed below from the Top to Middle and Bottom Screw Holes.
  • Page 3 Step 4. Install Notebook 4.2 To increase stability, use the self adhesive Hook-and-Loop Fasteners supplied. • Peel off the backing paper to the fasteners. 4.1 Adjust the Support Tabs to suit the • Attach fasteners to both the Notebook Tray width of the Notebook Computer ensuring and Computer.
  • Page 4 Installation Complete No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 13.02.14 ©...
