Atdec Telehook Installation Instructions

32”-63” wall tilt

Advertisement

Quick Links

Important Notes
the telehook 32-63 wall tilt supports lCD and Plasma Flat Panel Displays from 32" (81cm)
l
to 63" (160cm) and supports a maximum load of 91kgs (200lbs).
this product suits displays with mounting hole patterns from 180mm to 740mm wide (7"-29") by 100mm to
l
500mm high (4"-20").
the manufacturer does not accept responsibility for incorrect installation.
l
Component Checklist
wall Plate

ToolS ReQUIReD:

Power Drill
l
12mm (
/
) or 8mm (
1
l
2
Phillips Head Screw Driver
l
Spirit level
l
17mm (
/
") Socket wrench or
11
l
16
Shifter
Mounting the Wall Plate
A
Masonry Wall
Note: ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
wall Plate
Telehook
Display Bracket (left)
Display Bracket (right)
/
) Drill Bit
Security Bracket (right)
5
16
Security Bracket (left)
TIP: Use a spirit
level to ensure
that the wall plate
is horizontal
1
12mm (
/
")
2
Hole
Masonry
wall Plug
washer
Coach Screw

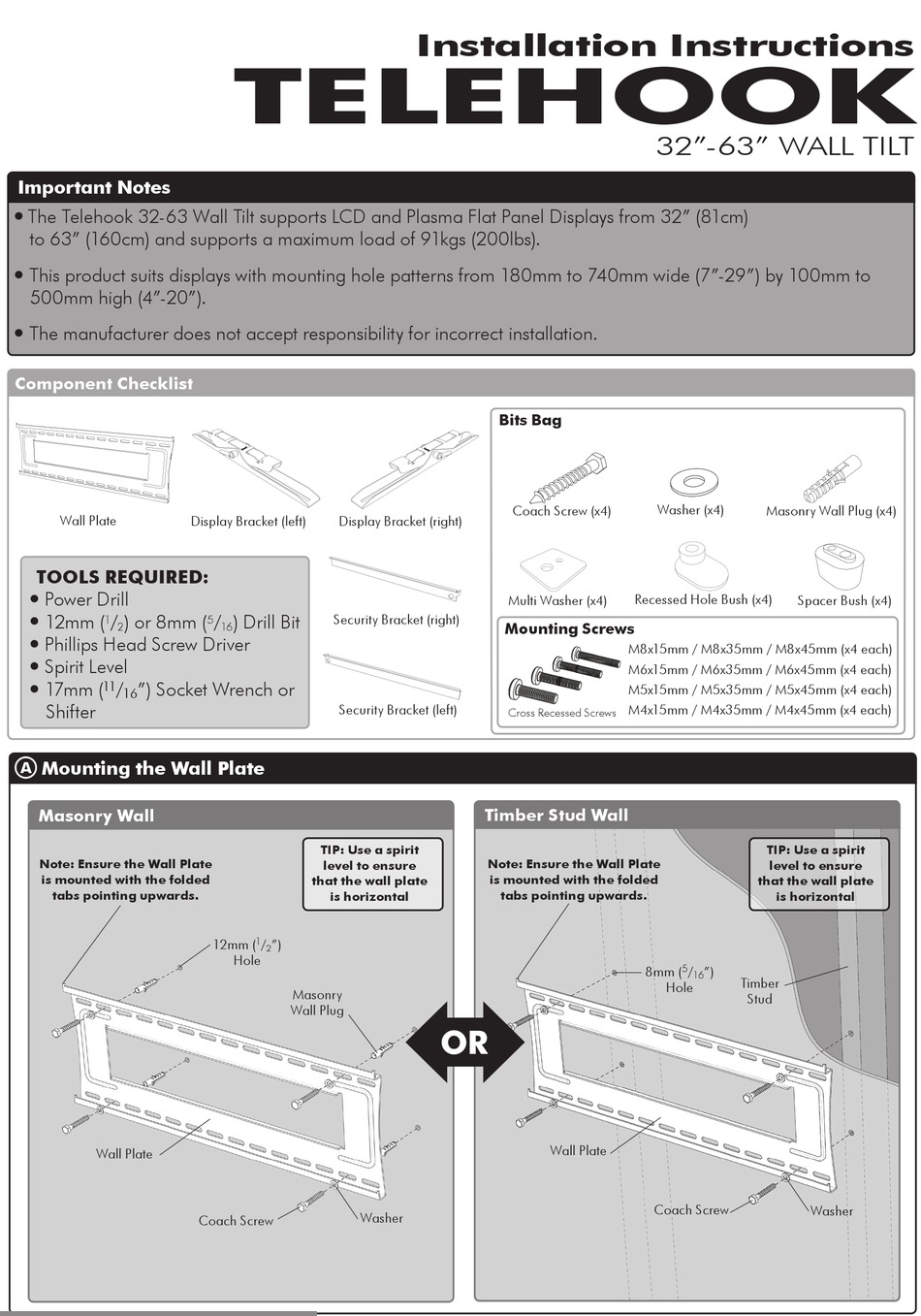

Installation Instructions

Bits Bag
Coach Screw (x4)
Multi washer (x4)
Mounting Screws
Cross Recessed Screws
Timber Stud Wall
Note: ensure the Wall Plate
is mounted with the folded
tabs pointing upwards.
wall Plate
32"-63" wall tilt
washer (x4)
Masonry wall Plug (x4)
Recessed Hole Bush (x4)
Spacer Bush (x4)
M8x15mm / M8x35mm / M8x45mm (x4 each)
M6x15mm / M6x35mm / M6x45mm (x4 each)
M5x15mm / M5x35mm / M5x45mm (x4 each)
M4x15mm / M4x35mm / M4x45mm (x4 each)
TIP: Use a spirit
level to ensure
that the wall plate
is horizontal
5
8mm (
/
")
16
timber
Hole
Stud
Coach Screw
washer
