Installation Steps - Dynojet Power Commander III USB Installation Instructions

i921-411 www.powercommander.com

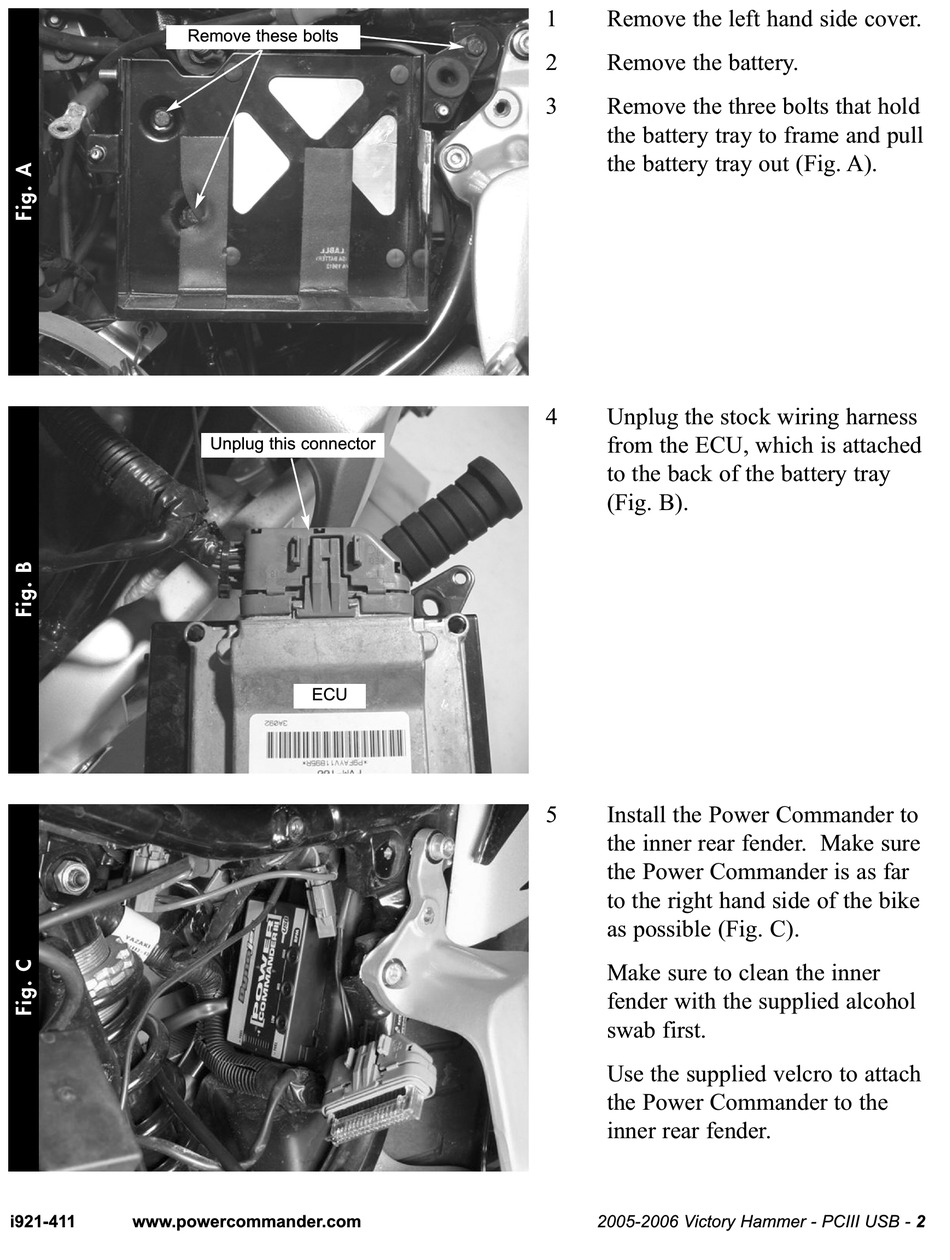

Remove these bolts
Unplug this connector
ECU
1 Remove the left hand side cover.
2 Remove the battery.
3 Remove the three bolts that hold
the battery tray to frame and pull
the battery tray out (Fig. A).
4 Unplug the stock wiring harness
from the ECU, which is attached
to the back of the battery tray
(Fig. B).
5 Install the Power Commander to
the inner rear fender.
the Power Commander is as far
to the right hand side of the bike
as possible (Fig. C).
Make sure to clean the inner
fender with the supplied alcohol
swab first.
Use the supplied velcro to attach
the Power Commander to the
inner rear fender.
2005-2006 Victory Hammer - PCIII USB - 2
Make sure
