Installation
Adding an Access Control Device to the
Pantel/Pancode
When activated, the access-control triggers the Pantel/Pancode
"SW" terminal, which activates the door-lock relay and opens
the door.
For this type of installation, the access-control device "N.O."
output wires are connected to the Pantel/Pancode Switch
terminals (see Figure 2-5.)
Lock
Relay
Pancode/
Pantel
N.O.
Output
Switch

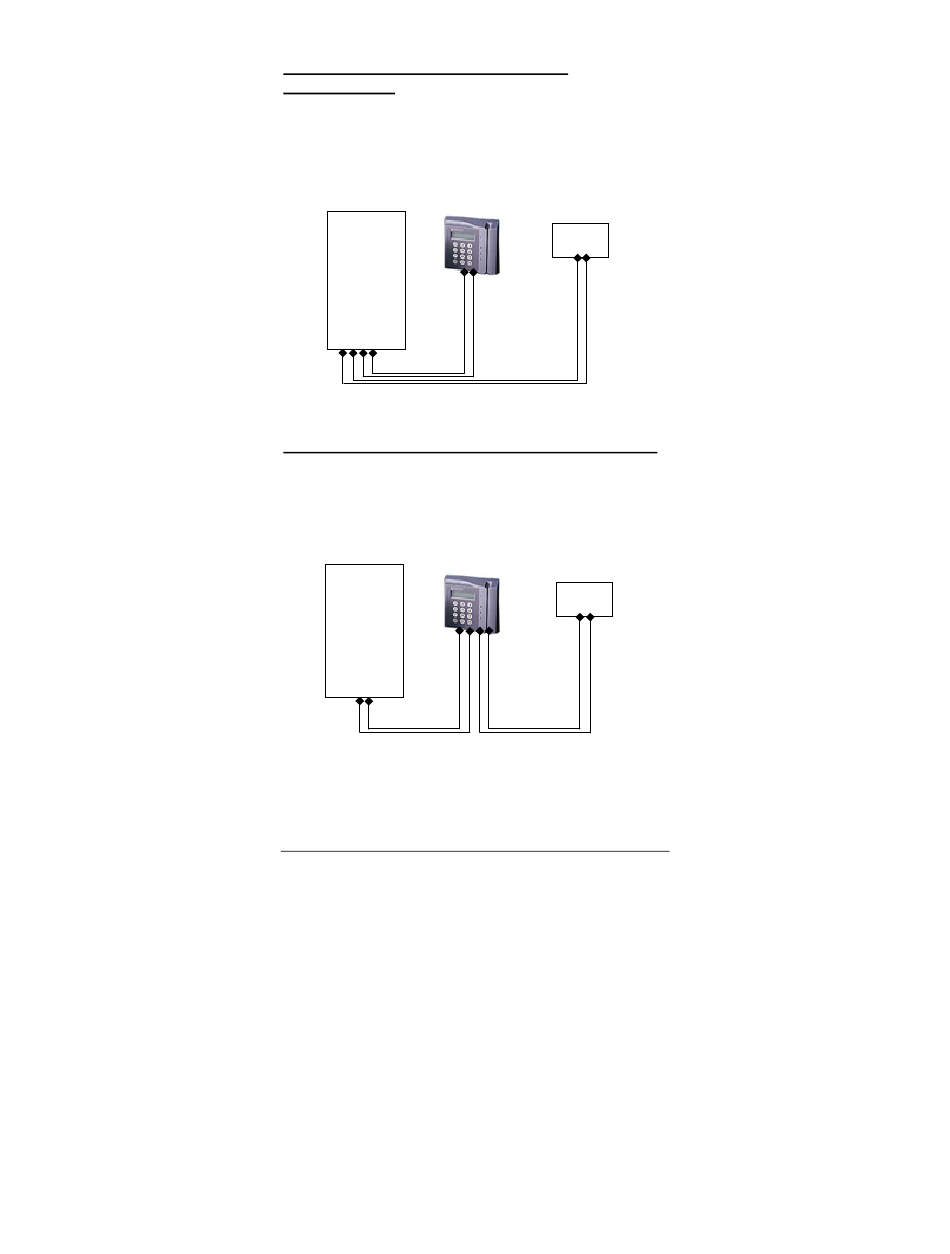

Figure 2-5. Pantel/Pancode – Controlling Lock Relay
Adding Pantel/Pancode to an Access Control Device
The access control device opens the door when the
Pantel/Pancode triggers the access-control device.
For this installation, the access-control device bypass
"Switch" wires are connected to the "N.O." and "CMN"
terminals of the Pantel/Pancode. The door-lock relay wires are
connected to the access-control device (see Figure 2-6.)
Lock
Relay
Pancode/
Pantel
N.O. and
CMN
Figure 2-6. Access Control - Controlling Lock Relay
