Installation
Caution
To avoid damage to the camera, make sure to connect the
correct polarity to the connector (see Figure 2-2).
GND
Camera connector 12V DC
+12V
Figure 2-2. Camera connector

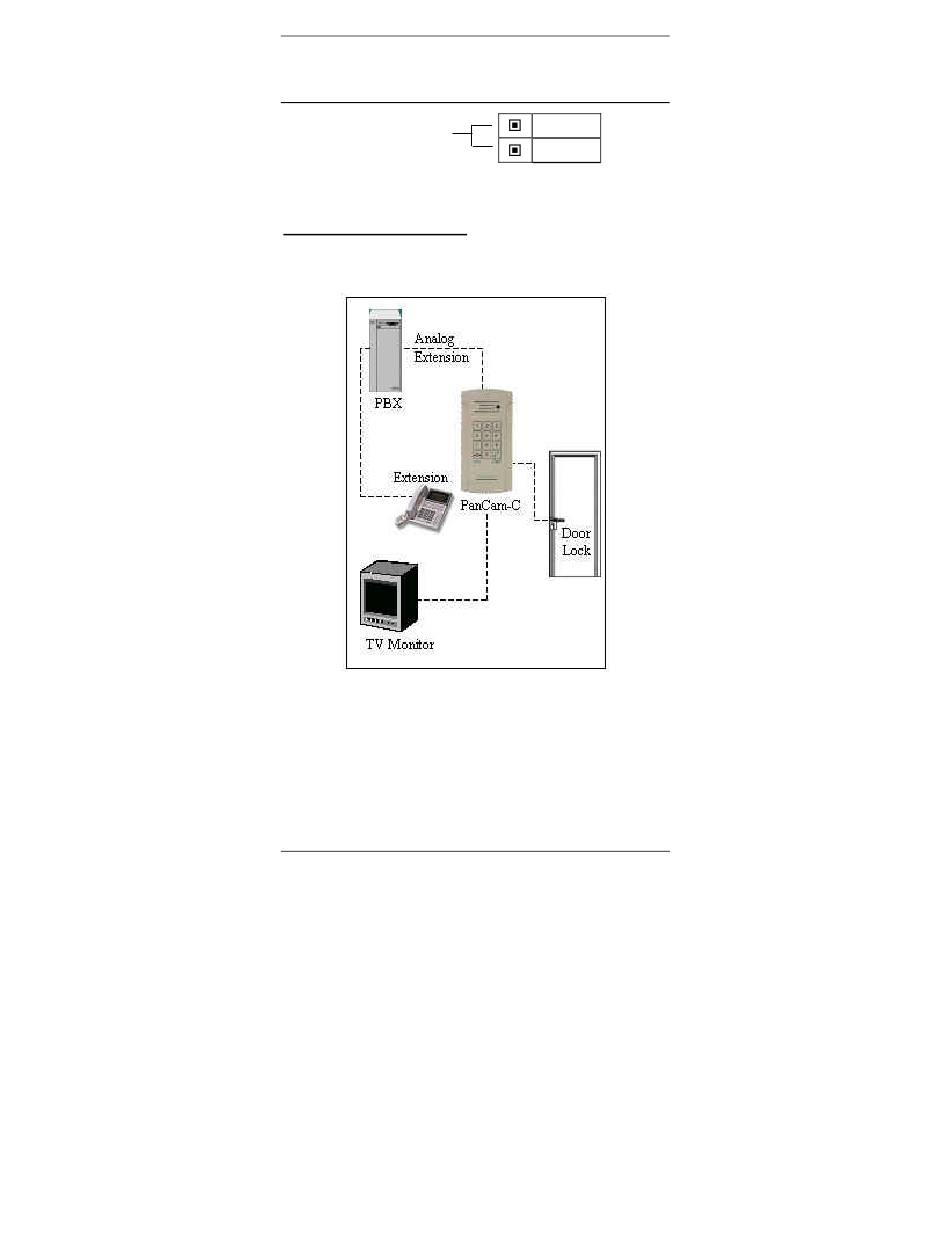

PanCam Schematic setup
The following pictures show the schematic setup of the
PanCam unit.
Figure 2-3. PanCam Schematic setup
The video signal is independent and connected directly to
third-party video equipment (e.g. a video recorder, monitor,
multiplexer, PC, etc.).
The unit is connected to the PBX as an analog extension.
The unit powers the Door Lock and the Camera.
