Unit – the unit of the displayed value.
Description – a short description of the variable.

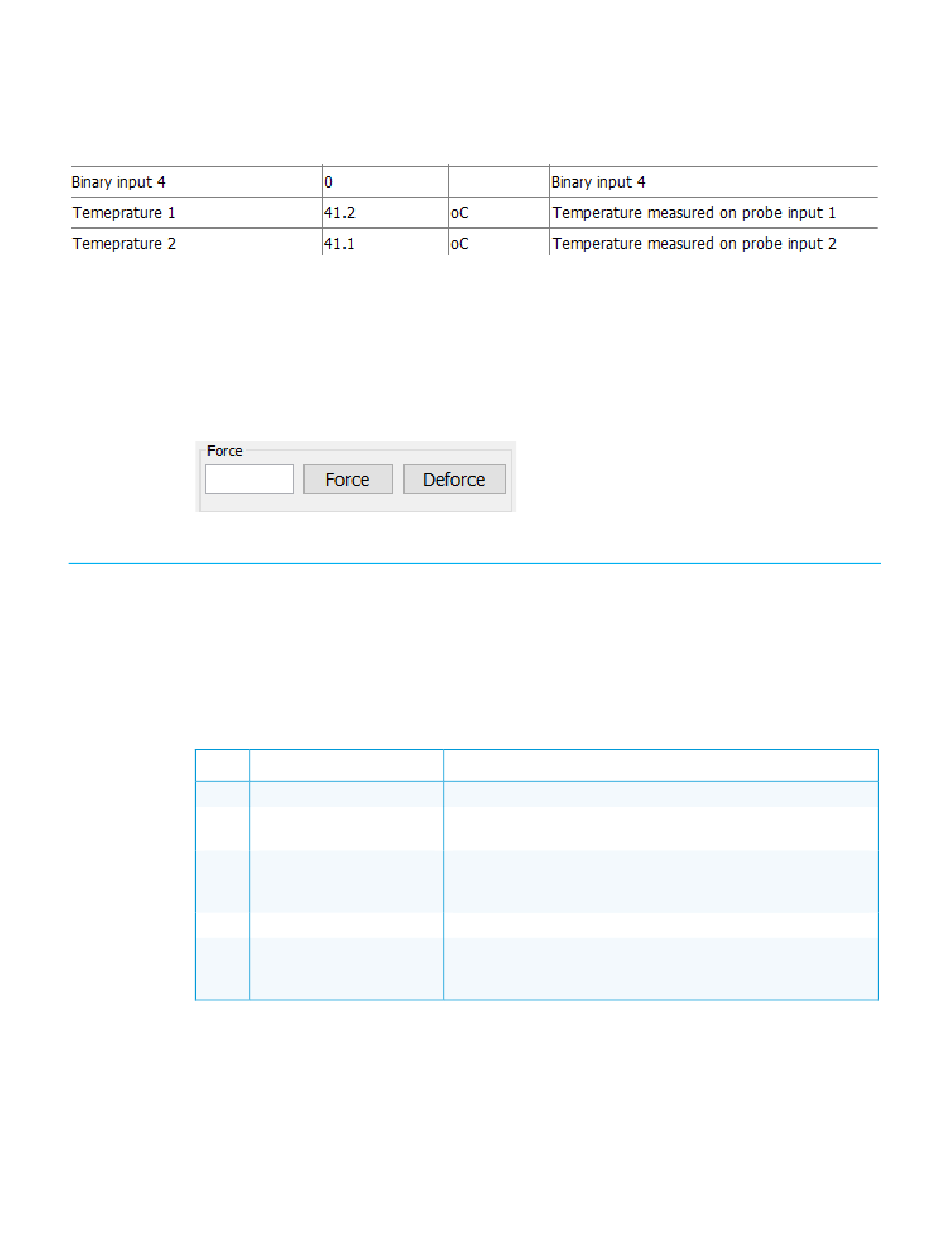

Monitoring Table Example
The values that are displayed are stored in the monitoring.xml file, which is located in the
"files" folder where the DIN-TSTAT-FCU Commissioning Tool is installed.

Variable Forcing

For certain fields of the monitoring table, it is possible to force values. Enter the numeric or
binary value, and then click Force to force the value. To stop forcing the value and return it
to the previous state, click Deforce.

Troubleshooting

Error Code

Using Cresnet, the DIN-TSTAT-FCU can report certain errors. The errors are bit coded in
FCU_type join as presented in the table below.
Error Codes
BIT
15
14
13
12
11
42 • DIN-TSTAT-FCU: DIN-Rail Fan-Coil Thermostat
ERROR
Parameter error
Main power supply error
Water temperature error
Probe 1 error
Probe 2 error
DESCRIPTION
There is an error in parameters stored in flash.
The main power supply is off or voltage is below minimum
level.
The water temperature is inadequate or the water
temperature probe is not functioning. An error is reported
only if water temperature measuring is enabled.
The air temperature probe is not connected or is shorted.
The second temperature probe is not connected or is
shorted. An error is reported only if second temperature
probe is enabled.
Setup and Commissioning Guide – DOC. 8207A
