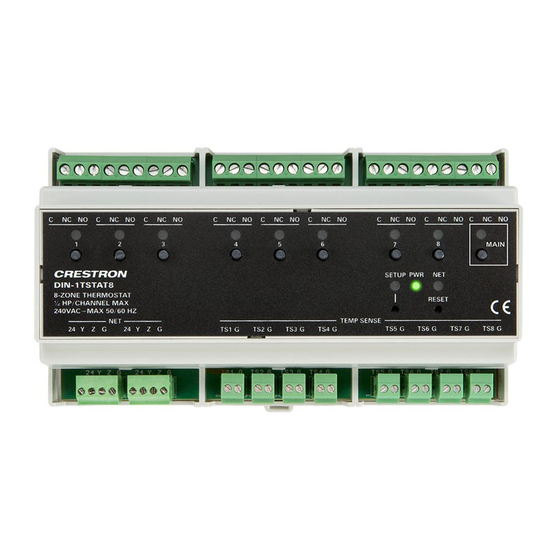

- Page 1 DIN-1TSTAT8 8-Zone Radiant Heat Thermostat, DIN Rail Mount Product Manual Crestron Electronics, Inc.
- Page 2 United States and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Overview Specifications Dimension Drawings Installation Install the DIN-1TSTAT8 Mount the DIN-1TSTAT8 to the DIN rail Remove the DIN-1TSTAT8 from the DIN rail Wire the DIN-1TSTAT8 Zone Valve and Main Valve connections (1-8, MAIN) Temperature Sensor Connections (TEMP SENSE) Cresnet Connections (NET) - Page 4 iv • Contents Product Manual — Doc. 9368A...
-
Page 5: Overview
The DIN-1TSTAT8 requires a Crestron control system to function. The heating setpoints for each zone are set by the user through the control system and then stored in memory on the DIN- 1TSTAT8. In the event a user setpoint is lost, a failsafe operating mode takes over to keep the space heated at a preset temperature until the user setpoint is restored from the control system. -
Page 6: Specifications
Main valve control output with isolated common (C), normally closed (NC), and normally open (NO) terminals; Provides one SPDT relay rated 1/2 HP @ 240VAC, 50/60 Hz (2) 4-pin detachable terminal blocks; Cresnet secondary port with hardwire parallel pass-through 6 • DIN-1TSTAT8 Product Manual — Doc. 9368A... - Page 7 35 mm DIN EN 60715 rail mount, DIN 43880 form factor for enclosures with 45 mm front panel cutout, occupies 9 DIN module spaces (162 mm) Dimensions Height 94 mm (3.68 in.) Width 161 mm (6.33 in.) Depth 60 mm (2.34 in.) Product Manual — Doc. 9368A DIN-1TSTAT8 • 7...
- Page 8 Weight 0.5 kg (1.08 lb) Compliance Regulatory Model: DIN-1TSTAT8 CE, IC, FCC Part 15 Class B digital device To search for product certificates, refer to support.crestron.com/app/certificates. 8 • DIN-1TSTAT8 Product Manual — Doc. 9368A...
-
Page 9: Dimension Drawings
Dimension Drawings Product Manual — Doc. 9368A DIN-1TSTAT8 • 9... -
Page 10: Installation
Installation This section provides the following information: • Install the DIN-1TSTAT8 • Wire the DIN-1TSTAT8 • Verify System Operation 10 • DIN-1TSTAT8 Product Manual — Doc. 9368A... -
Page 11: Install The Din-1Tstat8
2. Remove all connections from the DIN-1TSTAT8. 3. Use a small, flat-head screwdriver to pull the DIN rail release tab down. 4. Tilt the bottom of the DIN-1TSTAT8 away from the bottom of the DIN rail and then remove the thermostat. -
Page 12: Wire The Din-1Tstat8
Wire the DIN-1TSTAT8 Make the following connections to the thermostat. 12 • DIN-1TSTAT8 Product Manual — Doc. 9368A... -
Page 13: Zone Valve And Main Valve Connections (1-8, Main)
NC terminal on the thermostat to the CLOSE terminal on the valve. For zone valve specifications and wiring, refer to the documentation provided by the valve manufacturer. Product Manual — Doc. 9368A DIN-1TSTAT8 • 13... -
Page 14: Temperature Sensor Connections (Temp Sense)
Connect one temperature sensor per heat zone. Crestron recommends using CAT3 (up to 76 m (250 ft)) or CAT5 (up to 152 m (500 ft)) network cable. If other wire is used, the total capacitance must be less than 7,000 pF (up to 152 m (500 ft)). -
Page 15: Verify System Operation
1. Press and hold the 1-8 button for 10 seconds to enter Test mode on the associated zone. 2. Verify that the zone valve operates as expected. The DIN-1TSTAT8 performs a 5-minute heat call on that zone. If the valve is programmed to have a time delay, the delay is initiated and added to the test call for heat. -
Page 16: Operation
Operation Bootup The DIN-1TSTAT8 turns off all heat zones before starting up. Main Valve Delay When a heat call is made, a delay from 0 to 5 minutes can be set. The default delay is 5 minutes. For information regarding the main valve delay, refer to the documentation provided by the valve manufacturer. -
Page 17: Failsafe Mode
The thermostat exits Failsafe mode after it reestablishes communication with the control system or if the stored setpoint is restored. The thermostat resumes normal operation according to its last known state. Product Manual — Doc. 9368A DIN-1TSTAT8 • 17... -
Page 18: Troubleshooting
There is an improper connection Check the connection between a signal. between the sensor and the the sensor and thermostat. thermostat. An incomplete (open) circuit Check the connection between exists in wiring. the sensor and thermostat. 18 • DIN-1TSTAT8 Product Manual — Doc. 9368A... -
Page 19: Resources
Resources The following resources are provided for the DIN-1TSTAT8. NOTE: You may need to provide your Crestron.com web account credentials when prompted to access some of the following resources. Crestron Support and Training Crestron True Blue Support Crestron Resource Library Crestron Online Help (OLH) Crestron Training Institute (CTI) Portal... - Page 20 This page is intentionally left blank. Product Manual — Doc. 9368A DIN-1TSTAT8 • 20...
- Page 21 Crestron Electronics, Inc. Product Manual — Doc. 9368A 15 Volvo Drive, Rockleigh, NJ 07647 12/01/22 Tel: 888.CRESTRON Specifications subject to Fax: 201.767.7656 change without notice. www.crestron.com...
