3.2 Mounting
3.2.1 Mounting of DX-NET-SWD1
•
DX-NET-SWD1 modules can be installed in any DA1 variable frequency
drive with an IP20 or IP55 degree of protection.
•
DX-NET-SWD3 modules can be installed on any DC1 variable frequency
drive or DE1 variable speed starter with an IP20 degree of protection.
Module DX-NET-SWD2 is needed for all DA1 and DC1 variable frequency
drives with an IP66 degree of protection.
DX-NET-SWD1 modules can be installed in any DA1 variable frequency drive
with an IP20 or IP55 degree of protection.
DC-
L1/L
L2/N
L3
1 2 3 4 5 6
7 8 9 10 11 12 13
COM
14 15 16 17 18
DC+
BR
U
V
W

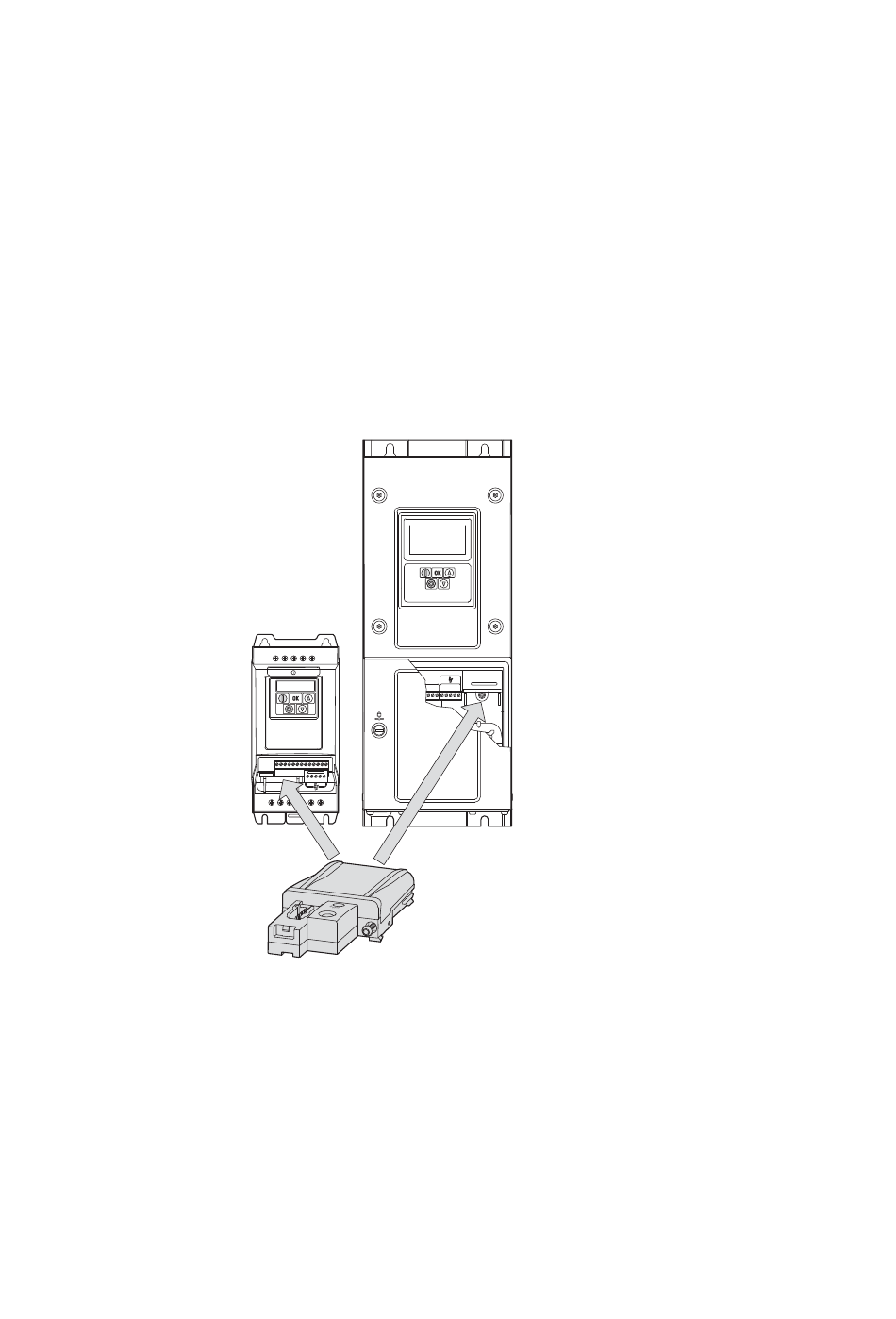

Figure 9: Installation in DA1 variable frequency drives (left: IP20; right: IP55)
DX-NET-SWD... 08/14 MN04012009Z-EN www.eaton.com
11 12 13 14 15 16 17 18
