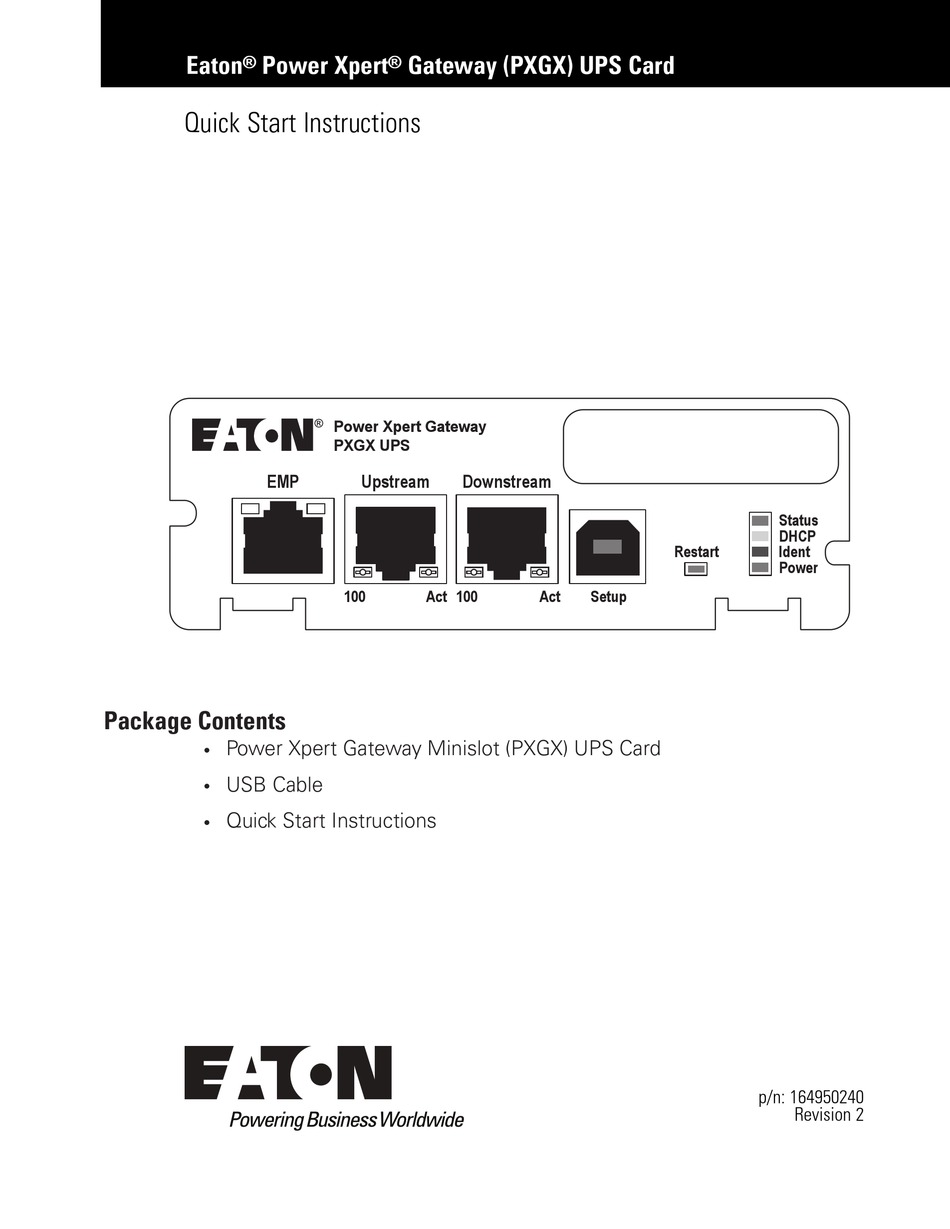

Eaton
® ®
Power Xpert
Quick Start Instructions
EMP
Package Contents

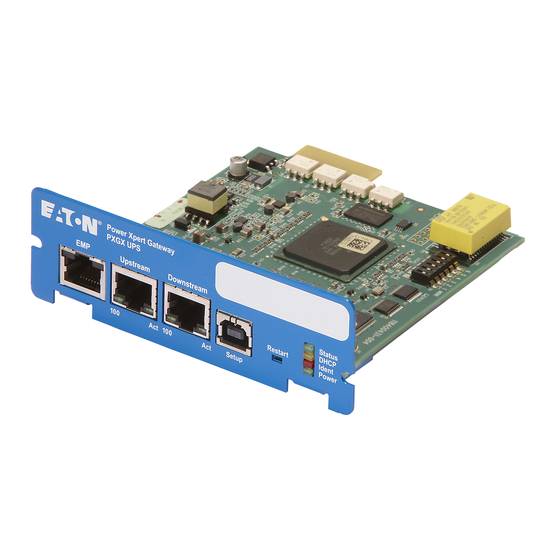

Power Xpert Gateway Minislot (PXGX) UPS Card
l
USB Cable
l
Quick Start Instructions
l
® ®
Gateway (PXGX) UPS Card
Power Xpert Gateway
PXGX UPS
Upstream
Downstream
100
Act
100
Restart
Act
Setup
Status
DHCP
Ident
Power
p/n: 164950240
Revision 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eaton Power Xpert PXGX
Summary of Contents for Eaton Power Xpert PXGX
- Page 1 Eaton ® ® Power Xpert ® ® Gateway (PXGX) UPS Card Quick Start Instructions Power Xpert Gateway PXGX UPS Upstream Downstream Status DHCP Restart Ident Power Setup Package Contents Power Xpert Gateway Minislot (PXGX) UPS Card USB Cable Quick Start Instructions...
- Page 2 Eaton or its subsidiaries and affiliates. Google Chrome is a trademark of Google Inc. Linux is a registered trademark of Linus Torvalds. Microsoft, Internet Explorer, and Windows are registered trademarks of Microsoft Corporation in the United States and in other countries.
- Page 3 8 8 R R e e g g i i s s t t e e r r a a P P r r e e d d i i c c t t P P u u l l s s e e S S u u b b s s c c r r i i p p t t i i o o n n ............................................2 2 1 1 Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 4 Table of Contents Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
-
Page 5: Phillips ® Screwdriver
If you need e-mail functionality, obtain the SMTP mail server's IP address or host name. If using the SMTP host name, verify that you also have the Name Server IP address (see Step o SMTP (mail server) IP Address or Host Name _______________________________________________________________ Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2... -
Page 6: Installation Checklist
Installation Checklist Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2... -
Page 7: Chapter 1 Installation
To prevent electrostatic discharge (ESD), place one hand on a metal surface, such as the UPS panel. Slide the card into the open slot and secure with the screws removed in Step 2 (see Figure Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2... - Page 8 Save the driver configuration file (powerxpert.inf) to the C: drive using the default location or a folder you select. Note the path of the downloaded file on your computer. (Never download the file to your desktop). Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 9 If you are connecting to another PXGX UPS card or other Ethernet device, connect an Ethernet cable (not supplied) to the Downstream Ethernet connector on the PXGX UPS card. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 10 Chapter 4 Install the Driver Software order to confirm that you have the most current USB Driver software. If not, you will need to install or update the USB Driver software. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 11 Go to Step 4. and continue this procedure to ensure the most current driver is installed. Figure 5. Update RNDIS/Ethernet Gadget Driver from Other Devices Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 12 Browse and navigate to the powerxpert.inf file you already downloaded. Select the file and click Next (see Figure • If a pop-up message displays, “The best driver is already installed,” click Close and go to Step • Otherwise, the software begins to install. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 13 Install this driver software anyway (see Figure Figure 8. Windows Security Message When the driver software is updated successfully, the message “Windows has successfully updated your driver software” displays (see Figure Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 14 To manually enter a static (fixed) IP address for the card’s network connection, continue to Chapter 6 Assign an IP Address Manually. NOTE By default, the PXGX UPS card requests an IP address through DHCP when connected to a network. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 15 Check the checkbox (enable) for Use DHCP (when enabled) to get name services. • Check the checkbox (enable) for Use DHCP (when enabled) to get domain name. Click Apply. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 16 (case sensitive with no colons). For example: Card's MAC address: 00:E0:D8:FF:C0:C4 – Administrator name: admin – Password: 00E0D8FFC0C4 • For firmware versions older than 2.6.0.5 the default username and password is “admin”. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 17 IP address for the PXGX UPS card. NOTE For detailed information, refer to the Eaton Power Xpert Gateway (PXGX) UPS User’s Guide, which is available through a link on the Documentation tab on the PXGX UPS product Web page.
- Page 18 Obtain a DHCP-Assigned IP Address Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 19 If the system is unresponsive and you cannot make any selections, the browser may be running in compatibility mode. To disable compatibility mode, go to "Disable Browser Compatibility Mode". Select Network from the Configuration menu. The Network page displays. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 20 Type the server IP address in the Name Server box. (Up to three IP addresses can be entered.) • Click Apply. Click OK to confirm. Open a browser and enter the fixed (static) IP address. Log on as administrator Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 21 For detailed information, refer to theEaton Power Xpert Gateway (PXGX) UPS User’s Guide, which is available through a link on the Documentation tab on the PXGX UPS product Web page. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 22 Assign an IP Address Manually Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 23 Uncheck (disable) the Display all websites in Compatibility View checkbox to disable compatibility mode and click Close. Close and re-open your browser so that the changes take effect. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 24 Disable Browser Compatibility Mode Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 25 PredictPulse is a remote monitoring and management subscription service that collects and analyzes data from connected power infrastructure devices, providing Eaton with the insight needed to make recommendations and take action on your behalf. This service has limited availability outside of the United States. For more information go to www.eaton.com/predictpulse.
- Page 26 PredictPulse settings page will receive an e- mail with additional instructions (see Figure 14). Registration should be completed on the Eaton portal by this contact person. Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 27 Register a PredictPulse Subscription Figure 14. Confirmation Message Eaton Power Xpert® Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2...
- Page 28 1649502402 164950240 2...
