3 Installation

3.3 Install SmartWire-DT connection

3.3 Install SmartWire-DT connection

3.3.1 Mounting of SmartWire-DT flat cable

26
The connection of the SmartWire-DT is carried out via the 8-pin external
device plug SWD4-8SF2-5.

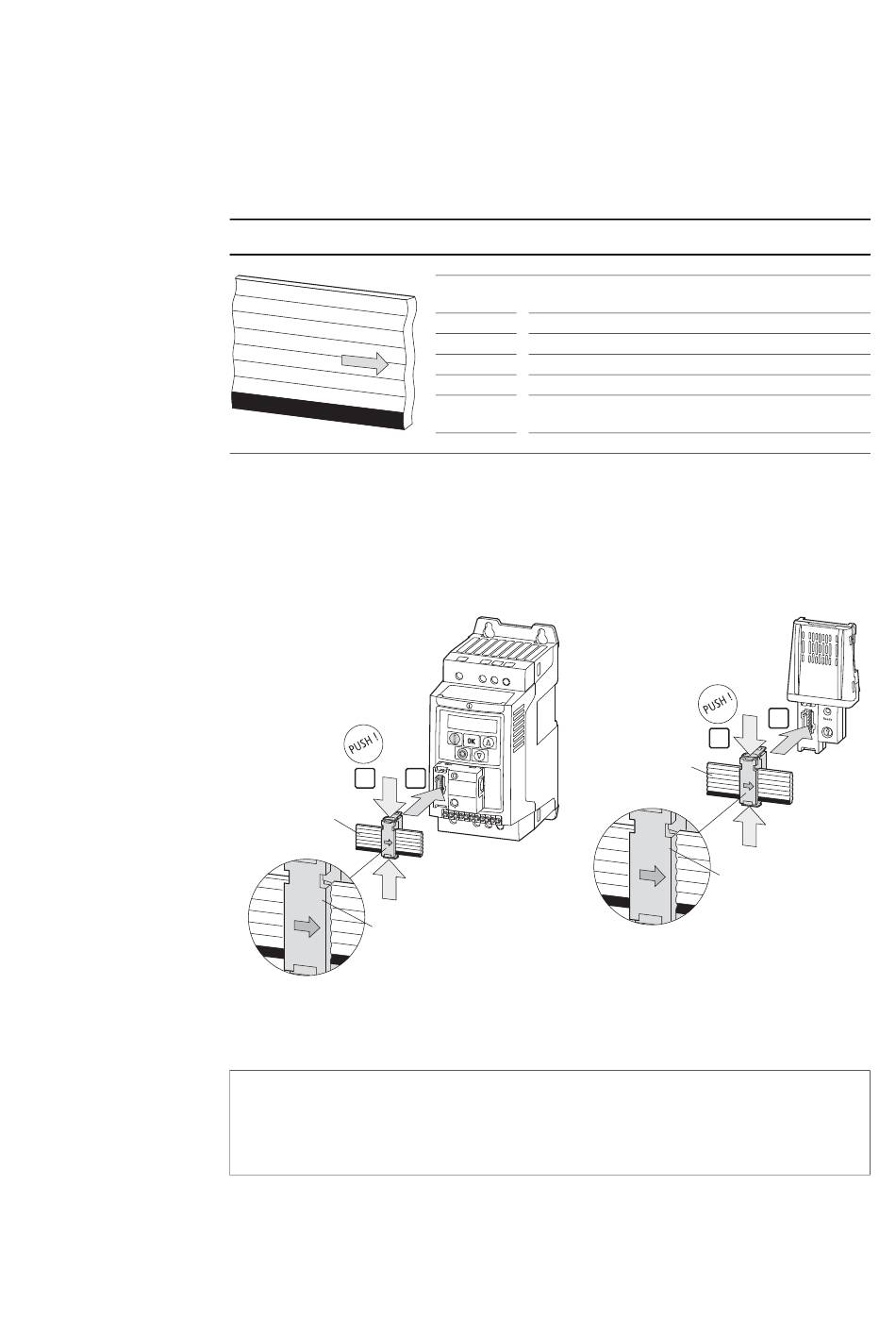

Figure 19:Configuration of the SmartWire-DT flat band conductor
Connect the SWD external device plug SWD4-8SF2-5 with the adapted
SmartWire-DT ribbon cable.
1
SWD4-100LF8-24
SWD4-3LF8-24-2S
SWD4-5LF8-24-2S
SWD 4-8SF 2-5
SWD4-10LF8-24-2S
+ 15V
S W D 4- 8S F2 -5
SWD4-8SF2-5
+ 15 V
L
Figure 20:Connecting the SmartWire-DT external device plug with an adapted ribbon cable
(left: DX-NET-SWD3, right: DX-NET-SWD1)
NOTICE
Do not install the SWD4-8SF2-5 SmartWire-DT external device
plug without switching off the supply and control voltages first!
DX-NET-SWD... 08/14 MN04012009Z-EN www.eaton.com
Meaning
+24 V DC Contactor control voltage
Chassis Contactor control voltage
ground
GND for device supply voltage and data cable
Data B Data cable B
Data A Data cable A
GND for device supply voltage and data (data A, data B)
SEL Select cable for automatic addressing of the
SmartWire-DTmodules
+15 V DC Device supply voltage

L1 /L L2 /N
L3
2
Rea dy
I
A
O
8 9 10 11

U
V
W
1
SWD4-100LF8-24
SWD4-3LF8-24-2S
SWD4-5LF8-24-2S
SWD 4-8S F2-5
SWD4-10LF8-24-2S
+ 15V
S W D 4- 8S F2 -5
SWD4-8SF2-5
+ 15 V
2
