EN

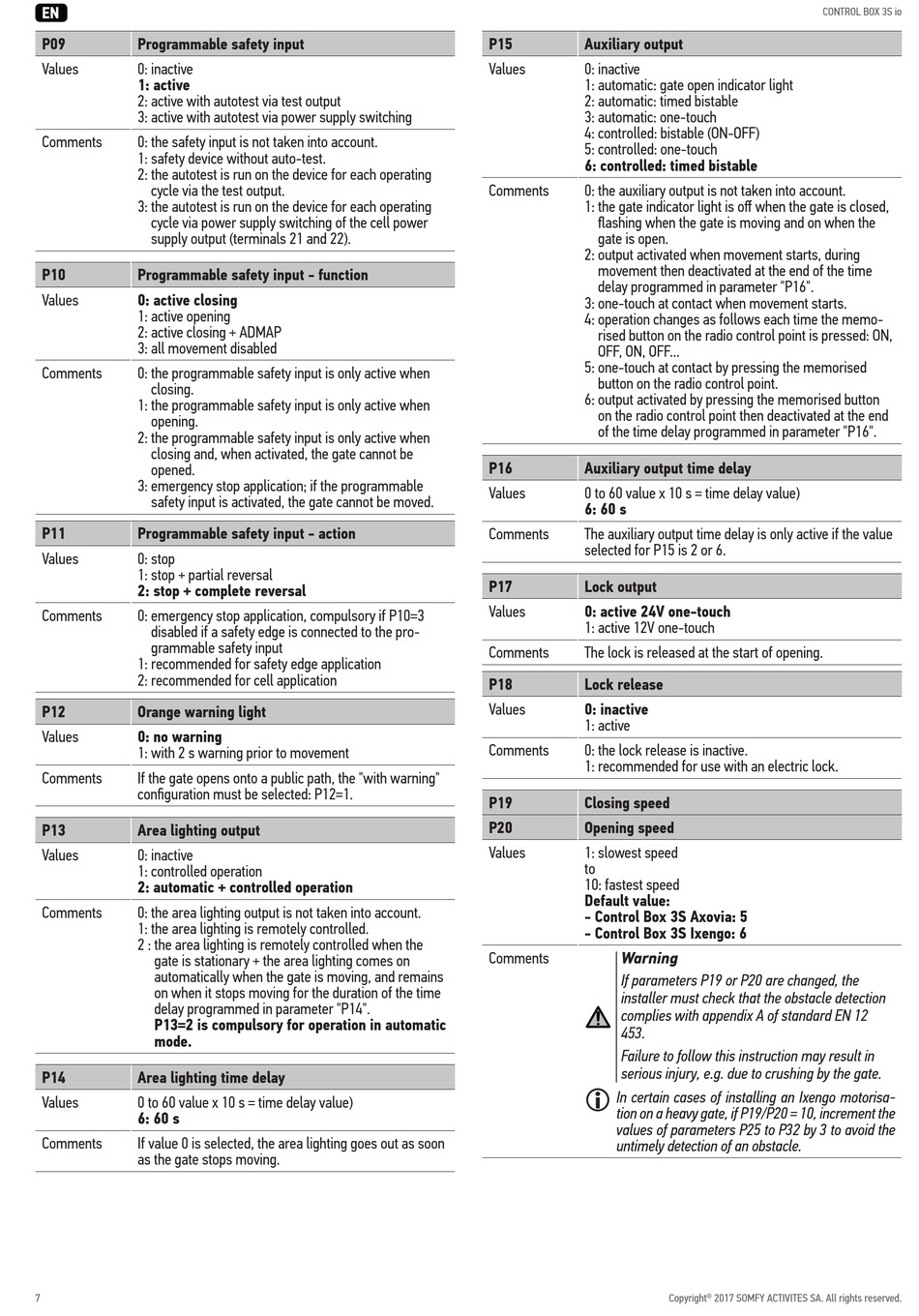

P09
Programmable safety input
Values
0: inactive
1: active
2: active with autotest via test output
3: active with autotest via power supply switching
Comments
0: the safety input is not taken into account.
1: safety device without auto-test.
2: the autotest is run on the device for each operating
cycle via the test output.
3: the autotest is run on the device for each operating
cycle via power supply switching of the cell power
supply output (terminals 21 and 22).
P10
Programmable safety input - function
0: active closing
Values
1: active opening
2: active closing + ADMAP
3: all movement disabled
Comments
0: the programmable safety input is only active when
closing.
1: the programmable safety input is only active when
opening.
2: the programmable safety input is only active when
closing and, when activated, the gate cannot be
opened.
3: emergency stop application; if the programmable
safety input is activated, the gate cannot be moved.
P11
Programmable safety input - action
Values
0: stop
1: stop + partial reversal
2: stop + complete reversal
Comments
0: emergency stop application, compulsory if P10=3
disabled if a safety edge is connected to the pro-
grammable safety input
1: recommended for safety edge application
2: recommended for cell application
P12
Orange warning light
Values
0: no warning
1: with 2 s warning prior to movement
Comments
If the gate opens onto a public path, the "with warning"
configuration must be selected: P12=1.
P13
Area lighting output
Values
0: inactive
1: controlled operation
2: automatic + controlled operation
Comments
0: the area lighting output is not taken into account.
1: the area lighting is remotely controlled.
2 : the area lighting is remotely controlled when the
gate is stationary + the area lighting comes on
automatically when the gate is moving, and remains
on when it stops moving for the duration of the time
delay programmed in parameter "P14".
P13=2 is compulsory for operation in automatic
mode.
P14
Area lighting time delay
Values
0 to 60 value x 10 s = time delay value)
6: 60 s
Comments
If value 0 is selected, the area lighting goes out as soon
as the gate stops moving.
7
P15
Auxiliary output
Values
0: inactive
1: automatic: gate open indicator light
2: automatic: timed bistable
3: automatic: one-touch
4: controlled: bistable (ON-OFF)
5: controlled: one-touch
6: controlled: timed bistable
Comments
0: the auxiliary output is not taken into account.
1: the gate indicator light is off when the gate is closed,
flashing when the gate is moving and on when the
gate is open.
2: output activated when movement starts, during
movement then deactivated at the end of the time
delay programmed in parameter "P16".
3: one-touch at contact when movement starts.
4: operation changes as follows each time the memo-
rised button on the radio control point is pressed: ON,
OFF, ON, OFF...
5: one-touch at contact by pressing the memorised
button on the radio control point.
6: output activated by pressing the memorised button
on the radio control point then deactivated at the end
of the time delay programmed in parameter "P16".
P16
Auxiliary output time delay
Values
0 to 60 value x 10 s = time delay value)
6: 60 s
Comments
The auxiliary output time delay is only active if the value
selected for P15 is 2 or 6.
P17
Lock output
Values
0: active 24V one-touch
1: active 12V one-touch
Comments
The lock is released at the start of opening.
P18
Lock release
Values
0: inactive
1: active
Comments
0: the lock release is inactive.
1: recommended for use with an electric lock.
P19
Closing speed
P20
Opening speed
Values
1: slowest speed
to
10: fastest speed
Default value:
- Control Box 3S Axovia: 5
- Control Box 3S Ixengo: 6
Comments
Warning
If parameters P19 or P20 are changed, the
installer must check that the obstacle detection
complies with appendix A of standard EN 12
453.
Failure to follow this instruction may result in
serious injury, e.g. due to crushing by the gate.
͉
͉
In certain cases of installing an Ixengo motorisa-
tion on a heavy gate, if P19/P20 = 10, increment the
values of parameters P25 to P32 by 3 to avoid the
untimely detection of an obstacle.
CONTROL BOX 3S io
Copyright
©
2017 SOMFY ACTIVITES SA. All rights reserved.
