DESCRIPTION
Part No: 1816073
INSTALLATION PROCEDURES
x
SOMFY CANADA
6315 Shawson Drive, Unit #1
Mississauga, Ontario L5T1J2
SOMFY SYSTEMS, INC. reserves the right to change,
update or improve this document without prior notice.
EOLIS RECEIVER
Inteo Wind - Remote
Installation and Operating Instructions
x
SOMFY SYSTEMS, INC.
47 Commerce Drive
Cranbury, NJ 08512

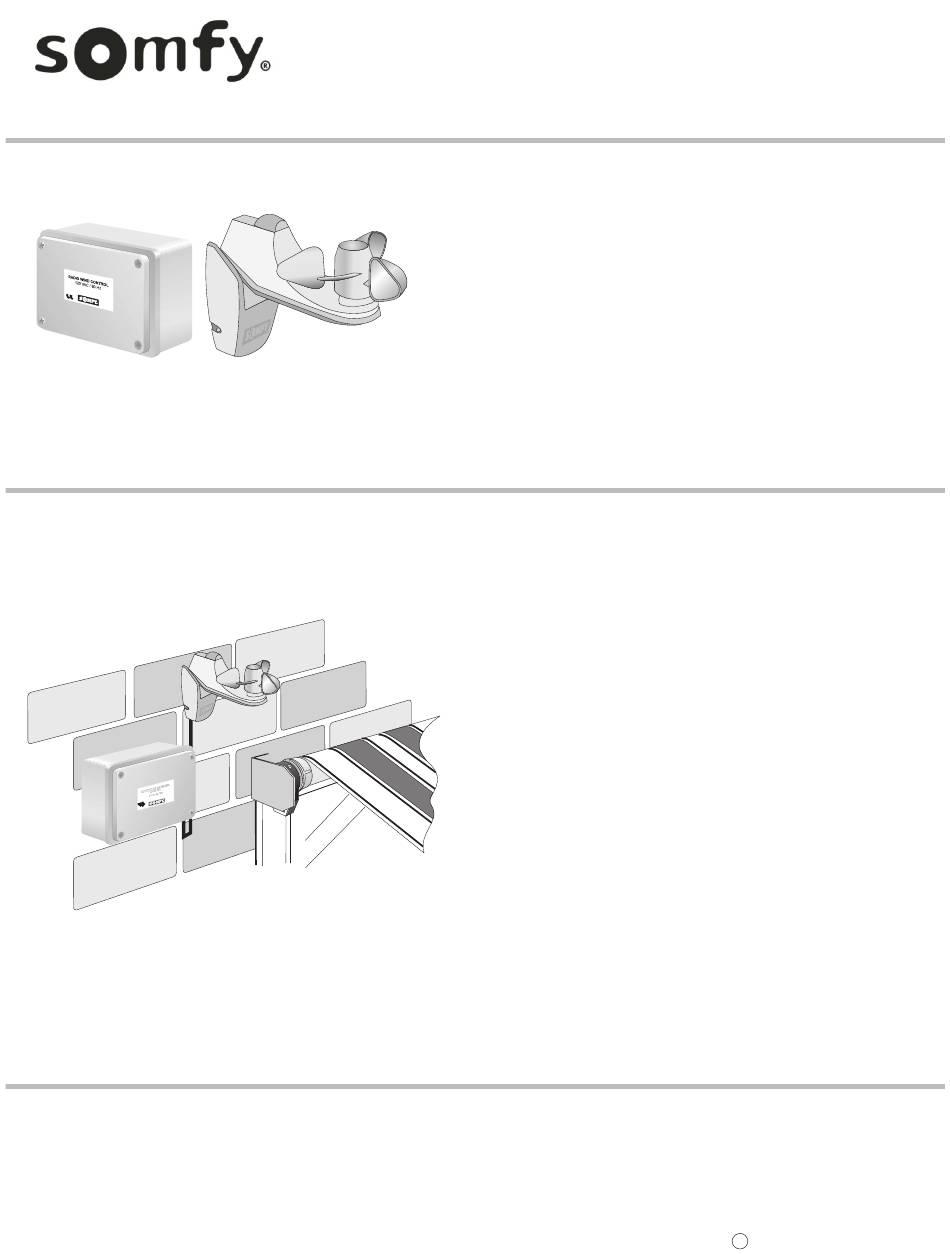

The Somfy Eolis Receiver is a single motor control designed for
residential use. It includes an integrated radio receiver, wind
sensor and low voltage switch inputs. Wind speed is
continuously monitored, triggering the control to retract
awnings or shutters automatically as needed. Using the Telis
Transmitters, it is possible to operate the controls individually or
in groups. Two user-defined intermediate positions can be
programmed. This new control is packaged in a weatherproof
enclosure and includes watertight strain-relief fittings for wires
entering the box.
1. The Eolis Receiver should be mounted as close to the motor
as possible. If mounted outside, ensure that the connections
are facing down to avoid rain seepage. Avoid mounting the
control against any metallic surface, as this may affect the
radio reception.
2. Connect high and low voltage wires according to the wiring
diagram on the next page. It is recommended that the low
voltage wiring is done first, for easier access to the terminals.
Make sure to use included watertight strain relief fittings to
maintain the weatherproofing of the enclosure.
3. The wind sensor should be placed close to the awning or
shading system to make sure the wind speed is measured at
the product. Guard against installing the wind sensor too
close to an obstruction such as a chimney, gutter or the
window treatment itself, which could block the wind and cause
erroneous sensor readings. The sensor should not be more
than 100 feet from the control. Remove the back cover of the
sensor and connect the two-wire cable (included) from the
terminals on the sensor to the terminals on the control. Refer
to the diagram on the next page.
4. When using a low voltage switch, it should be located no more
than 100 feet from the Eolis Receiver.
CAT. NO: 2500022
SOMFY MEXICO S.A. De C.V.
Temazcal 19-B, La Loma
Tlalnepantla, Edo de Mex.
Mexico 54130
C
SOMFY SYSTEMS, INC.
8/07
