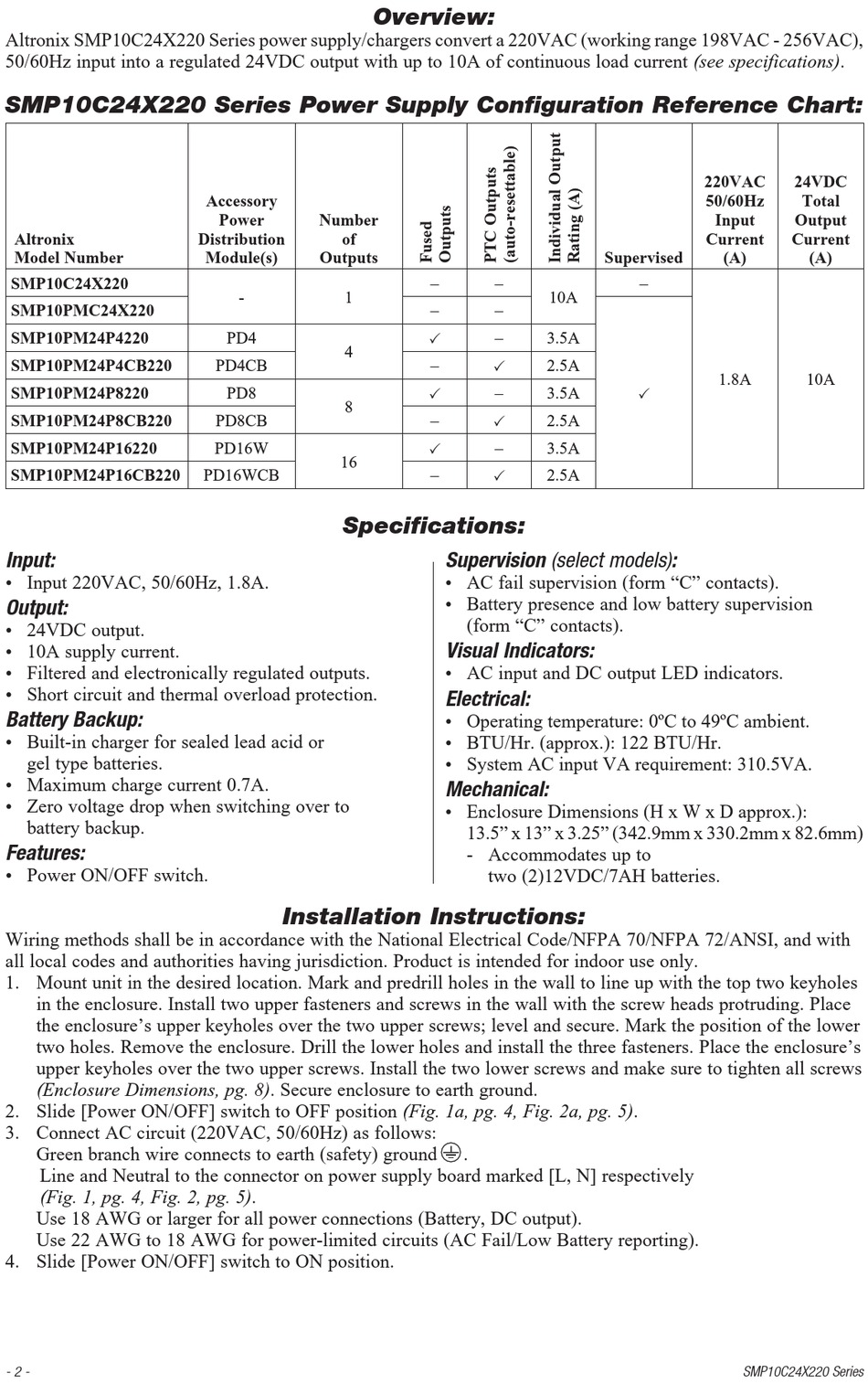

Overview; Specifications; Installation Instructions - Altronix SMP10C24X220 Series Installation Manual

Altronix SMP10C24X220 Series power supply/chargers convert a 220VAC (working range 198VAC - 256VAC),
50/60Hz input into a regulated 24VDC output with up to 10A of continuous load current (see specifications).
SMP10C24X220 Series Power Supply Configuration Reference Chart:
Altronix
Model Number
SMP10C24X220
SMP10PMC24X220
SMP10PM24P4220
SMP10PM24P4CB220
SMP10PM24P8220
SMP10PM24P8CB220
SMP10PM24P16220
SMP10PM24P16CB220
Input:
• Input 220VAC, 50/60Hz, 1.8A.
Output:
• 24VDC output.
• 10A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
Battery Backup:
• Built-in charger for sealed lead acid or
gel type batteries.
• Maximum charge current 0.7A.
• Zero voltage drop when switching over to
battery backup.
Features:
• Power ON/OFF switch.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with
all local codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes
in the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place
the enclosure's upper keyholes over the two upper screws; level and secure. Mark the position of the lower
two holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's
upper keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws
(Enclosure Dimensions, pg. 8). Secure enclosure to earth ground.
2. Slide [Power ON/OFF] switch t o OFF position (Fig. 1a, pg. 4, Fig. 2a, pg. 5).
3. Connect AC circuit (220VAC, 50/60Hz) as follows:
Green branch wire connects to earth (safety) ground
Line and Neutral to the connector on power supply board marked [L, N] respectively
(Fig. 1, pg. 4, Fig. 2, pg. 5).
Use 18 AWG or larger for all power connections (Battery, DC output).
Use 22 AWG to 18 AWG for power-limited circuits (AC Fail/Low Battery reporting).
4. Slide [Power ON/OFF] switch to ON position.
- 2 -
Accessory
Power Number
Distribution of
Module(s) Outputs
- 1
PD4
4
PD4CB
PD8
8
PD8CB
PD16W
16
PD16WCB

Specifications:

Installation Instructions:

Overview:

– –
– –
–
P
–
P
–
P
–
P
–
P
–
P
Supervision (select models):
• AC fail supervision (form "C" contacts).
• Battery presence and low battery supervision
(form "C" contacts).
Visual Indicators:
• AC input and DC output LED indicators.
Electrical:
• Operating temperature: 0ºC to 49ºC ambient.
• BTU/Hr. (approx.): 122 BTU/Hr.
• System AC input VA requirement: 310.5VA.
Mechanical:
• Enclosure Dimensions (H x W x D approx.):
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm)
- Accommodates up to
two (2)12VDC/7AH batteries.
Ground
Lug
.
220VAC
power mains
AC FAIL
220VAC
50/60Hz
Current
Supervised
–
10A
3.5A
2.5A
3.5A
P
2.5A
3.5A
2.5A
Power Supply
Board
24VDC
Total
Input Output
Current
(A) (A)
1.8A 10A
SMP10C24X220 Series
