SMP5CTX Series Power Supply Configuration Reference Chart:
SMP5CTX
SMP5PMCTX
SMP5PMCTXX
SMP5PMP4
SMP5PMP4CB
SMP5PMP8
SMP5PMP8CB
SMP5PMP16
SMP5PMP16CB

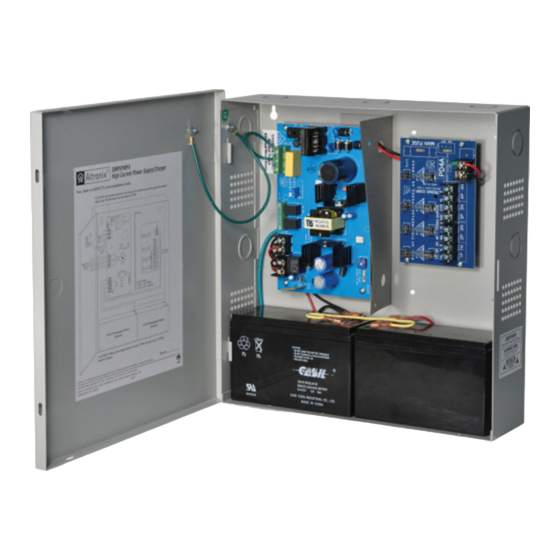

These units will convert a 115VAC or 230VAC, 50Hz/60Hz input, into a regulated 12VDC or 24VDC output up to 4
amps of continuous load current (see specifications).
• Universal 115/230VAC input.
• Maximum charge current .5 amp.
• Filtered and electronically regulated outputs.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when
AC fails (zero voltage drop).
• AC input and DC output LED indicators.
Power Supply Voltage Output Specifications: *
Output VDC
12VDC
SW1 - Closed (Fig. 1b, pg. 3)
24VDC
SW1 - Open (Fig. 1b, pg. 3)
*Specified at 25˚ C ambient.
Installation Instructions:
The unit should be installed in accordance with The National Electrical Code and all applicable Local Regulations.
1. Mount the unit in desired location.
2. Set SW1 on the power supply board to the desired DC output voltage
(Power Supply Voltage Output Specification Chart).
3. Connect AC power to terminals marked [L & N], connect ground to terminal marked [G] (if used).
Use 18 AWG or larger for all power connections (Battery, DC output).
Use 22 AWG to 18 AWG for power limited circuits (AC Fail/Low Battery reporting).
SMP5CTX Series
-
1
-
-
1
-
-
1
-
PD4
4
x
PD4CB
4
-
PD8
8
x
PD8CB
8
-
PD16W
16
x
PD16WCB 16
-
Switch Position
-
-
-
.95 / .5
-
-
x
.95 / .5
-
-
x
.95 / .5
-
3.5
x
.95 / .5
x
2.5
x
.95 / .5
-
3.5
x
.95 / .5
x
2.5
x
.95 / .5
-
3.5
x
.95 / .5
x
2.5
x
.95 / .5
Overview:
Specifications:
• Short circuit and thermal overload protection.
• Complete with power supply, power distribution module
(when applicable), enclosure, cam lock & battery leads.
• Power on-off switch.
Supervised Models Only:
• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
Max. Load DC
4 amp
4 amp
- 1 -
4
13.5"H x 13"W x 3.25"D
4
13.5"H x 13"W x 3.25"D
4
15.5"H x 12"W x 4.5"D
4
13.5"H x 13"W x 3.25"D
4
13.5"H x 13"W x 3.25"D
4
13.5"H x 13"W x 3.25"D
4
13.5"H x 13"W x 3.25"D
4
13.5"H x 13"W x 3.25"D
4
13.5"H x 13"W x 3.25"D
