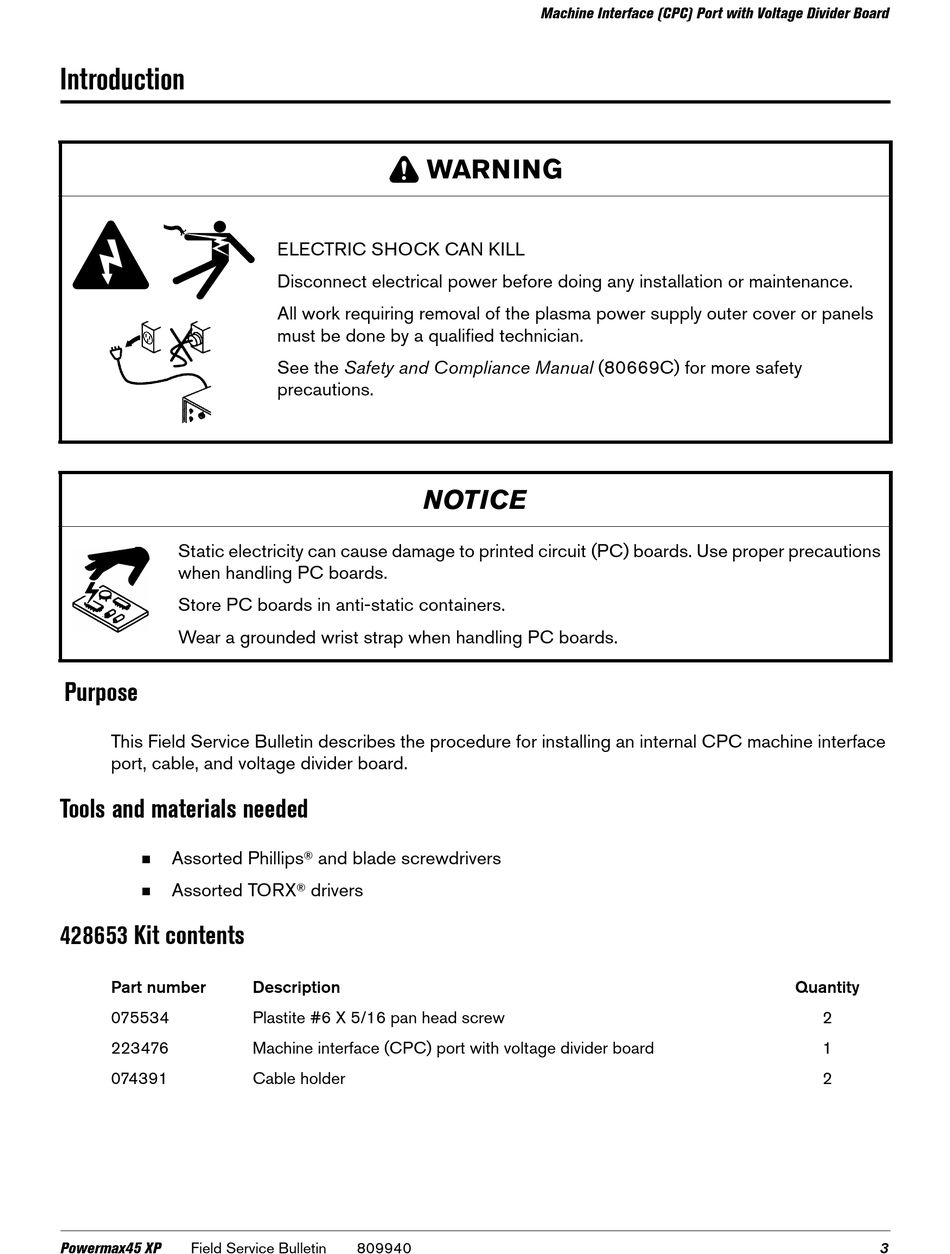

Hypertherm Powermax45 XP Field Service Bulletin page 3

Introduction
Static electricity can cause damage to printed circuit (PC) boards. Use proper precautions
when handling PC boards.
Store PC boards in anti-static containers.
Wear a grounded wrist strap when handling PC boards.
Purpose
This Field Service Bulletin describes the procedure for installing an internal CPC machine interface
port, cable, and voltage divider board.
Tools and materials needed
Assorted Phillips

Assorted TORX

428653 Kit contents
Part number
075534
223476
074391
Powermax45 XP Field Service Bulletin
WARNING
ELECTRIC SHOCK CAN KILL
Disconnect electrical power before doing any installation or maintenance.
All work requiring removal of the plasma power supply outer cover or panels
must be done by a qualified technician.
See the Safety and Compliance Manual (80669C) for more safety
precautions.
NOTICE
and blade screwdrivers
®
drivers
®
Description
Plastite #6 X 5/16 pan head screw
Machine interface (CPC) port with voltage divider board
Cable holder
809940
Machine Interface (CPC) Port with Voltage Divider Board
