TP cable termination

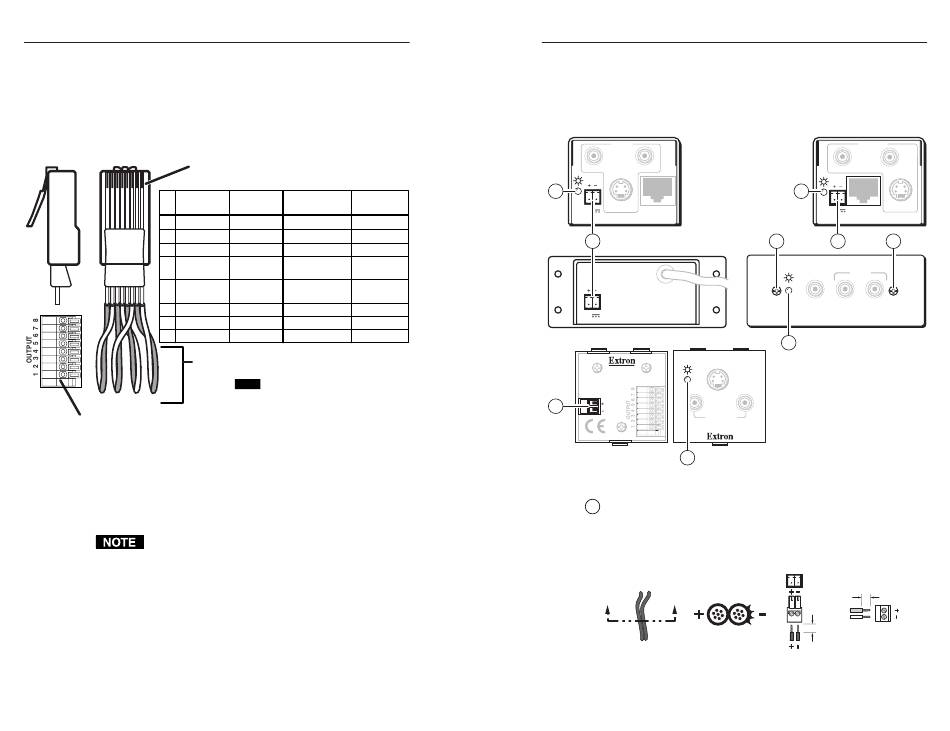

Figure 2-12 details the recommended termination of TP cables
with RJ-45 or spring force connectors in accordance with the
TIA/EIA T 568A or TIA/EIA T 568B wiring standards. You can
use either standard, but ensure that you use the same standard
on both cable ends.
Side Clip Down
Pins 1 2 3 4 5 6 7 8
RJ-45
Connector
568 A
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
1 2 3 4 5 6 7 8
5 White-blue
6 Orange
7 White-brown
8 Brown
Twisted
Pairs
7&8
1&2 3&6 4&5
Spring Force Connector
Figure 2-12 — TP cable termination
When you are using Enhanced Skew-Free™ A/V cable, use
only the TIA/EIA T 568A standard.
The details in the table shown on figure 2-12 are correct for the
all models, whether the cable is installed in an RJ-45 connector
or a spring force wire connector (figure 2-11).
Enhanced Skew-free A/V cable is not recommended for
Ethernet/LAN applications.
This cable is specially designed for compatibility with
Extron's Twisted Pair products, wired using the
TIA/EIA 568 A standard.
The green, brown, and blue pairs of this cable have
virtually identical lengths and should be used to
transmit the video signals.
The orange pair of this cable has a different length and
should not be used to transmit the video signals.
www.camboard.de
®
2-12 VersaTools MTP Series • Installation
568 B Composite video S-video MTP
Wire color MTP signal signal
White-orange Video+ Luma (Y)+
Orange Video- Luma (Y)-
White-green Power+ Power+
Chroma (C) &
Blue Audio left+
audio left+
Chroma (C) &
White-blue Audio left-
audio left-
Green Power- Power-
White-brown Audio right + Audio right+
Brown Audio right - Audio right-
NOTE If you are using Enhanced Skew-Free™
A/V cable, use the TIA/EIA T 568A
standard only.
Tel. 07131 911201
Fax 07131 911203
CAMBOARD Electronics
Power connection (all models) and
panel screws (AAP models)
MTP Transmitters
8
12V
0.5a MAX
12V
0.5a MAX
MTP 45 Transmitters
7
7
See figure 2-13 to identify the power connections and indicators
and to identify the panel screws.
INPUT
L R
S-VIDEO OUTPUT
MTP T SV A RCA
7
MTP AAP Transmitters
S-VIDEO
MTP T SVA 45
12 VDC
.5A MAX.
L R
AUDIO INPUT
8
Figure 2-13 — Power connections and indicators
Power connector— Plug the external 12 VDC power supply into
this 2-pole captive screw connector or direct insertion connector
on either the transmitter or the receiver. The device connected
to the power supply, in turn, provides power to its counterpart.
Figure 2-14 shows how to wire the connectors.
A A
SECTION A–A
Power Supply
Output Cord
Figure 2-14 — Power connector wiring
ce-info@camboard.de
®
VersaTools MTP Series • Installation
MTP Receivers
OUTPUT
L R
8
S-VIDEO
INPUT
12V
0.5a MAX
MTP R SV A RCA
9 7 9
VIDEO
AUDIO
L R
MTP T AV AAP
8
0.2"
(5 mm)
+ 12 VDC
– .5 A MAX.
0.2" (5 mm)
Captive Screw Direct Insertion
Connector Connector
2-13
