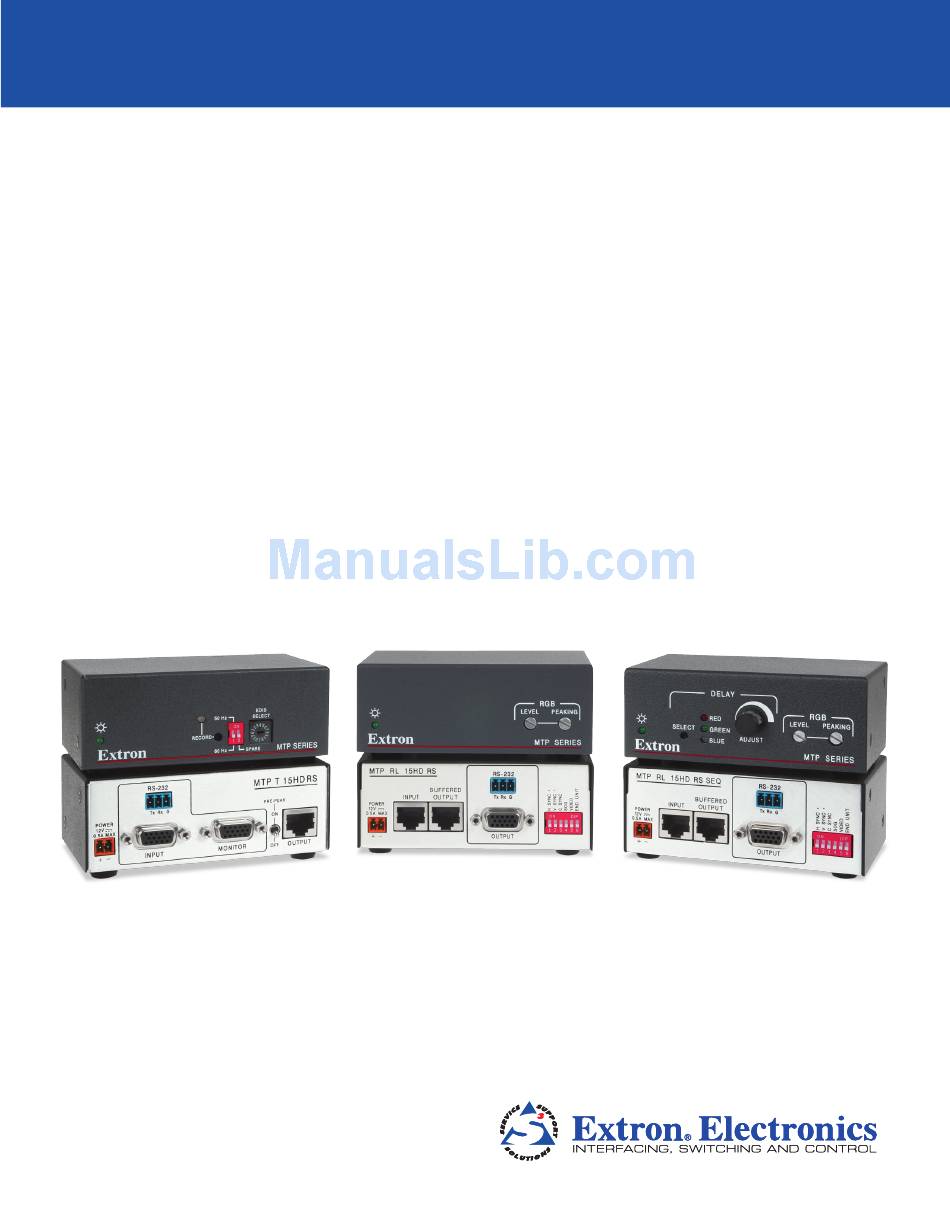

- Page 1 User Guide Twisted Pair MTP 15HD RS Series High Resolution Video and Serial Link MTP Transmitters and Receivers 68-2205-01 Rev. A 09 12...
- Page 2 Safety Instructions • English Warning Power sources • This equipment should be operated only from the power source indicated on the product. This This symbol is intended to alert the user of important operating and equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third maintenance (servicing) instructions in the literature provided with the (grounding) pin is a safety feature, do not attempt to bypass or disable it.
- Page 3 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Contents Introduction ..........About this Guide ..........1 About the MTP Transmitters and Receivers ..1 Twisted Pair Cable Advantages ..... 2 Transmission Distance ........3 Installation and Operation ......... Installation and Operation Overview ....5 Pre-Installation — RS-232 Jumper ....5 Installation ........... -
Page 5: Introduction
About the MTP Transmitters and Receivers The Extron MTP T 15HD RS transmitter and MTP RL 15HD RS and MTP RL 15HD RS SEQ receivers are a system for long-distance distribution of VGA or other high resolution video and RS-232 serial communications. -
Page 6: Twisted Pair Cable Advantages
The RS-232 portion of the twisted pair link: • Can be bidirectional in a one-receiver system; that is, the receiver can receive commands from the transmitter and pass RS-232 responses to the transmitter. NOTE: By default, the RS-232 portion of the twisted pair link is unidirectional only from the transmitter to the receiver. -
Page 7: Transmission Distance
Transmission Distance The maximum distance is determined by the frequency and resolution of the signal that table on page 4 specifies the recommended maximum is input to the transmitter. The transmission distances and transmitter Pre-Peak switch positions (see item on page 9) using Extron Enhanced Skew-Free AV UTP cable or CAT 5, 5e, or 6 cable, terminated with RJ-45 connectors. - Page 8 Video Pre-Peak Pre-Peak Max. distance Max. distance Format (high quality) (variable quality) Composite, 800' 1000' S-video, (245 m) (300 m) Component <300' >350' 700' 750' 640 x 480 (90 m) (105 m) (215 m) (240 m) <300' >350' 550' 650' 800 x 600 (90 m) (105 m)
-
Page 9: Installation And Operation
Installation and Operation This section provides information on: • Installation and Operation Overview • Front Panel Features • Transmitter Rear Panel Features • Receiver Rear Panel Features Installation and Operation Overview Follow the steps below to properly install and operate any of the Extron MTP 15HD RS transmitters and receivers. -
Page 10: Front Panel Features
Front Panel Features See figure 2 below to identify the front panel features on the transmitter and receiver. MTP T 15HD RS Transmitter 50 Hz EDID SELECT RECORD 60 Hz SPARE M T P S E R I E S... - Page 11 EDID select rotary switch — The rotary switch is used to select specific pre- programmed or user-recorded EDID settings. Position 0 of this 16 position rotary switch is used to select the user recorded EDID. Position F passes the EDID from the display connected to the loop-out back to the input.
-
Page 12: Transmitter Rear Panel Features
Transmitter Rear Panel Features Figure 3 shows an MTP T 15HD RS transmitter, which has all of the connectors and other features that are on either transmitter in the MTP 15HD RS series. M TP T 1 5HD RS RS-232... - Page 13 Pre-Peak switch — The Pre-Peak switch alters the twisted pair signal output to correct table on page 4 for suggested switch settings based on the for long cable runs. See the transmitted video format and transmission distance. NOTES: • Use the internal jumpers to enable bidirectional communication (see "Pre-Installation —...
-
Page 14: Receiver Rear Panel Features
Receiver Rear Panel Features Figure 6 shows an MTP RL 15HD RS receiver, which has all of the connectors and other features that are on either receiver in the MTP 15HD RS series. M T P R L 1 5 H D R S RS-232 BUFFERED Tx Rx... - Page 15 DIP switches (RL receivers only) — A 6-pole DIP switch is used to configure the features of the MTP receivers. Horizontal sync (H Sync +) switch — Set this switch On (up) for positive • • horizontal sync or Off (down) for negative sync. Vertical sync (V Sync +) switch —...
-
Page 16: Power Supply Wiring
Power Supply Wiring Figure 8 below shows how to wire the connector. ATTENTION: • Potential damage to property. Power supply voltage polarity is critical. Incorrect voltage polarity can damage the power supply and the transmitter or receiver. Identify the power cord negative lead by the ridges on the side of the cord. -
Page 17: Twisted Pair Cable Termination
As an alternative, an Extron PS 124 Universal 12 VDC Power Supply (part number 60-1022-01) can power multiple MTPs or other Extron 12 VDC devices using only one AC power connector. Twisted Pair Cable Termination Figure 9 details the recommended termination of twisted pair cables with RJ-45 connectors in accordance with the TIA/EIA T568A or TIA/EIA T568B wiring standards. -
Page 18: Skew Delay Compensation
Skew Delay Compensation CAT 5, 5e, and 6 cable can lead to registration errors between the Red, Green, and Blue video signals. Pair skew can be measured with test equipment or identified by viewing a crosshatch test pattern with a critical eye to determine if either the Red, Green, or Blue video image leads (appears to the left of) the other two video images. -
Page 19: Edid Configuration
EDID Configuration The MTP 15HD RS transmitter can either record EDID from a display device, or a pre-programmed EDID can be selected using the rotary and DIP switches. Recording a Display EDID Turn the rotary switch to position 0. NOTE: The vertical frequency DIP switch has no effect in this mode. -
Page 20: Reference Information
Part Number, Optional Accessories, Cables, and Connectors Part Numbers, Optional Accessories, Cables, and Connectors Part Numbers MTP Transmitter and Receivers Part Number MTP T 15HD RS transmitter 60-1281-01 or MTP RL 15HD RS receiver 60-735-01 or MTP RL 15HD RS SEQ receiver... -
Page 21: Cables
Cables NOTE: Extron Enhanced Skew-Free AV UTP cables are not recommended for Ethernet or LAN applications. Description Part Number VGA connector cable 26-238-xx SYM BNC Female Mini High Resolution cable 21-251-xx Extron Enhanced Skew-Free AV UTP cable (cut, various lengths) 26-569-xx Extron Enhanced Skew-Free AV UTP cable 1000' (bulk) (Non-Plenum) 22-141-03... -
Page 22: Mounting
Mounting This section outlines the various mounting options available for the MTP 15HD RS Series transmitters and receivers: • Tabletop Placement • Under-Desk and Furniture Mounting • Rack Mounting • Projector Mounting Tabletop Placement Attach the four provided rubber feet to the bottom of the unit and place it in any convenient location. -
